4.C-AXIS CUTTING A SUPPLEMENT B-63344EN/02

- 220 -

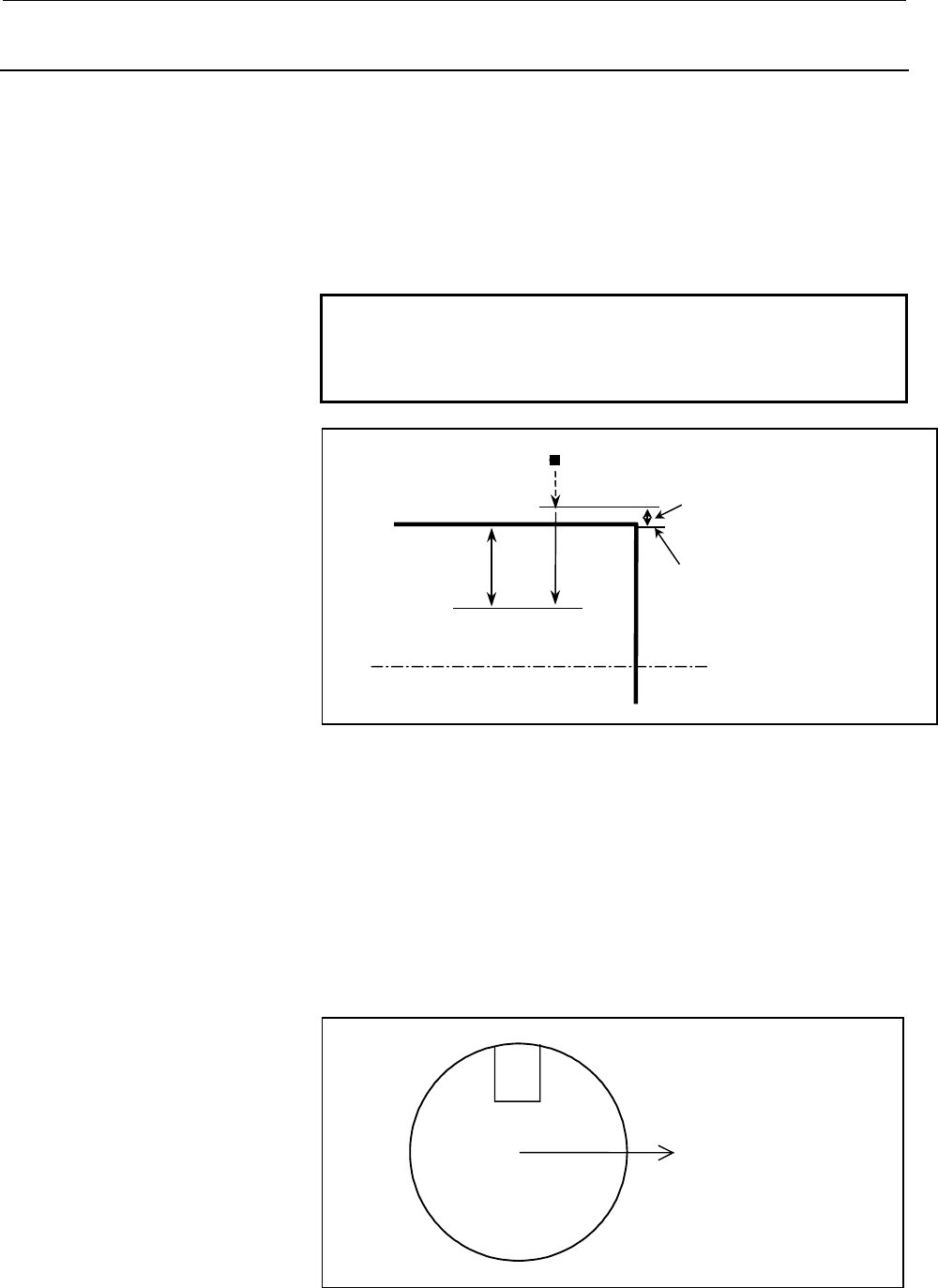

4.2.3 Detail of Figure Data

(1) "Evenly spaced" figure data

START X

X coordinate of the hole position (common)

START Z

Z coordinate of the hole start point (common)

START C

C coordinate of the position of the first hole

NOTE

A cutting motion in drilling is started the amount of

drilling clearance (parameter No. 9855 (GRDLCL))

before the start point.

Drilling clearance

(Parameter 9855: GRDCL)

Depth of hole

(radius value)

Cutting

start point

X coordinate value of cutting

tt it

DEPTH D

Depth of hole (radius: common)

ANGLE A

Angle indicating the hole position spacing

The positive or negative direction can be specified.

H.NUM N

Total number of holes

LST.ANG Q

C coordinate of the position of the last hole

1. When no data is input for ANGLE(A), H.NUM(N), and

LST.ANG(Q)

Example) C = 90.000

C = 0
