Manual Guide 16i/18i/21i - TA Operators manual Page 243

Operators manual
B-63344EN/02 SUPPLEMENT 4.C-AXIS CUTTING A
- 231 -
2. When no data is input for ANGLE(A), a value of 2 or more is
input for H.NUM(N), and data is input for LST.ANG(Q)

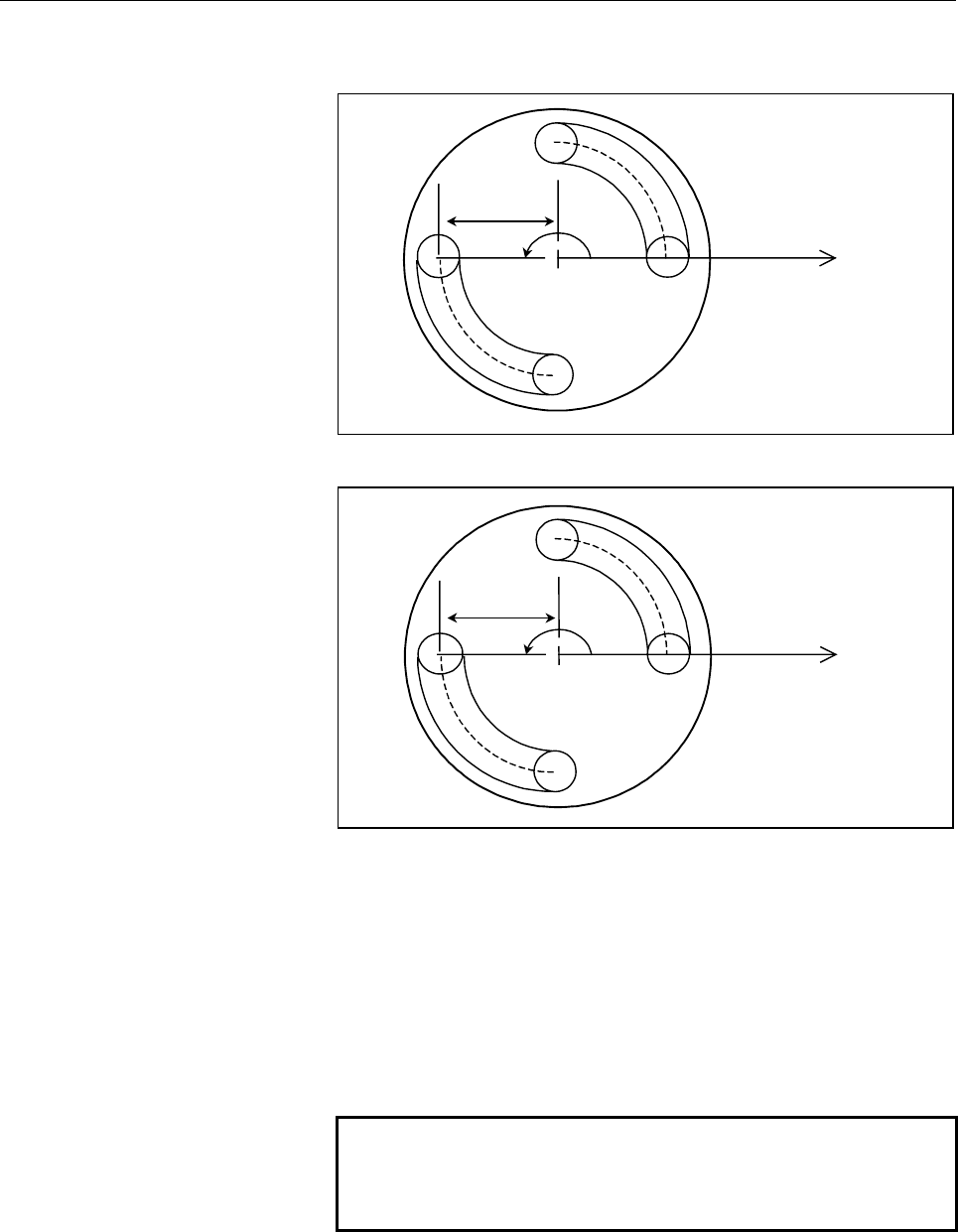

Example) X
= 2 r
C = 0.000
N = 2
C = 0
r
Q
Q = 180.000
Input a diameter for START X.
3. When data is input for ANGLE(A), a value of 2 or more is input
for H.NUM(N), and no data is input for LST.ANG(Q)
Exampke) X = 2r
C = 0.000
A = 180.000
C = 0
r
A
N = 2
Input a diameter for START X.
(2) "Irregular" figure data
Up to two C-axis end face grooves can be specified at any positions
with any depths.
ST.POS n X
X coordinate of the start point of the nth groove
ST.POS n Z
Z coordinate of the start point of the nth groove
ST.POS n C
C coordinate of the start point of the nth groove
NOTE
A cutting motion in grooving is started the amount
of grooving clearance (parameter No. 9855
(GRDCL)) before the start point.
