Manual Guide 16i/18i/21i - TA Operators manual Page 133

Operators manual
B-63343EN/02 TYPES OF CYCLE MOTIONS 2.BAR MACHINING (FINISHING)
- 121 -

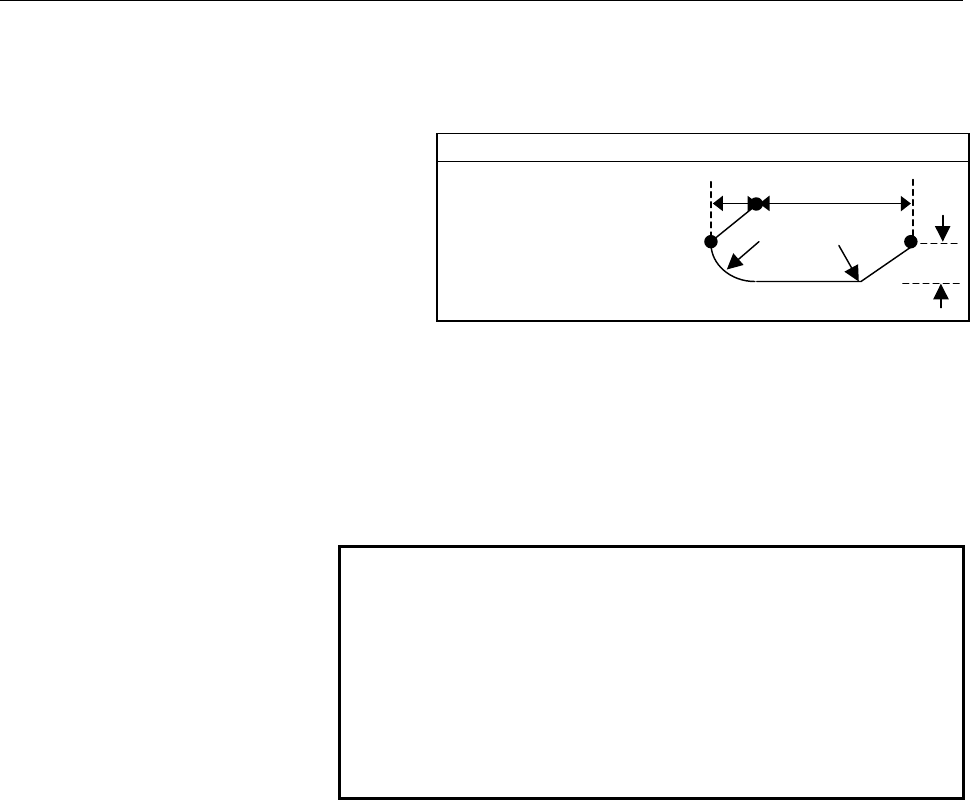

(4) DIN509-F
By pushing a [DIN509], neckingfor grinding of DIN509-E type can be
selected.
WIDTH
Width of necking figure DIN509-F
DEPTH
Depth of necking figure.
RADIUS
Corner-R radius of necking figure.
By pushing a INSERT after inputting the above data according to the
DIN509-F standard, this necking figure is converted to the group of
necessary figures, lines and corner-R, and these generated figures are
displayed in a figure window.
NOTE
1 When inputting this necking figure, the end point
coordinate (X, Z) of the figure just prior to it must be
decided already. If it remains the pending status,
warning message is displayed when inserting this
necking figure.
2 After inputting a necking figure and being converted
to several lines and corner-R figures, only figure
data of them can be modified.
WIDTH WT=
DEPTH DT=
RADIUS R=
RELIEF AMNT W1=
R
CONTOUR FORM
(
DIN509-F
)
R
WT
DT
