B-63344EN/02 OPERATION 3.DESCRIPTION OF COORDINATE

- 21 -

At the time of changing workpiece and its length is changed, instead

of measuring the above geometry offset value for all tools, Workpiece

Shift offset compensation is used for shifting the workpiece

coordinate origin point.

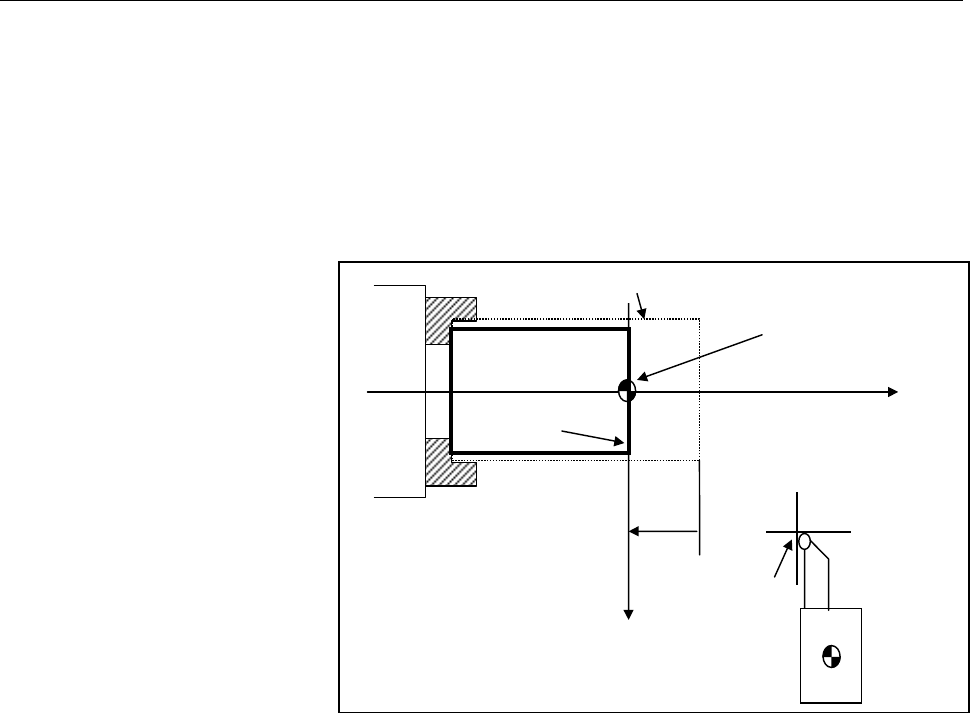

In the following sample drawing, WSF

means the distance with sigh

between the end face of the old workpiece and the new one. This

distance data is set into the Z-workpiece shift offset amount.

By using the Set-up Guidance, described later in Chapter 9, workpiece

shift amount are automatically set.

Spindle

Chuck

WSF

Old work-piece

New workpiece

Imaginary nose

Machine

zero point

New origin of the

workpiece coordinate
