6.CENTER DRILLING / DRILLING / REAMING / BORING / TAPPING TYPES OF CYCLE MOTIONS B-63343EN/02

- 148 -

(3) REAMING

TOOL NO

Number of tool used for reaming

FEED/MIN

Feed amount in reaming, and it can be changed to

FEED/REV by pushing a [FEED/REV].

REV/MIN

Spindle rotating speed.

S-DIRECT

Spindle rotating direction. Select from [NORMAL] and

[REVERS].

HOLE DIA

Hole diameter or tool nominal diameter.

This datum is used for only animated drawing.

START Z

Absolute Z-coordinate of hole start point

DEPTH

Depth of hole.

By pushing [END Z], absolute Z-coordinate of hole end

point can be selected.

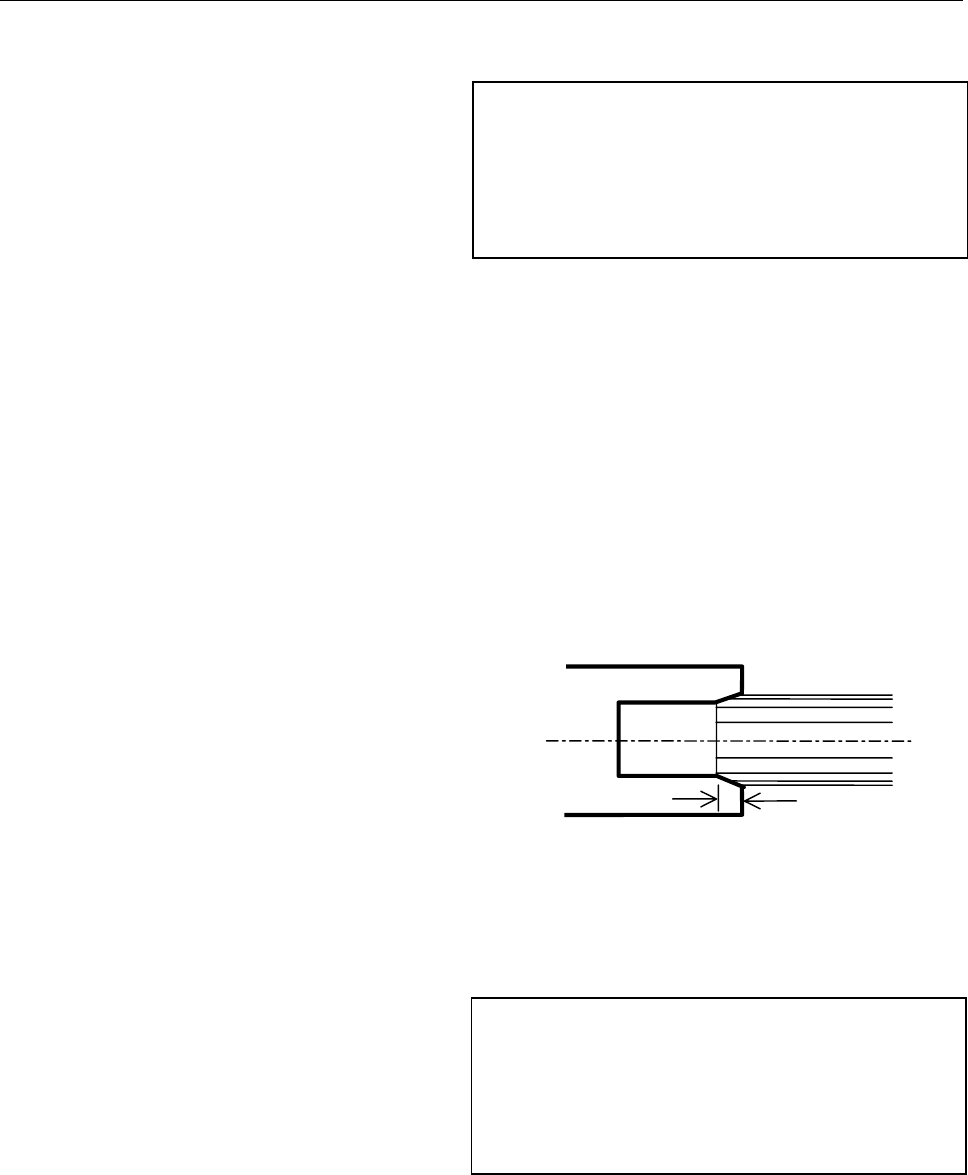

CHAMF-LNG

Cutting-lip length of a reamer at cutting start (parameter

9054 : RIMKLN)

DWELL

Dwell time at hole end point

CUT ST X

X-coordinate of a point where machining starts

CUT ST Z

Z-coordinate of a point where machining starts

(4) BORING

TOOL NUM

Number of tool used for boring

FEED/MIN

Feed amount in boring, and it can be changed to

FEED/REV by pushing a [FEED/REV].

REV/MIN

Spindle rotating speed.

S-DIRECT

Spindle rotating direction. Select from [NORMAL] and

[REVERS].

HOLE DIA

Hole diameter of boring cutting

BORING

HOLE DIA =

START Z =

DEPTH =

SHIFT =

DWELL =

TOOL NUM =

FEED/MIN =

REV/MIN =

S-DIRECT =

CUT ST X =

CUT ST Z =

REAMING

HOLE DIA =

START Z =

DEPTH =

CHAMF-LNG =

DWELL =

TOOL NUM =

FEED/MIN =

REV/MIN =

S-DIRECT =

CUT ST X =

CUT ST Z

=

CHAMF-LNG
