Series 15i/150i - Model A Maintenance manual Page 193

Maintenance manual
B–63325EN/03
2. 15i SERIES HARDWARE
173

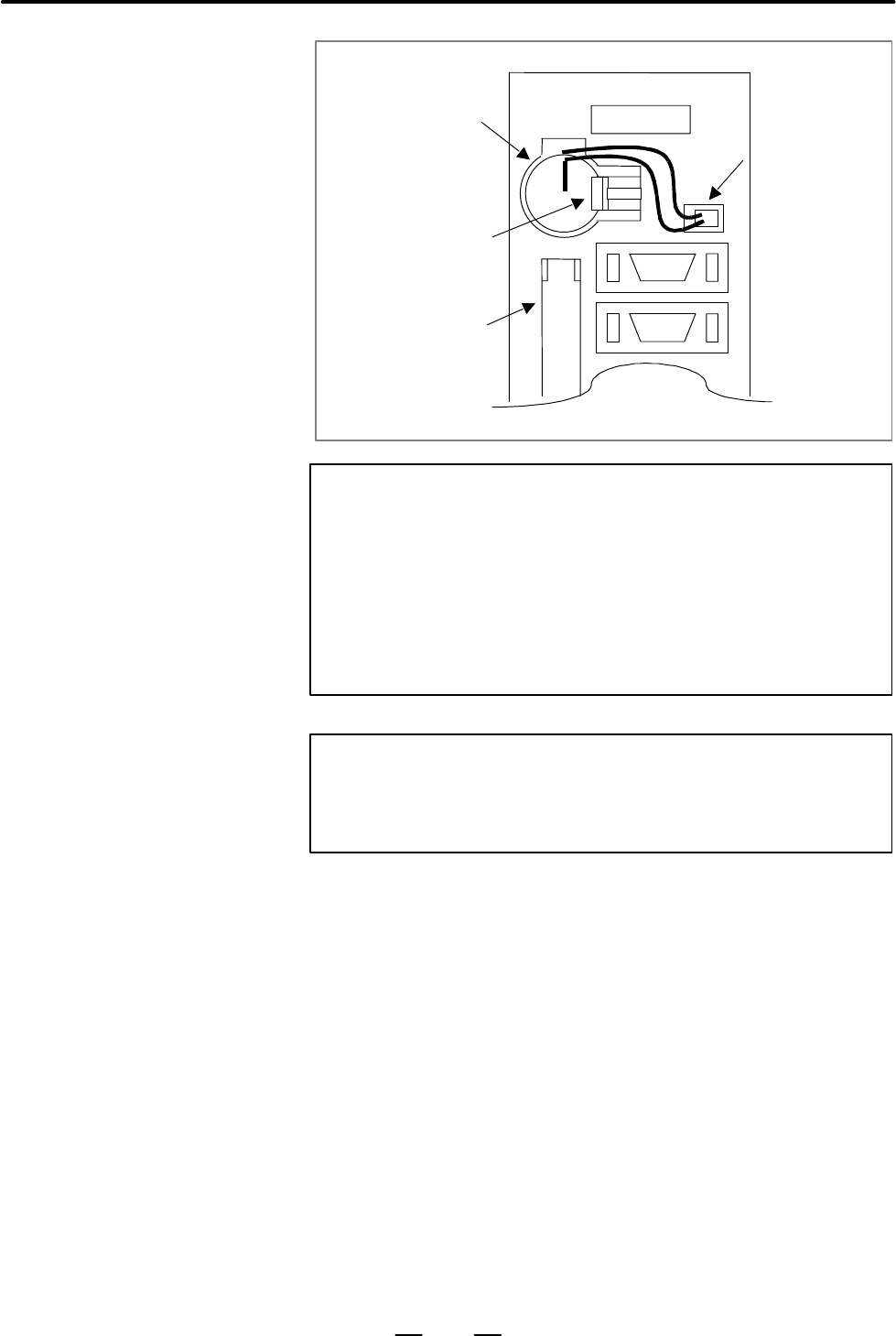

Battery
connector
Lithium battery
Battery latch
Memory card
connector
Main board
BAT1
CAUTION
Steps (3) to (5) should be completed within 30 minutes.
Do not leave the control unit without a battery for any longer
than the specified period. Otherwise, the contents of
memory may be lost.
If, for some reason, steps (3) to (5) cannot be completed
within 30 minutes, save all contents of the CMOS memory
to the memory card beforehand. Thus, if the contents of the
CMOS memory are lost, they can be restored easily.
WARNING
Using other than the recommended battery may result in the
battery exploding. Replace the battery only with the
specified battery (A02B–0200–K102).
Dispose of used batteries as described below.
(1) Small quantities (several batteries)
Discharge the batteries and dispose of them as ordinary unburnable
waste.
(2) Large quantities
Contact FANUC for the method of disposal.
