1. SCREEN INDICATIONS AND OPERATIONS
B–63325EN/03
26
Press the [PARAMETER] soft key on the waveform–diagnosis graphic
screen to show the waveform–diagnosis parameter screen.
The waveform–diagnosis parameter screen provides the settings of
various parameters related to data tracing and waveform indications.
The waveform–diagnosis parameter screen has three pages.

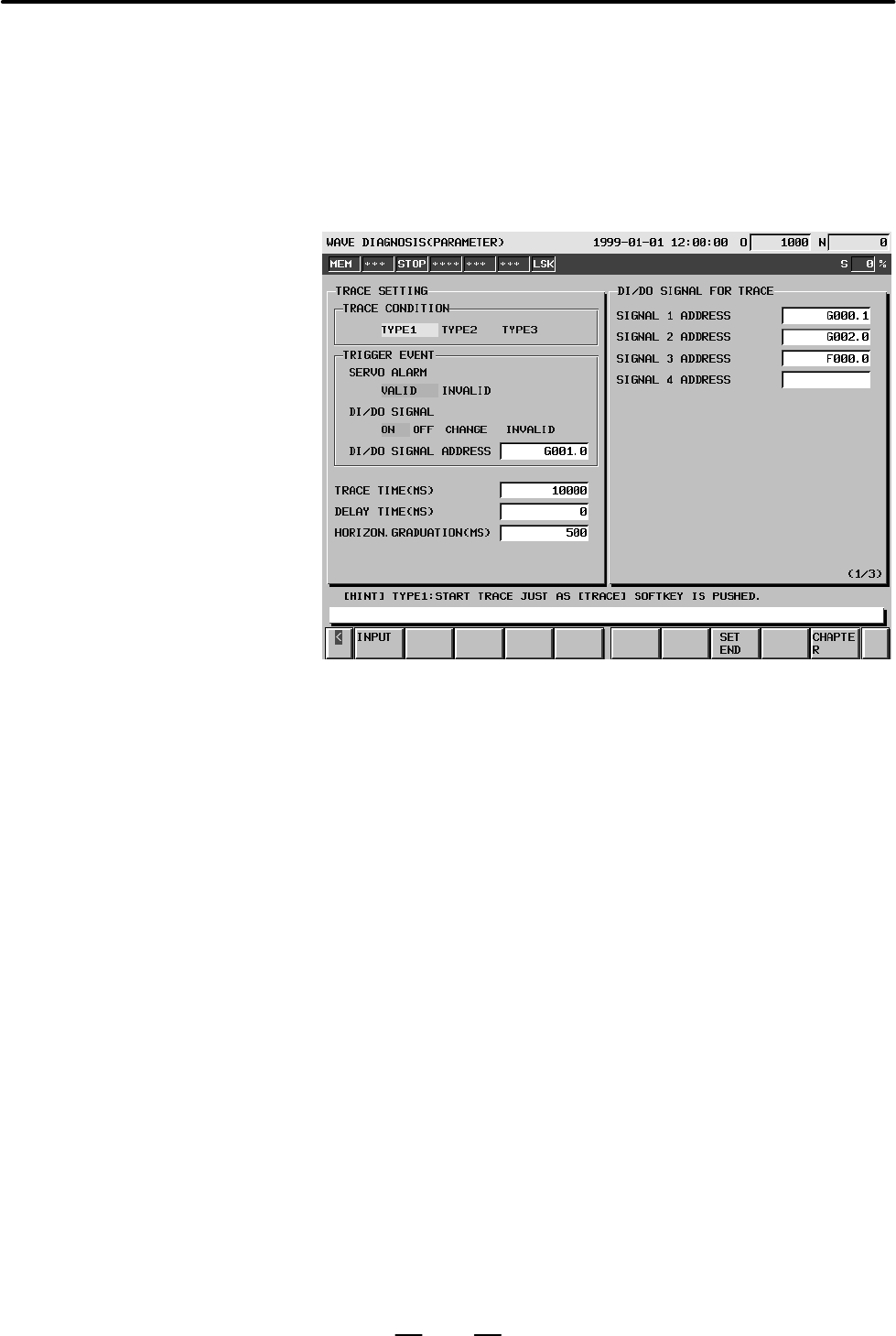

Fig. 1.5 (b) Waveform–diagnosis parameter screen (Page 1)
On Page 1 of the waveform–diagnosis parameter screen, set parameters
common to the entire diagnosis, such as a tracing condition, a trigger
event, and a tracing time.
Also set the addresses of machine signals to be traced, on Page 1.
Waveform–diagnosis
parameter screen
D Page 1 of
waveform–diagnosis
parameter screen
Previous page
Next page
