Series 15i/150i - Model A Maintenance manual Page 336

Maintenance manual
5. DIGITAL SERVO
B–63325EN/03
316
The FSSB setting screen displays FSSB–based amplifier and axis
information. This information can also be specified by the operator.
1 Press function key
SYSTEM
.
2 To display [FSSB], press soft key [CHAPTER] several times.
3 Pressing soft key [FSSB] causes the AMP SET screen (or the
previously selected FSSB setting screen) to appear.
The FSSB setting screens include AMP SET, AXIS SET, and AMP
MAINTENANCE. To select these screens, use the page switching keys
PAGE
PAGE
.

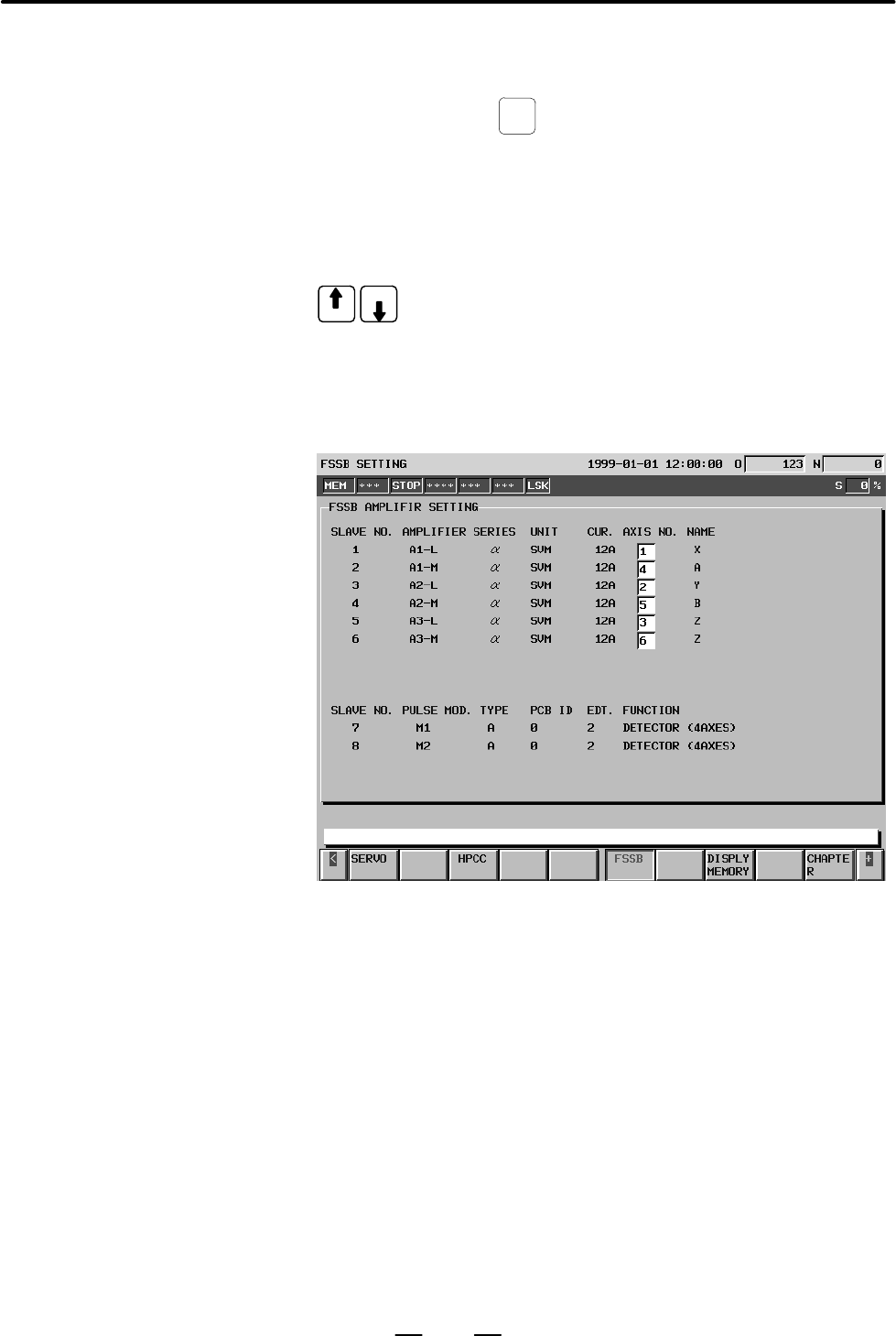

The amplifier setting screen consists of two sections: the first section
displays slave information about the amplifiers, while the second section
displays slave information about the pulse modules. Specify the number
of the controlled axis to be assigned to each amplifier on this screen.
Fig. 5.2 (d)
The amplifier setting screen consists of the following items:
D SLAVE NO.
Each slave unit connected via the FSSB has a slave number, with the
slave unit nearest to the CNC being number 1. Up to ten slave units
(up to eight amplifiers and up to two pulse modules) can be connected.
For a system having eleven or more controlled axes, up to 30 slave
units including up to 24 amplifiers and up to six pulse modules can be
connected.
D AMP
The amplifier type display consists of the letter A, which stands for
“amplifier,” a number that indicates the placing of the amplifier, as
counted from that nearest to the CNC, and a letter such as L (first axis),
M (second axis), or N (third axis) indicating the placing of the axis in
the amplifier.
Displaying FSSB data
D Amplifier setting screen
