Series 15i/150i - Model A Maintenance manual Page 224

Maintenance manual
2. 15i SERIES HARDWARE
B–63325EN/03
204

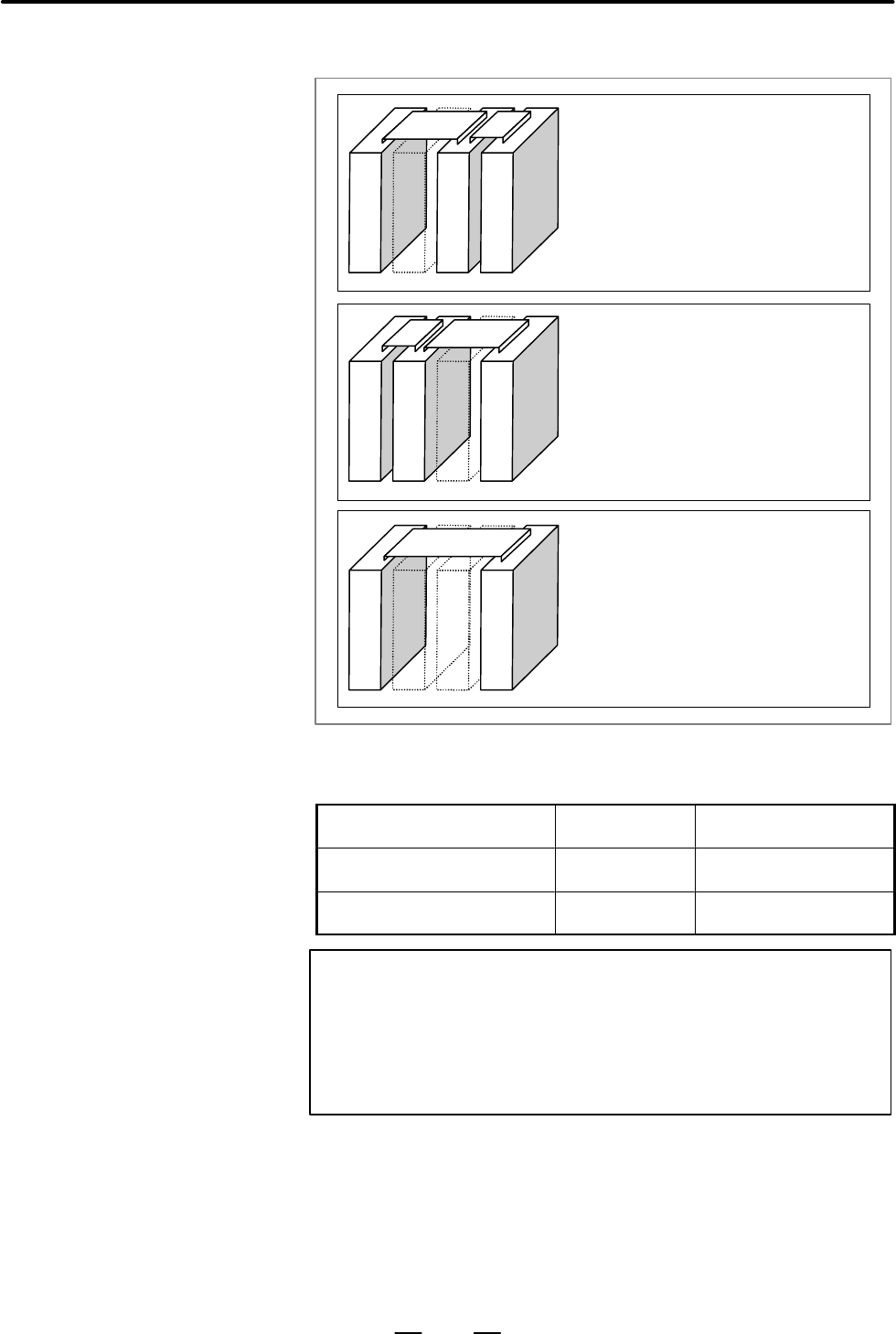

Sample settings
(Expansion modules 1 and 2 are not
connected.)
Set the rotary switch of expansion module 3
to 2.
Basic module
Expansion module 1
Expansion module 2
Expansion module 3
Basic module
Expansion module 1
Expansion module 2
Expansion module 3
Basic module
Expansion module 1
Expansion module 2
Expansion module 3
(Expansion module 1 is not connected.)
Set the rotary switch of expansion module 2
to 1. Leave the rotary switch of expansion
module 3 set to 0.
(Expansion module 2 is not connected.)
Set the rotary switch of expansion module 3
to 1. Leave the rotary switch of expansion
module 1 set to 0.
This feature has not always been incorporated. The incorporation timing
differs depending on the module, as listed below:
Expansion module B
(DI/DO = 24/16, without MPG I/F)
A03B–0815–C003 Starting with those models
delivered in June, 1998
Expansion module C
(DO = 16, 2A output)
A03B–0815–C004 Starting with those models
delivered in August, 1998
Expansion module D
(analog input)
A03B–0815–C005 Starting with those models
delivered in August, 1998
NOTE
Like the modules described above, expansion module A
(A03B–0815–C002: DI/DO = 24/16, with MPG I/F) is
provided with a rotary switch. However, the setting need not
be changed because expansion module A is always
connected as expansion module 1.
