Series 15i/150i - Model A Maintenance manual Page 291

Maintenance manual
B–63325EN/03
3. DATA INPUT/OUTPUT
271
The memory card screen provides the functions for using a memory card
as an external memory unit and a variety of utilities.
1 Output data such as part programs and parameters to a memory card
2 Input data such as part programs and parameters from a memory card
3 List the files on a memory card
Follow either of the procedures described below to display the memory
card screen.
Method 1
(1)Press the
OFFSET
SETTING
function key several times, until the memory card
screen appears.
Method 2
(1)Press the
OFFSET
SETTING
function key.
(2)Click the [MEMCARD] soft key.

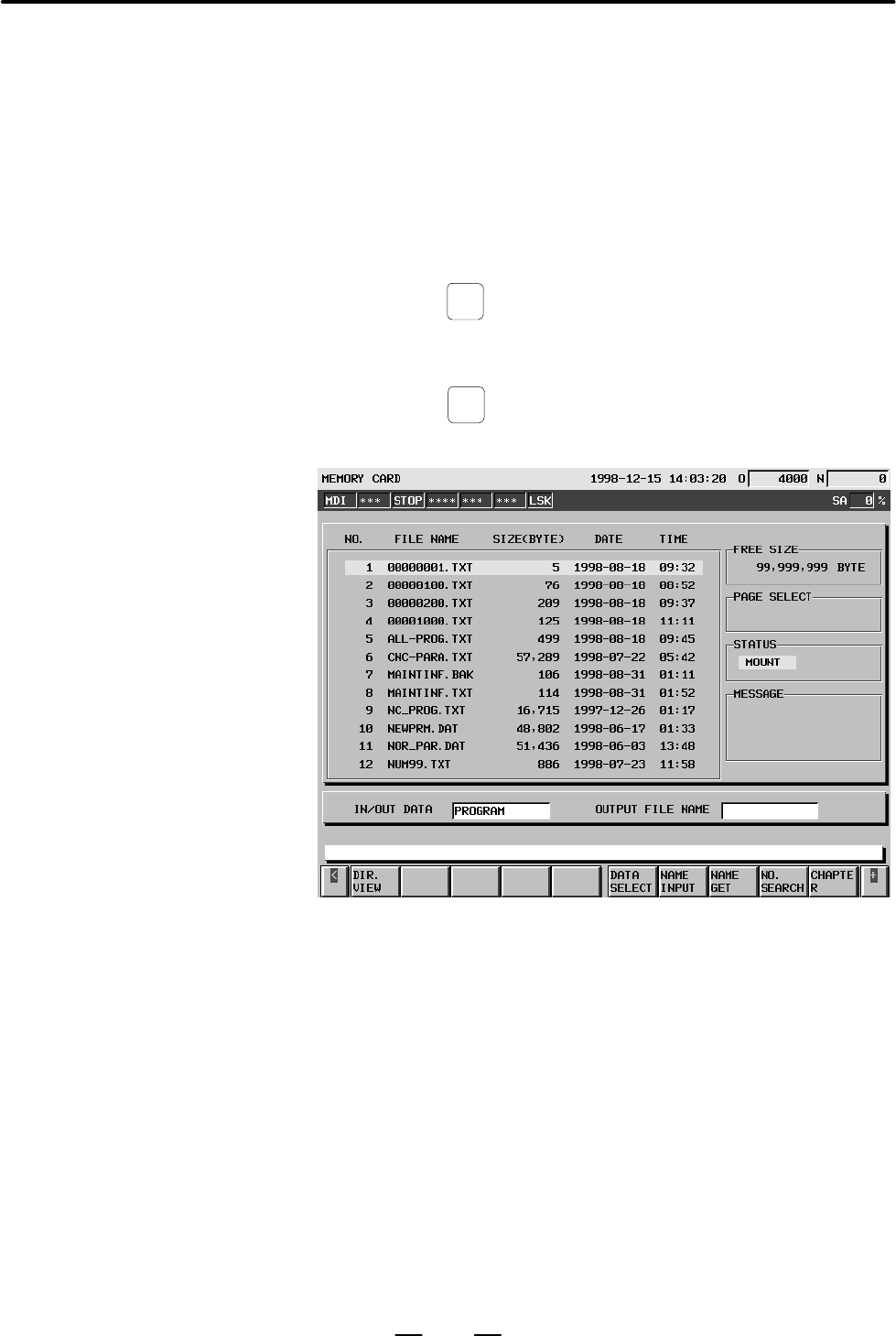

Fig. 3.4 Memory card screen
The files contained on the inserted memory card can be listed. Up to 12
files can be listed per page.
NO.: File number
FILE NAME: File name
SIZE: File size (in bytes)
DATE: Date on which the file was created
TIME: Time at which the file was created
The size of the free space on the inserted memory card is displayed (in
bytes). If the size exceeds 99999999 bytes, ******** is displayed.
Page information for the file list is displayed. If the list cannot be
displayed on a single page, “Prev Page” and “Next Page” are displayed
in PAGE SELECT to indicate that there are multiple pages.
3.4
MEMORY CARD
SCREEN
Display
D Listing the files on a
memory card
D FREE SIZE
D PAGE SELECT
Previous page
Next page
