Series 15i/150i - Model A Maintenance manual Page 201

Maintenance manual
B–63325EN/03
2. 15i SERIES HARDWARE
181
The LCD screen display appears dim at low ambient temperatures,
particularly immediately after power–up. This is not a failure but a
characteristic of the LCD screen. As the ambient temperature rises, the
LCD screen display brightens. A monochrome LCD is provided with a
function for adjusting the brightness.
The user can control the operation simply by touching an LCD screen
equipped with a touch panel. The screen must, however, be touched using
a special pen provided by FANUC (A02B–0236–K111). If a sharp–pointed
pen is pressed against the LCD screen, the LCD surface may be damaged
or destroyed. Avoid touching the LCD screen with your bare fingers.
Doing so will ultinately degrade the ease of operation and will make the
screen dirty.
A protective sheet is provided on the front surface of the LCD touch panel
to protect the membrane of the touch panel and the LCD. In addition, the
protective sheet is itself covered with a protective film for preventing
abrasions during transportation. After the CNC has been installed, peel
off the protective film as illustrated below. The protective film is only
semi–transparent. If the protective film is not removed, it will be hard to
read the screen display.

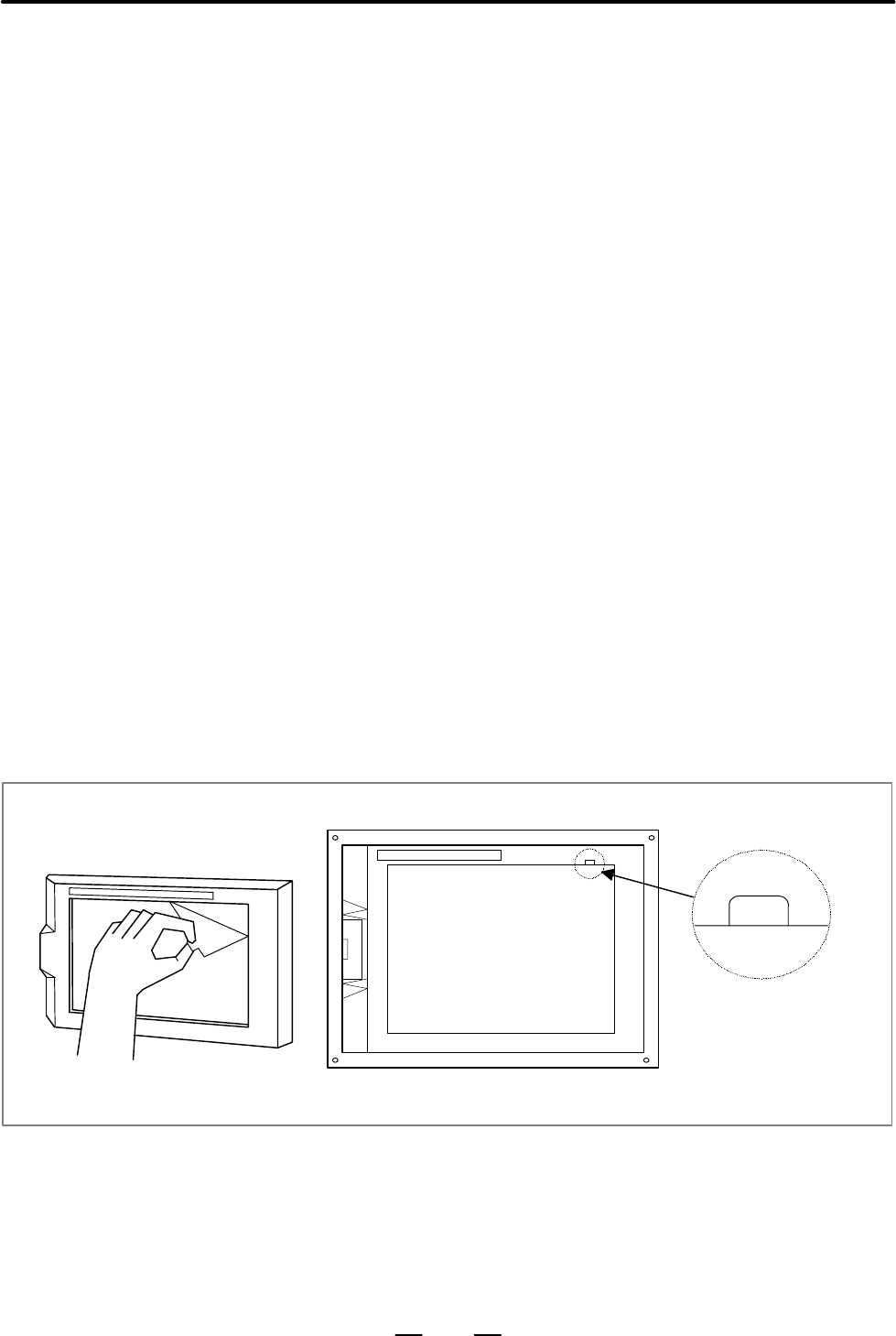

1. Remove the old protective sheet.
Pull the tab to
remove the old
protective sheet.
2.14
LIQUID CRYSTAL
DISPLAY (LCD)
Brightness of
monochrome LCD
LCD with touch panel
Touch panel protective
sheet
Replacement procedure
