Series 15i/150i - Model A Maintenance manual Page 244

Maintenance manual
3. DATA INPUT/OUTPUT
B–63325EN/03
224
Follow the procedure described below to specify the parameters related
to communication:
(1)On the setting parameter screen, enable parameter writing.
(2)On the communication setting screen, specify the parameters related
to communication.
Follow the procedure described below to enable parameter writing:
(1)Place the system in MDI mode or in the emergency stop state.
(2)Follow either of the procedures described below to display the setting
parameter screen.
Method 1
Press the
OFFSET
SETTING
function key several times, until the setting
parameter screen appears.
Method 2
(1) Press the
OFFSET
SETTING
function key.
(2) Click the [SETTINGPARAM] soft key.

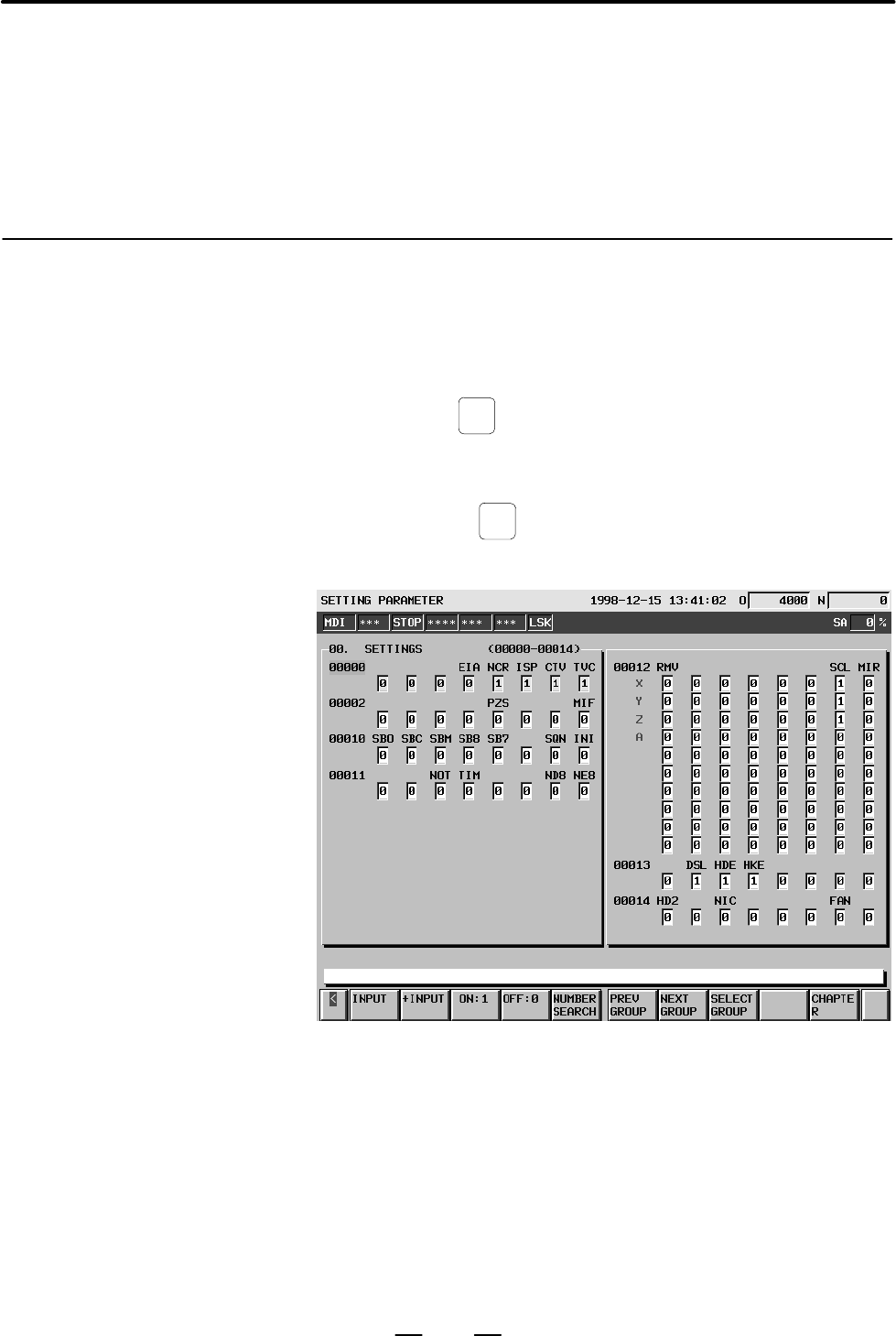

Fig. 3.1.1 Setting parameter screen
(3)Set PWE (bit 0 of parameter No. 8000) and PRA (bit 2 of
parameter No. 8000).
3.1
SPECIFYING
PARAMETERS
REQUIRED FOR
INPUT/OUTPUT
3.1.1
Setting Parameter
Screen
