0i Mate - TC Operators manual Page 355

Operators manual

Page of 806

/ 806

OPERATION

B–64134EN/01

1. GENERAL

331

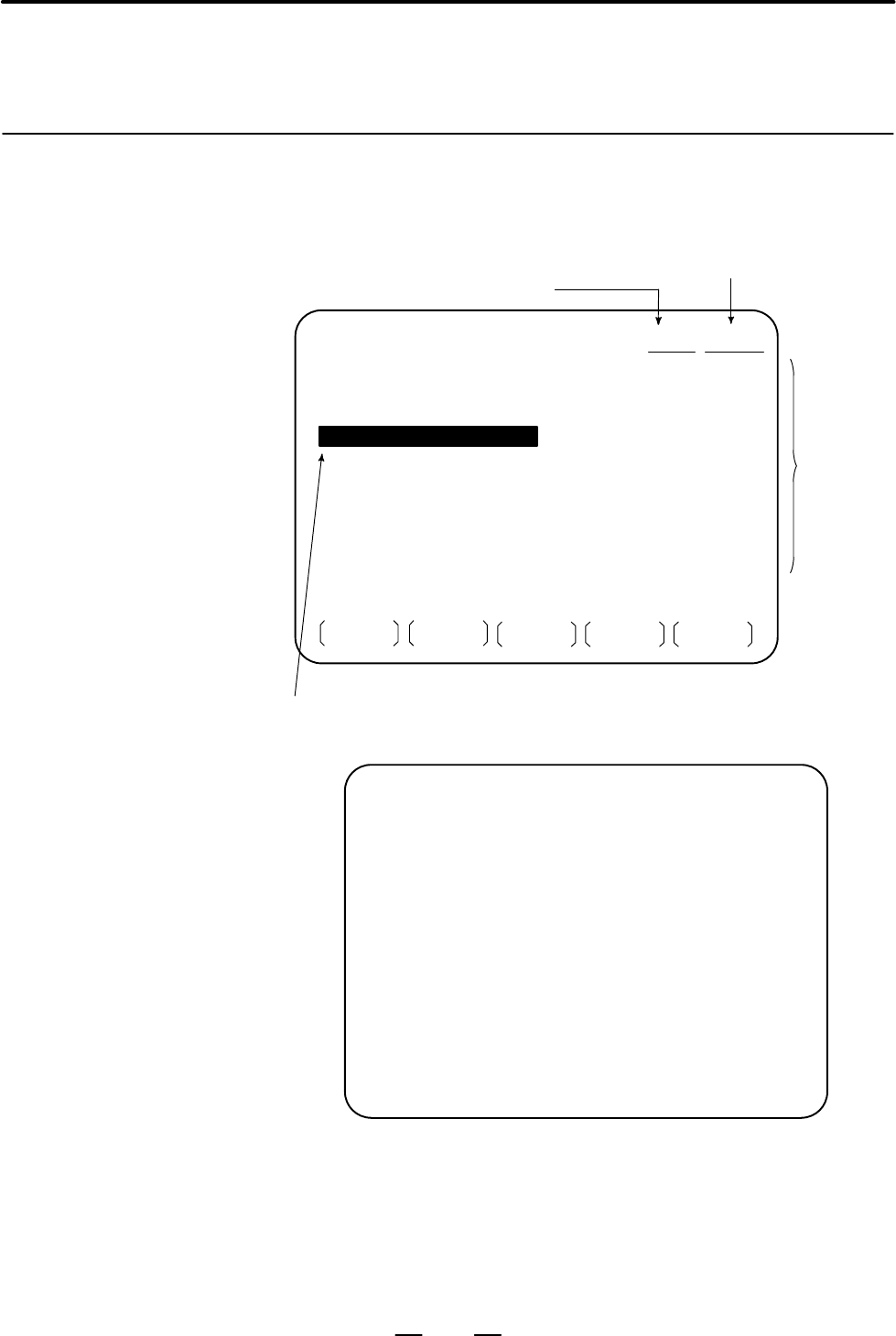

The contents of the currently active program are displayed. In addition,

the programs scheduled next and the program list are displayed.

(See Section III–11.2.1)

PROGRAM

MEM STOP

* * *

13 : 18 : 14

O1100 N00005

PRGRM

N1 G90 G17 G00 G41 X250.0 Z550.0 ;

N2 G01 Z900.0 F150 ;

N3 X450.0 ;

N4 G03 X500.0 Z1150.0 R650.0 ;

N5 G02 X900.0 R–250.0 ;

N6 G03 X950.0 Z900.0 R650.0 ;

N7 G01 X1150.0 ;

N8 Z550.0 ;

N9 X700.0 Z650.0 ;

N10 X250.0 Z550.0 ;

N11 G00 G40 X0 Z0 ;

CHECK CURRNT NEXT (OPRT)

Active program number

Active sequence number

Currently executed program

The cursor indicates the currently executed location

Program

content

O0001 (MACRO–GCODE.MAIN)

O0002 (MACRO–GCODE.SUB1)

O0010 (TEST–PROGRAM.ARTHMETIC NO.1)

O0020 (TEST–PROGRAM.F10–MACRO)

O0040 (TEST–PROGRAM.OFFSET)

O0050

O0100 (INCH/MM CONVERT CHECK NO.1)

> _

EDIT **** *** *** 16:52:13

[ PRGRM ][ DIR+ ][ ][ ][ (OPRT) ]

PROGRAM DIRECTORY O0001 N00010

PROGRAM(NUM.) MEMORY(CHAR.)

USED: 17 4,320

FREE: 183 126,840

1.7

DISPLAY

1.7.1

Program Display

Contents Summary of 0i Mate - TC Operators manual

Page 1
Page 2Ȧ No part of this manual may be reproduced in any form. Ȧ All specifications and designs are subject to change without notice. The export of this product is subject to the authorization of the government of the country from where the product is exported. In this manual we have tried as much as possi
Page 3SAFETY PRECAUTIONS This section describes the safety precautions related to the use of CNC units. It is essential that these precautions be observed by users to ensure the safe operation of machines equipped with a CNC unit (all descriptions in this section assume this configuration). Note that some
Page 4SAFETY PRECAUTIONS B–64134EN/01 1 DEFINITION OF WARNING, CAUTION, AND NOTE This manual includes safety precautions for protecting the user and preventing damage to the machine. Precautions are classified into Warning and Caution according to their bearing on safety. Also, supplementary information i
Page 5B–64134EN/01 SAFETY PRECAUTIONS 2 GENERAL WARNINGS AND CAUTIONS WARNING 1. Never attempt to machine a workpiece without first checking the operation of the machine. Before starting a production run, ensure that the machine is operating correctly by performing a trial run using, for example, the sing
Page 6SAFETY PRECAUTIONS B–64134EN/01 WARNING 8. Some functions may have been implemented at the request of the machine–tool builder. When using such functions, refer to the manual supplied by the machine–tool builder for details of their use and any related cautions. NOTE Programs, parameters, and macro
Page 7B–64134EN/01 SAFETY PRECAUTIONS 3 WARNINGS AND CAUTIONS RELATED TO PROGRAMMING This section covers the major safety precautions related to programming. Before attempting to perform programming, read the supplied operator’s manual and programming manual carefully such that you are fully familiar with
Page 8SAFETY PRECAUTIONS B–64134EN/01 WARNING 6. Stroke check After switching on the power, perform a manual reference position return as required. Stroke check is not possible before manual reference position return is performed. Note that when stroke check is disabled, an alarm is not issued even if a s
Page 9B–64134EN/01 SAFETY PRECAUTIONS 4 WARNINGS AND CAUTIONS RELATED TO HANDLING This section presents safety precautions related to the handling of machine tools. Before attempting to operate your machine, read the supplied operator’s manual and programming manual carefully, such that you are fully fami
Page 10SAFETY PRECAUTIONS B–64134EN/01 WARNING 6. Workpiece coordinate system shift Manual intervention, machine lock, or mirror imaging may shift the workpiece coordinate system. Before attempting to operate the machine under the control of a program, confirm the coordinate system carefully. If the machin
Page 11B–64134EN/01 SAFETY PRECAUTIONS 5 WARNINGS RELATED TO DAILY MAINTENANCE WARNING 1. Memory backup battery replacement When replacing the memory backup batteries, keep the power to the machine (CNC) turned on, and apply an emergency stop to the machine. Because this work is performed with the power on
Page 12SAFETY PRECAUTIONS B–64134EN/01 WARNING 2. Absolute pulse coder battery replacement When replacing the memory backup batteries, keep the power to the machine (CNC) turned on, and apply an emergency stop to the machine. Because this work is performed with the power on and the cabinet open, only those
Page 13B–64134EN/01 SAFETY PRECAUTIONS WARNING 3. Fuse replacement For some units, the chapter covering daily maintenance in the operator’s manual or programming manual describes the fuse replacement procedure. Before replacing a blown fuse, however, it is necessary to locate and remove the cause of the bl
Page 14
Page 15B–64134EN/01 Table of Contents SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . s–1 I. GENERAL 1. GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1.
Page 16Table of Contents B–64134EN/01 4.11 TORQUE LIMIT SKIP (G31 P99) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 5. FEED FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 5.1
Page 17B–64134EN/01 Table of Contents 11.3 THE SECOND AUXILIARY FUNCTIONS (B CODES) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110 12.PROGRAM CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111 12.1 PROGRAM COMPONENTS OTHER THAN PROGR
Page 18Table of Contents B–64134EN/01 14.3.4 Tool Movement in Offset Mode Cancel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213 14.3.5 Interference Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 19B–64134EN/01 Table of Contents 19.PATTERN DATA INPUT FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306 19.1 DISPLAYING THE PATTERN MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307 19.2 PATTERN DATA DISPLAY .
Page 20Table of Contents B–64134EN/01 3.4 MANUAL HANDLE FEED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 375 3.5 MANUAL ABSOLUTE ON AND OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 378 4
Page 21B–64134EN/01 Table of Contents 8.4 PROGRAM INPUT/OUTPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 458 8.4.1 Inputting a Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 22Table of Contents B–64134EN/01 9.7 EDITING OF CUSTOM MACROS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 533 9.8 BACKGROUND EDITING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Page 23B–64134EN/01 Table of Contents 11.6 DISPLAYING THE PROGRAM NUMBER, SEQUENCE NUMBER, AND STATUS, AND WARNING MESSAGES FOR DATA SETTING OR INPUT/OUTPUT OPERATION . . . . . 613 11.6.1 Displaying the Program Number and Sequence Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 24Table of Contents B–64134EN/01 APPENDIX A. TAPE CODE LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 717 B. LIST OF FUNCTIONS AND TAPE FORMAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 720 C. RANGE OF COMMAND VALUE .
