PROGRAMMING4. INTERPOLATION FUNCTIONS

B–64134EN/01

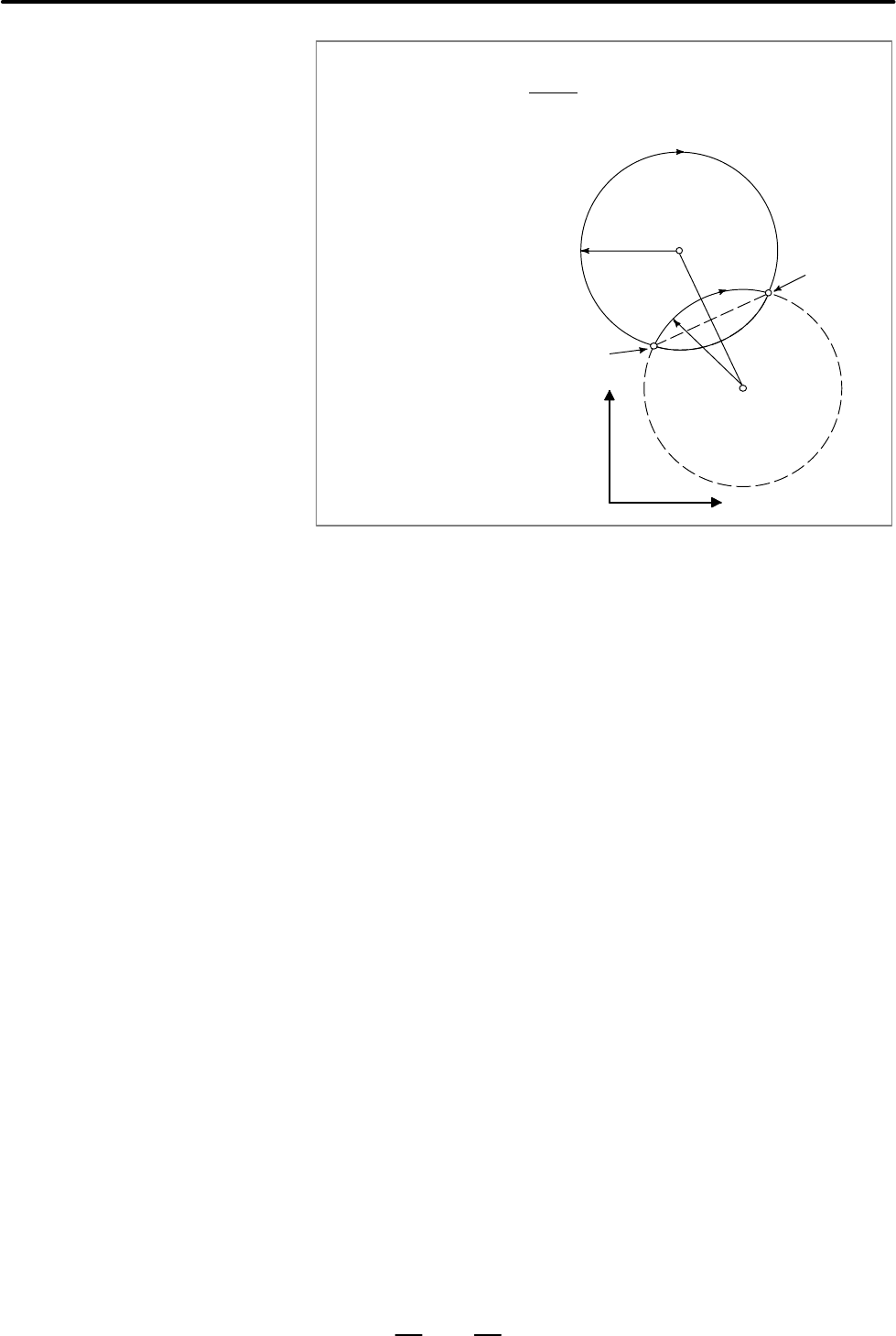

r=50mm

End point

Start point

r=50mm

For arc (1) (less than 180°)

G02 W60.0 U10.0 R50.0

F300.0 ;

For arc (2) (greater than 180°)

An arc with a sector angle of 180°

or wider cannot be specified

within a single block.

(2)

(1)

The feedrate in circular interpolation is equal to the feed rate specified by

the F code, and the feedrate along the arc (the tangential feedrate of the

arc) is controlled to be the specified feedrate.

The error between the specified feedrate and the actual tool feedrate is

±2% or less. However, this feed rate is measured along the arc after the

tool nose radius compensation is applied

If I, K, and R addresses are specified simultaneously, the arc specified by

address R takes precedence and the other are ignored.

If an axis not contained in the specified plane is commanded, an alarm

is displayed.

If the difference in the radius between the start and end points of the arc

exceeds the value specified in parameter No. 3410, P/S alarm No. 020 is

generated.

If the end point is not on the arc, the tool moves in a straight line along

one of the axes after reaching the end point.

If an arc having a central angle approaching 180 is specified with R, the

calculation of the center coordinates may produce an error. In such a case,

specify the center of the arc with I, and K.

D Feedrate

Restrictions

D Simultaneously

specifying R with I and K

D Specifying an axis that is

not contained in the

specified plane

D Difference in the radius

between the start and

end points

D Specifying a semicircle

with R
