OPERATION

B–64134EN/01

4. AUTOMATIC OPERATION

417

(1)The memory card can not be accessed, such as display of memory card

list and so on, during the DNC operation with memory card.

(2)The selection of DNC operation file that is set at DNC OPERATION

screen is cleared by the power supply turn off and on. After the power

supply is turned on again, it is necessary to select the DNC operation

file again.

(3)Please do not pull out and insert memory card during the DNC

operation with memory card.

(4)It is not possible to call a program in the memory card from the DNC

operation program.

(5)When this function is used, secure the memory card by following the

procedure described later, to prevent the card from becoming

disconnected or poorly connected due to vibration during operation or

for some other reason.

DNM0138

#6 #5 #4 #3 #2 #1 #0

[Data type] Bit

#7 (DNM) The DNC operation with memory card function is

0 : disable.

1 : enable.

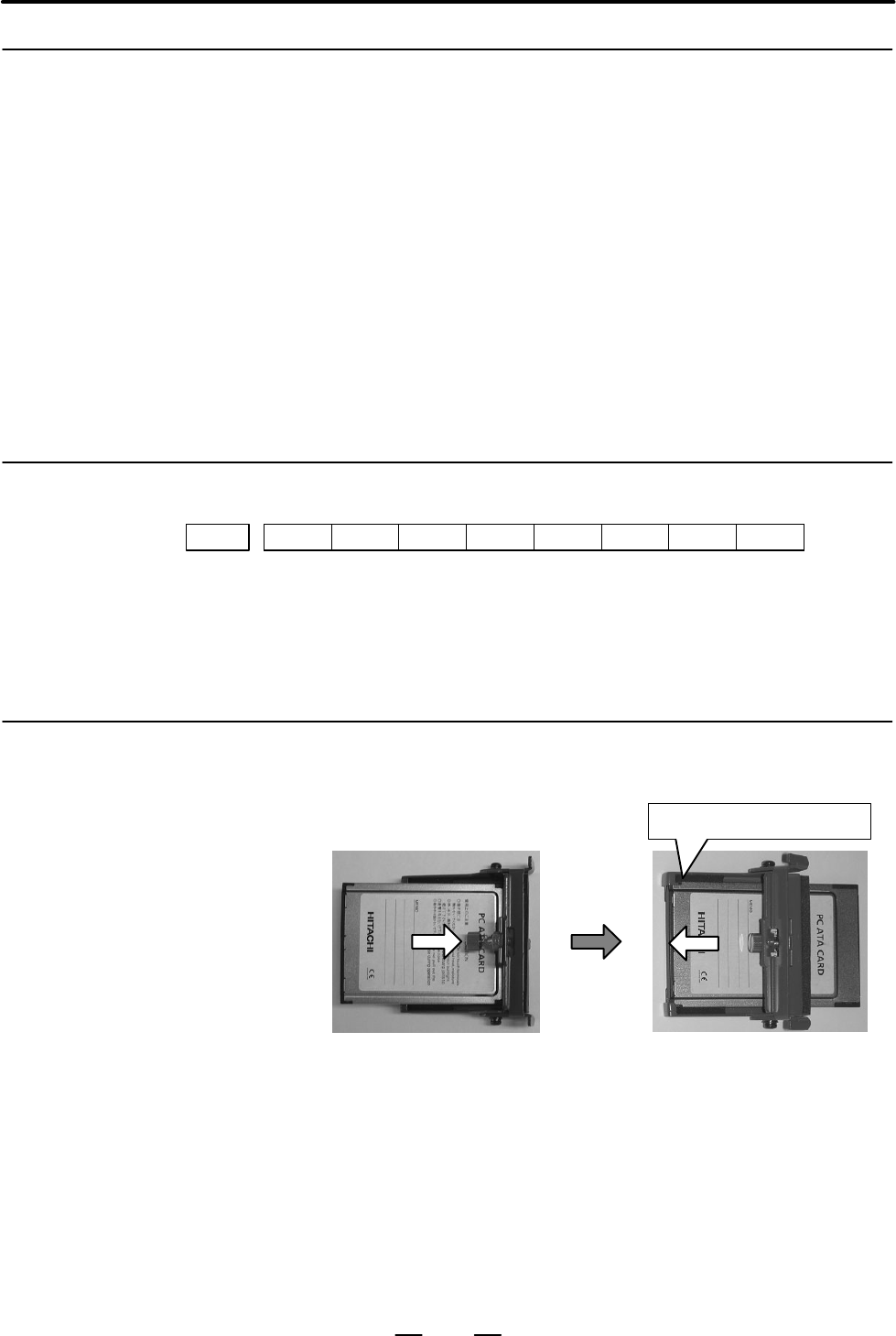

Follow the procedure below to fix the memory card.

1. Inserting the memory card into the fixing bracket

Insert the memory card into the

fixing bracket in the direction

indicated by the arrow.

Fix the memory card to the fixing

bracket.

Fix the card at this point.

4.10.3

Limitation and Notes

4.10.4

Parameter

4.10.5

Procedure for Fixing

the Memory Card
