OPEN CNC (DNC Operation Management Package) Operators manual Page 103

Operators manual
B-63214EN/01 6. CUSTOMIZATION
- 87 -
6.4.3 Changing the order in which message languages are listed
This section describes how to change the order in which message languages
are listed.
For switching between message languages, these languages are usually listed
in the order in which they were installed. If many message languages have
been installed, those which are used most frequently can be placed at the top
of the list to enable their easy selection.
Procedure

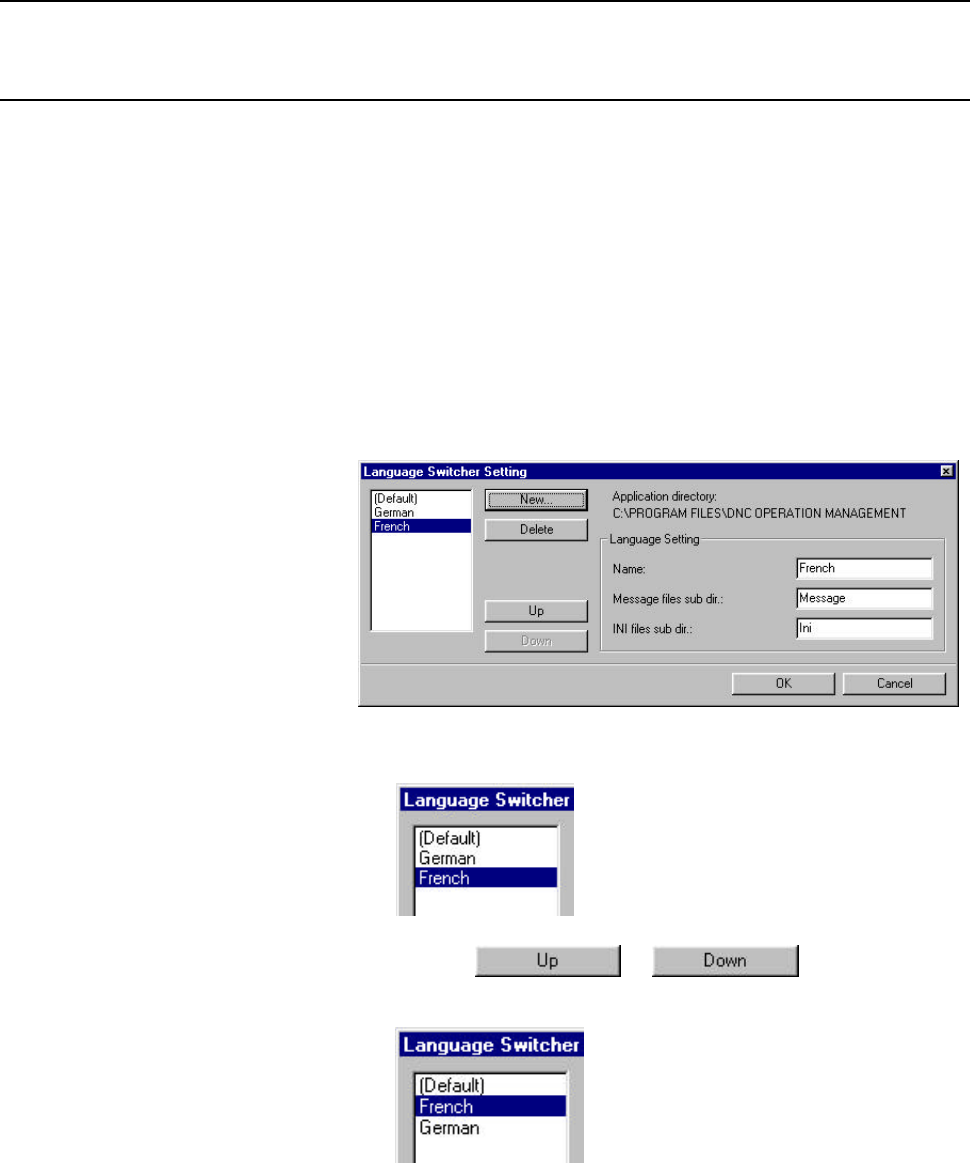

1. If the [Language Switcher Setting] screen is currently not displayed,
follow the procedure described in Section 6.4, "Customizing Message
Languages" to display the [Language Switcher Setting] screen.
2. Select a language to be moved to another position.
3. Click the or button to move the
selected language to the desired position.
4. Click the <OK> button.
