OPEN CNC (DNC Operation Management Package) Operators manual Page 97

Operators manual
B-63214EN/01 6. CUSTOMIZATION
- 81 -
6.3.2 Changing settings for screen objects
This section describes how to change the settings of screen objects.
Procedure
1. If the [Edit Screen Object] screen is currently not displayed, follow the
procedure described in Section 6.3, "Customizing Screen Objects" to
display the [Edit Screen Object] screen.

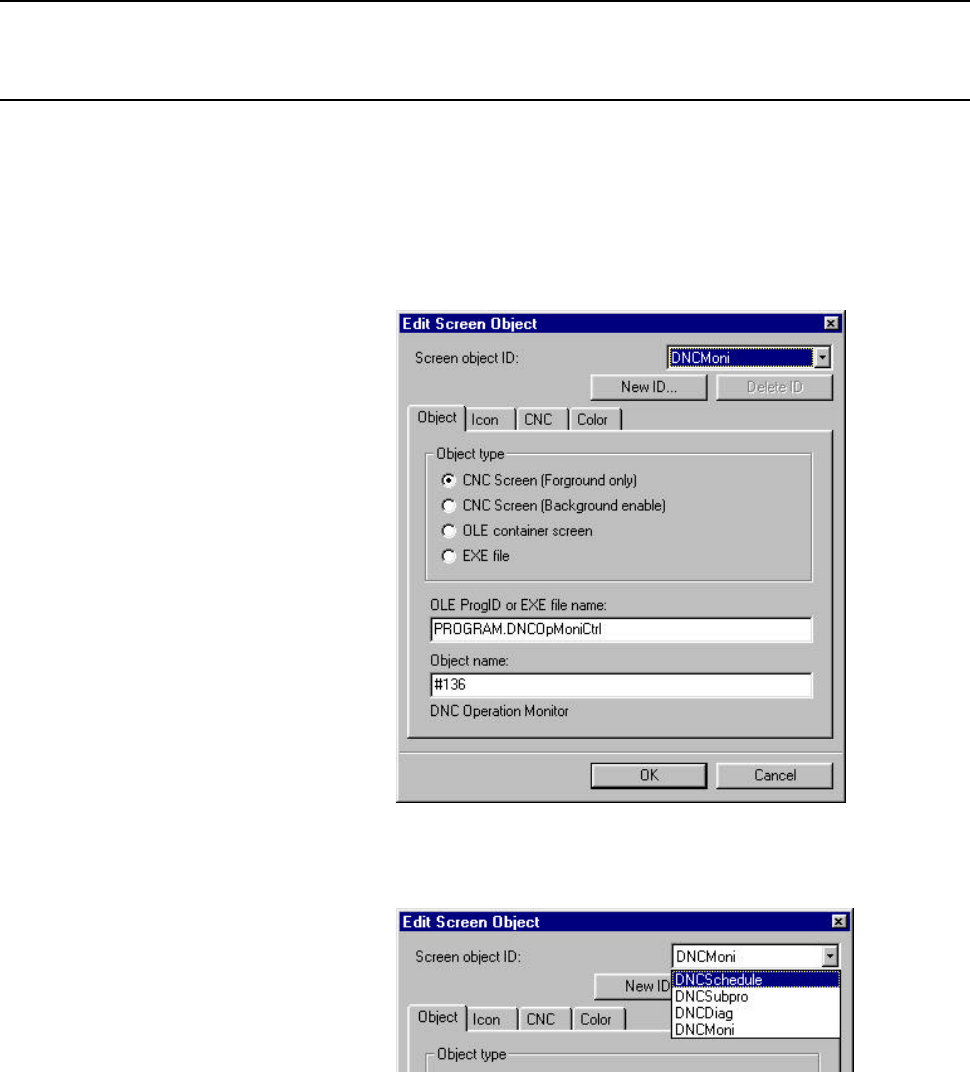

2. From the "Screen object ID:" combo box, select the ID of a screen to
be edited.
3. Change the desired setting items.
For details of the setting items, see Section 6.3.1, "Creating custom
screen objects."
4. Click the <OK> button on the [Edit Screen Object] screen.
This completes the editing of the screen object.
