OPEN CNC (DNC Operation Management Package) Operators manual Page 92

Operators manual
6. CUSTOMIZATION B-63214EN/01
- 76 -

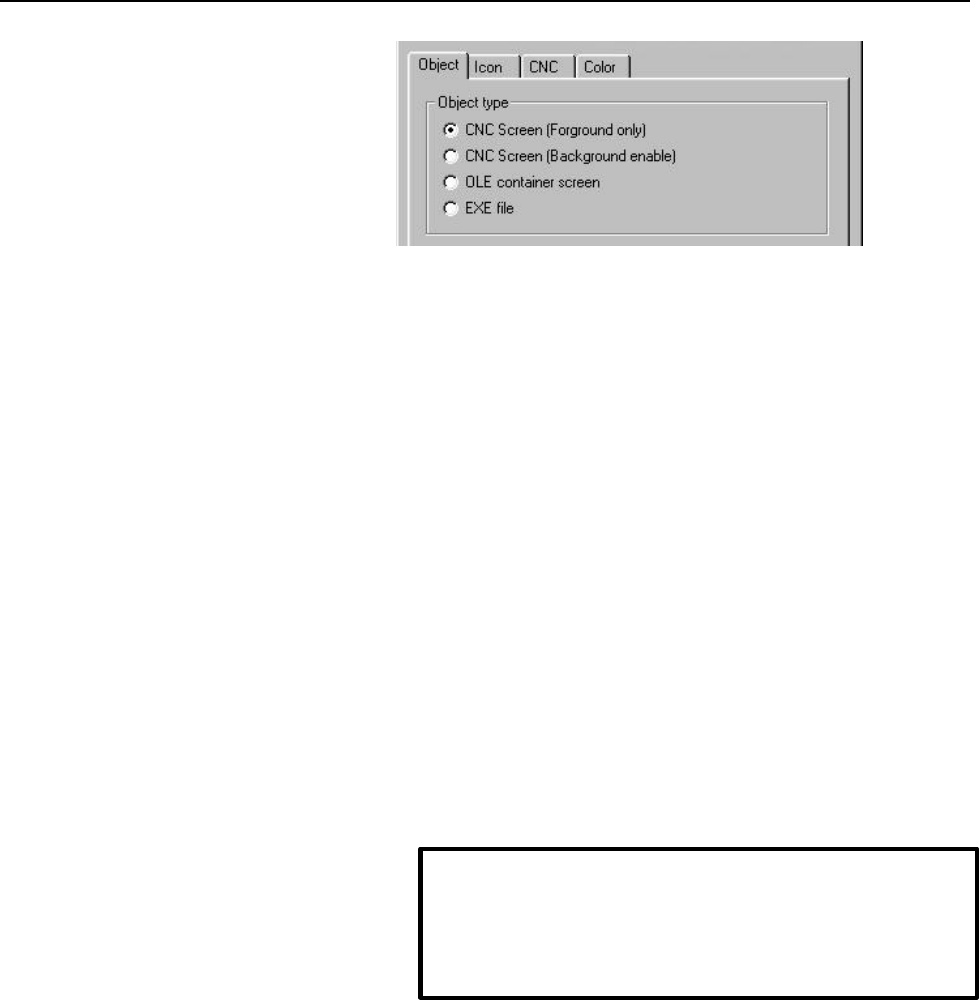

One of the following object types can be specified:
• CNC Screen
A CNC screen is an OLE object. Normally, FANUC provides
objects of this type.
CNC screens are classified as follows:
Screen that is executable only when it is in the foreground.
Screen that is also executable even when it is in the background.
Those screens that are set as "foreground only" are loaded or
unloaded upon each screen switching. The cursor position and other
information is not maintained.
Those screens that are set as "background enable" are not unloaded
upon screen switching, and therefore remain in memory. The cursor
position and other information is maintained.
(Examples are screens for tool offset data or custom macro
variables.)
• OLE container screen
An OLE container screen is used to display or edit general OLE
objects.
Select an OLE container screen for those operations that involve
OLE objects for which an appropriate menu or tool bar is to be
displayed in a parent window, such as visual editing using Microsoft
Word, Microsoft Excel, or other OLE-enabled application.
• EXE file
An EXE file is a general Windows application such as Notepad.
This type of application is not displayed in a child window, and runs
independently of DNC Operation Management Package.
NOTE
To prevent excessive memory or resource consumption,
the number of screens to be set as "background enable"
must be kept to a minimum.
