OPEN CNC (DNC Operation Management Package) Operators manual Page 87

Operators manual
B-63214EN/01 6. CUSTOMIZATION
- 71 -

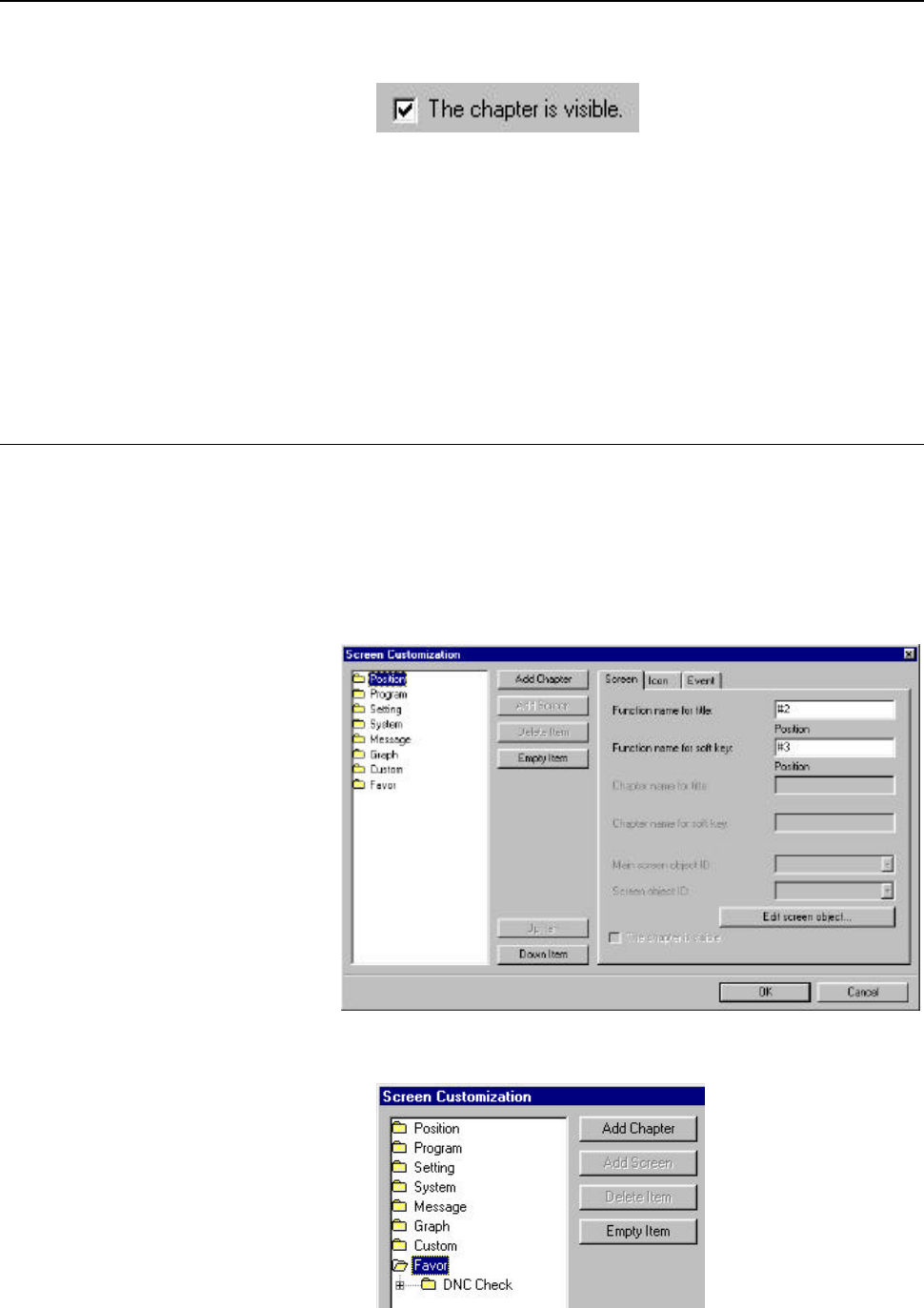

The check box for showing or hiding a chapter is enabled.
Explanation
Whether a chapter is shown can be determined using the following item:
l The chapter is visible.
Clearing this item hides a specified chapter. Those screens that are not
normally used, such as the maintenance screen, can be erased temporally.
6.2.5 Setting soft keys as empty
This section describes how to set function or chapter soft keys as empty.
Procedure
1. If the [Screen Customization] screen is currently not displayed, follow
the procedure described in Section 6.2, "Customizing Screens" to
display the [Screen Customization] screen.
2. In the screen layout tree, select a function or chapter to be set as empty.
Previous page
Next page
