OPEN CNC (DNC Operation Management Package) Operators manual Page 82

Operators manual
6. CUSTOMIZATION B-63214EN/01
- 66 -

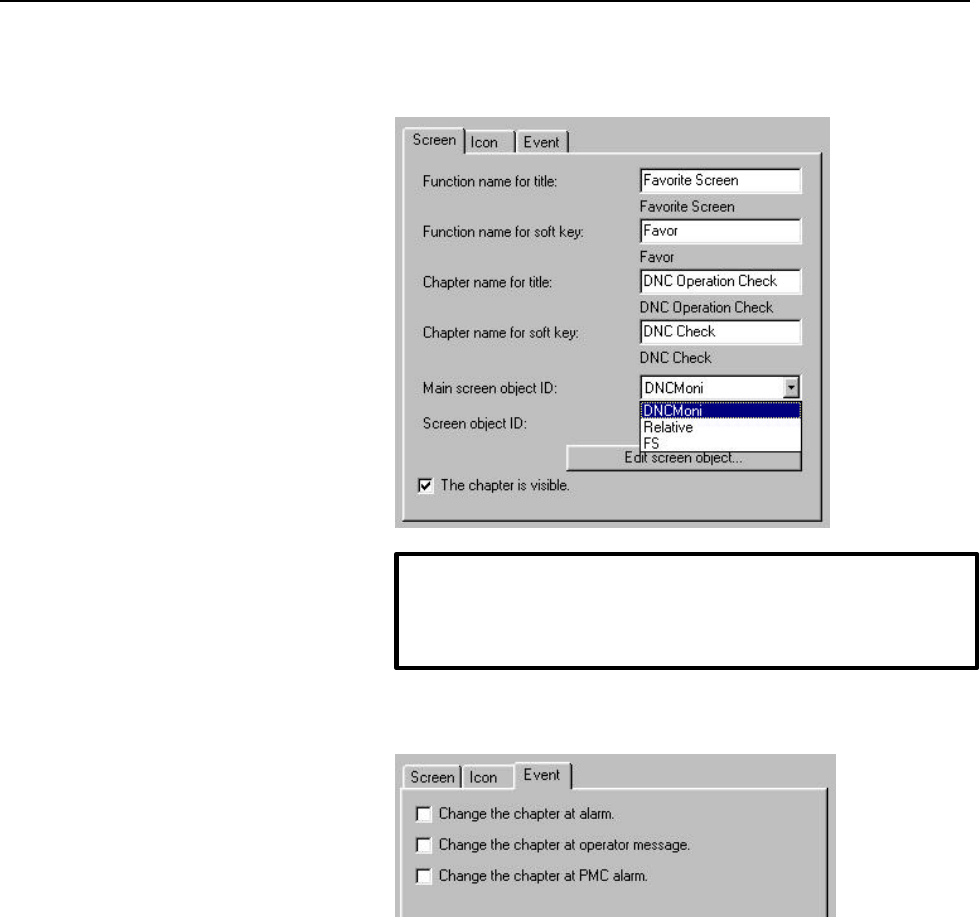

10. From the "Main screen object ID:" list, select the main screen for the
chapter.
11. To set a chapter display option, select the "Event" tab.
12. Select an item or items to be set. The following items can be set:
l Change the chapter at alarm.
Selecting this item causes automatic switching to this chapter when
a CNC alarm condition occurs.
l Change the chapter at operator message.
Selecting this item causes automatic switching to this chapter when
an operator message is issued.
l Change the chapter at PMC alarm.
Selecting this item causes automatic switching to this chapter when
a PMC alarm condition occurs.
NOTE
If the feature specified for the main screen is unavailable on the
CNC side, the chapter is not displayed.
