OPEN CNC (DNC Operation Management Package) Operators manual Page 34

Operators manual
2. BASIC KNOWLEDGE B-63214EN/01
- 18 -

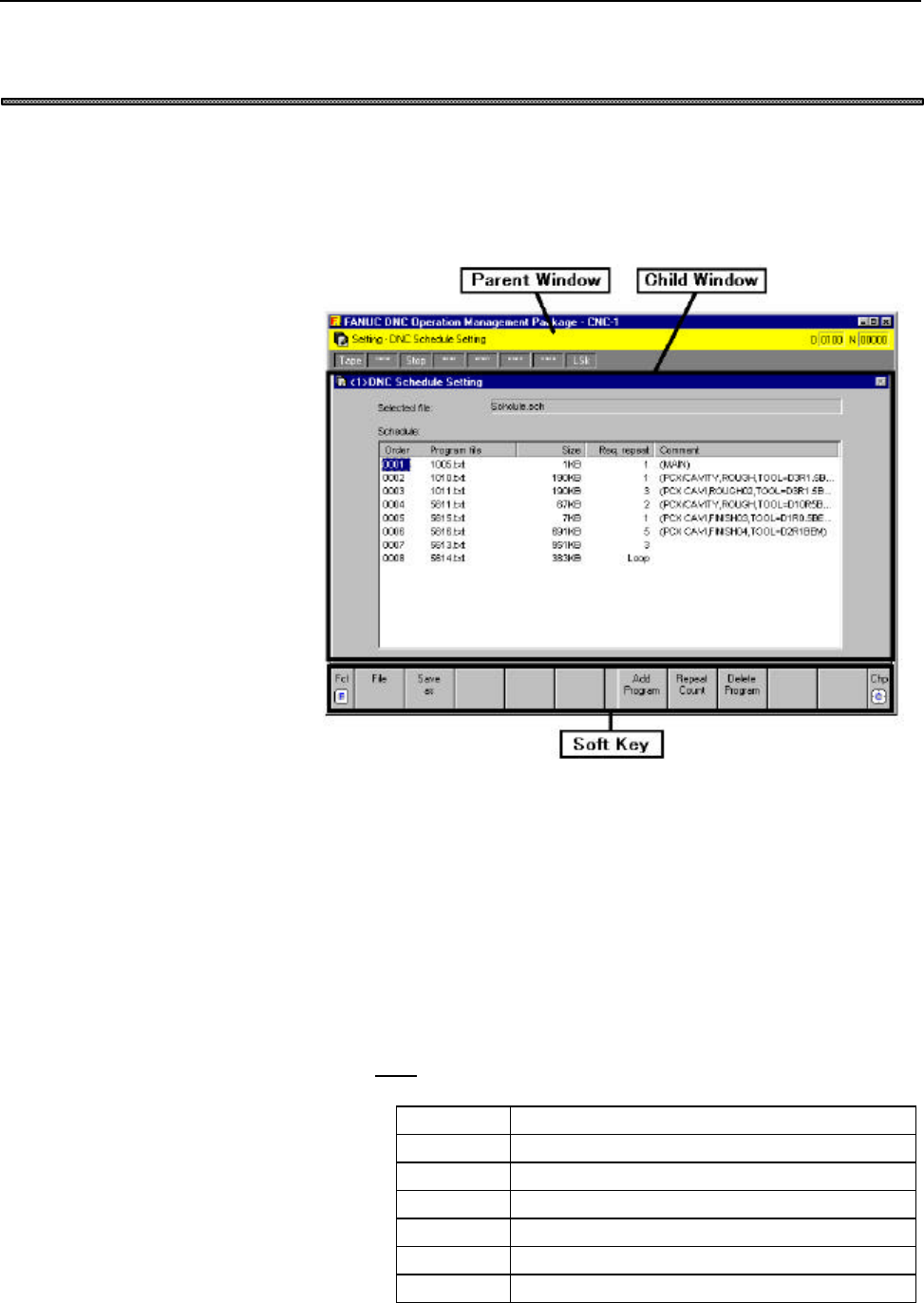

2.4 Window Names and Functions
This section describes the name and functions of each window displayed by
DNC Operation Management Package.
DNC Operation Management Package displays a parent window which
consists of one or more child windows. Each child window has setting,
display, and other functions.
Explanation
l Parent window
• Main window of DNC Operation Management Package
• Selecting a soft key at the bottom of the parent window displays the
corresponding child window within the parent window.
• Multiple child windows can be displayed within the parent window.
• The top of the parent window indicates the function name
corresponding to the child window which is currently active and
statuses such as the CNC mode. The displayed statuses and their
meanings are as follows:
FS15
(1) Automatic operation mode selection
Status Meaning
**** Not selected
MDI MDI mode
Tape TAPE mode
Mem MEMORY mode
Edit EDIT mode
Thin TEACH in mode
