B–63304EN/02

2. TOOL DATA AND TOOLING

INFORMATION

SETTING AND DISPLAY OF DATA

259

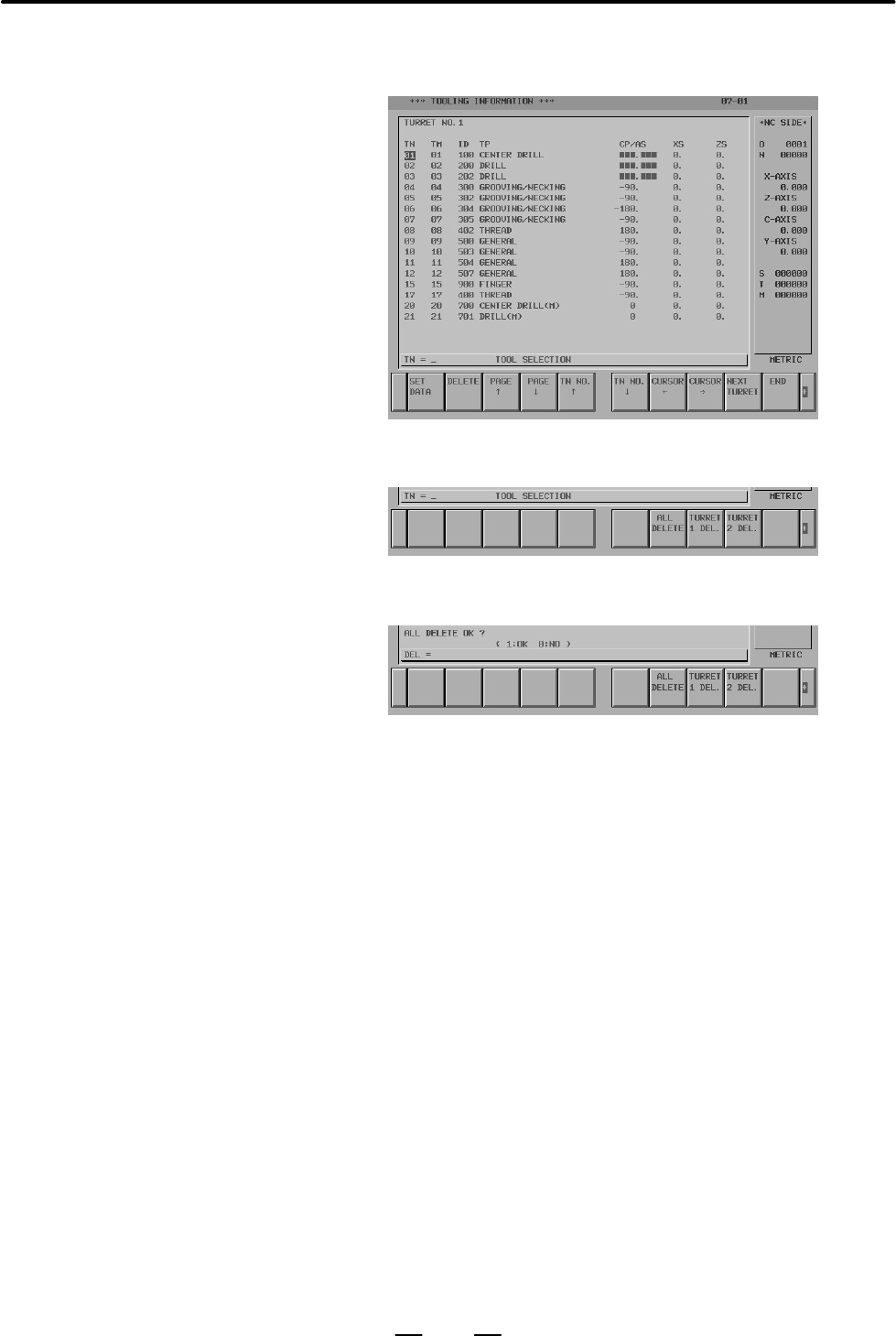

Tooling information can be initialized on the tooling information list

screen.

When the [+] soft key at the right on the tooling information list screen

is pressed, the following soft keys are displayed:

When the “ALL DELETE” soft key is pressed, the system prompts the

user to confirm whether the data is to be deleted.

When 1 is entered, all the tooling information in main memory is deleted.

Meanings of the soft keys

“ALL DELETE” Deletes all the tooling information. . . . . . . .

registered in main memory.

“TURRET 1 DEL.” Deletes all the TL1 tooling information. . . . . .

registered in main memory (only for the TT

specifications).

“TURRET 2 DEL.” Deletes all the TL2 tooling information. . . . . .

registered in main memory (only for the TT

specifications).

“+” The displayed soft key menu changes. . . . . . . . . . . . . . . . . . .

cyclically.

2.5

INITIALIZATION OF

TOOLING

INFORMATION
