B–63304EN/02

B. RESTRICTIONS ON EACH SYSTEMAPPENDIX

911

(1)Press “Cursor ±” or “Cursor °” to select the Process No. to be inserted.

(For example, select process 03).

(2)Select the machining contents to be inserted (for example, press

“TURN” and press “ROUGH I.D.”).

The results are as follows.

PROC 01: DRILLING

PROC 02: ROUGHING OF OUTER FIGURE

PROC 03: ROUGHING OF INNER FIGURE ← (INSERTION)

PROC 04: FINISHING OF OUTER FIGURE

PROC 05:

(Sample Deletion)

(1)Press “CURSOR ±” or “CURSOR °” to select the process No. to be

deleted.

(2)Press “PROC DELETE”.

(Replacement)

(1)Insert a new machining process, then delete the old one, or

(2)Delete the old one, then insert a new machining process.

Only one process can be corrected if required after all processes are

prepared, and only NC data of its process can be output.

Press “CORR. & OUT” when the screen in Fig. B.1.1.2 (a) appears: the

screen as shown in Fig. B.1.1.2 (b) will appear.

Select the process to be output independently as NC data, using “Cursor

*” or “Cursor *”, and press “NEXT PAGE”.

If the working process is specified on the process chart screen, the screen

changes and the tool information required for working definition is

prompted.

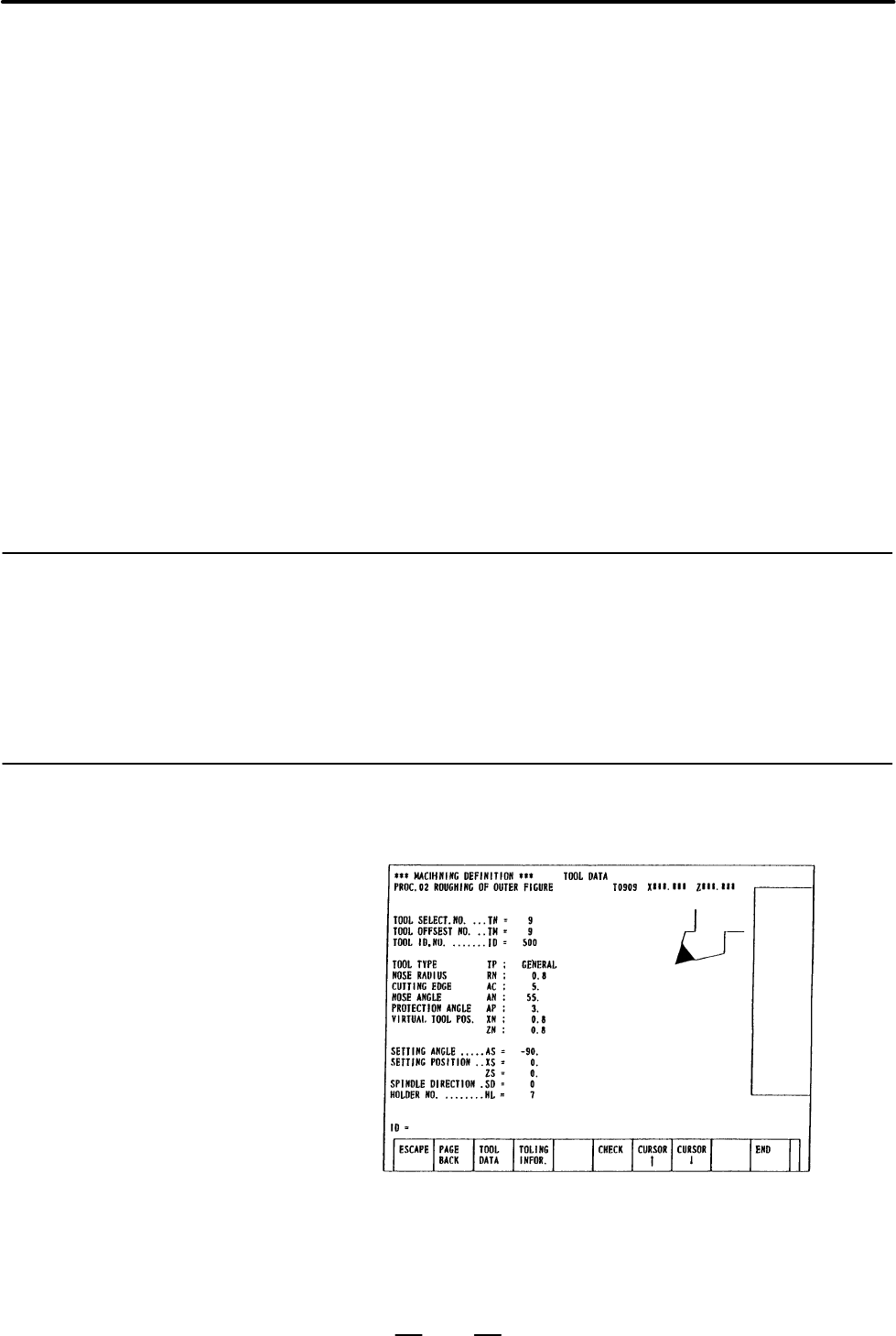

Tool data is displayed on the left–hand side of the screen and the tool

picture is displayed on the right–hand side of it. (The tool picture is

displayed if the optional animation–drawing function is available. To

display the tool picture, press the soft key “CHECK”.)

B.1.1.3

Output of only single

process

B.1.1.4

Tool data
