5. CREATING NC DATA
(MENU NO. 5)
SLANTED SURFACE MACHINING
791
(2)Output example 2
%
5
O5000
(SLANT–DRILLING)
G98G97S500
G50Xxa.Zza.C0.
G68.1Xxo’Y0.’Zz0 I0.J1.K0.R45.
T0202
G00Xxb Zzb Yyb
Xxc Zzc Yyc
Xxd Zzd Yyd
G98G83XzdR0.F200.
G00Xxc Zzc Yyc
T0200
G69.1
Xxb Zzb Yyb
Xxa Zza Yya
M05
M01
%

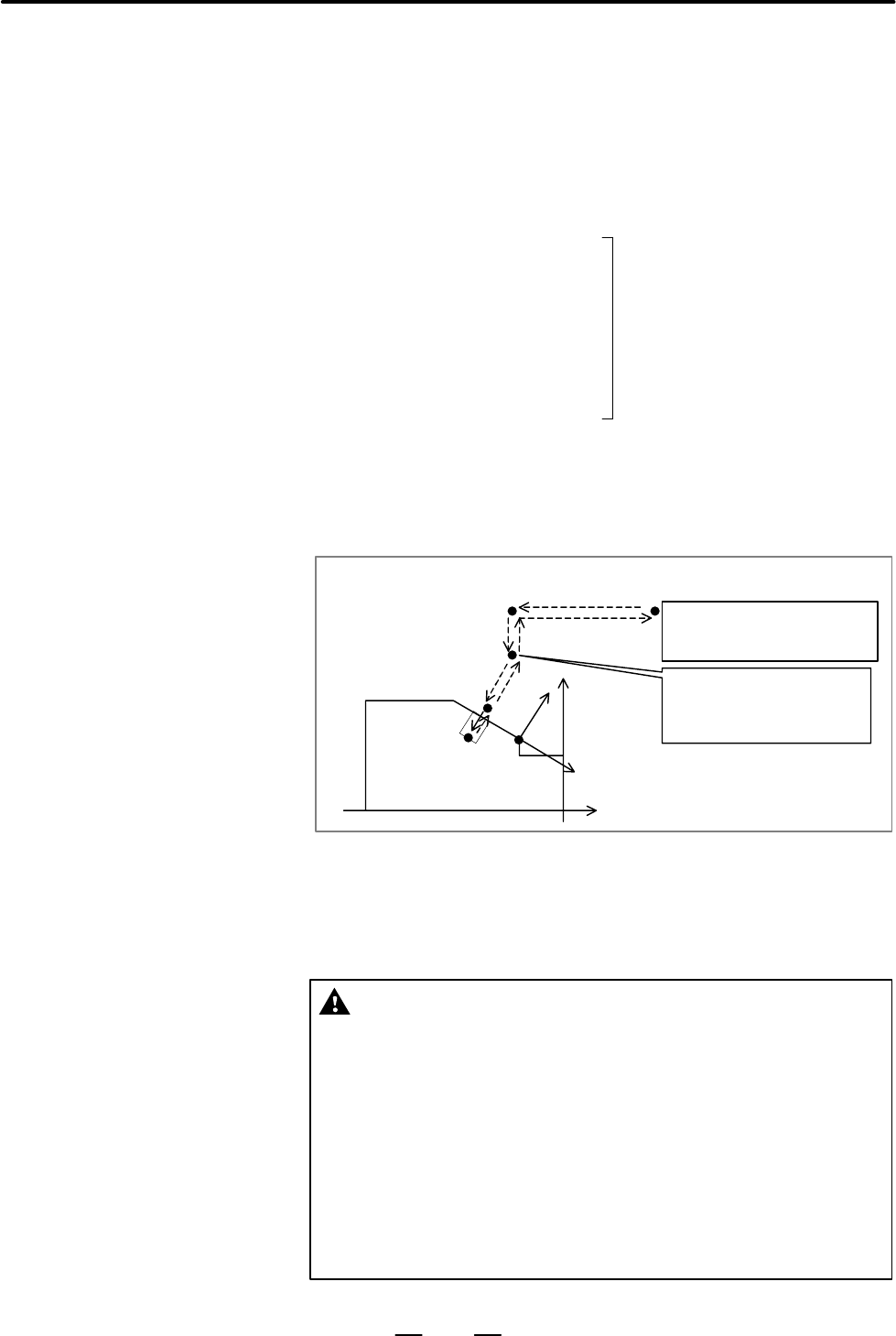

Outputs coordinates in the
X’Y’Z’ plane.
Cancels three–dimensional
coordinate conversion.
Starts three–dimensional
coordinate conversion.
Pass point B
Tool–change point
Safe plane C
D
E
O’
Z’
Z
X’
X
Cancels three–dimen-
sional coordinate conver-
sion.
Starts/cancels three–
dimensional coordinate
conversion.
A
The timing when the three–dimensional coordinate conversion cancel
command is issued can be changed using MTF1087. However, the
specification states that in menu No. 6 (foreground animated simulation),
the movement of the tool is not drawn with T code offset canceled. In this
example, therefore, no tool path for traveling is drawn after T0200.
CAUTION
When approaching from the tool–change position, the tool
always moves simultaneously with respect to the three
axes.
If three–dimensional coordinate conversion is to be
canceled at the tool–change position, be sure to use a
reference position return (G30) to cause the tool to escape
to the tool–change position.
(Example of setting the function table for tool escape to the
tool–change position)
MTF2019 = G30U0.W0.V0.
