17. MEASUREMENT FUNCTIONS
B–63122EN/01
NC FUNCTION
112
By commanding axis move after G33, linear interpolation can be
commanded like in G01. If an external skip signal is input during this
command, the remainder of this command is cancelled, and program
skips to the next block.
G33 is a one-shot command and is valid for the commanded block only.

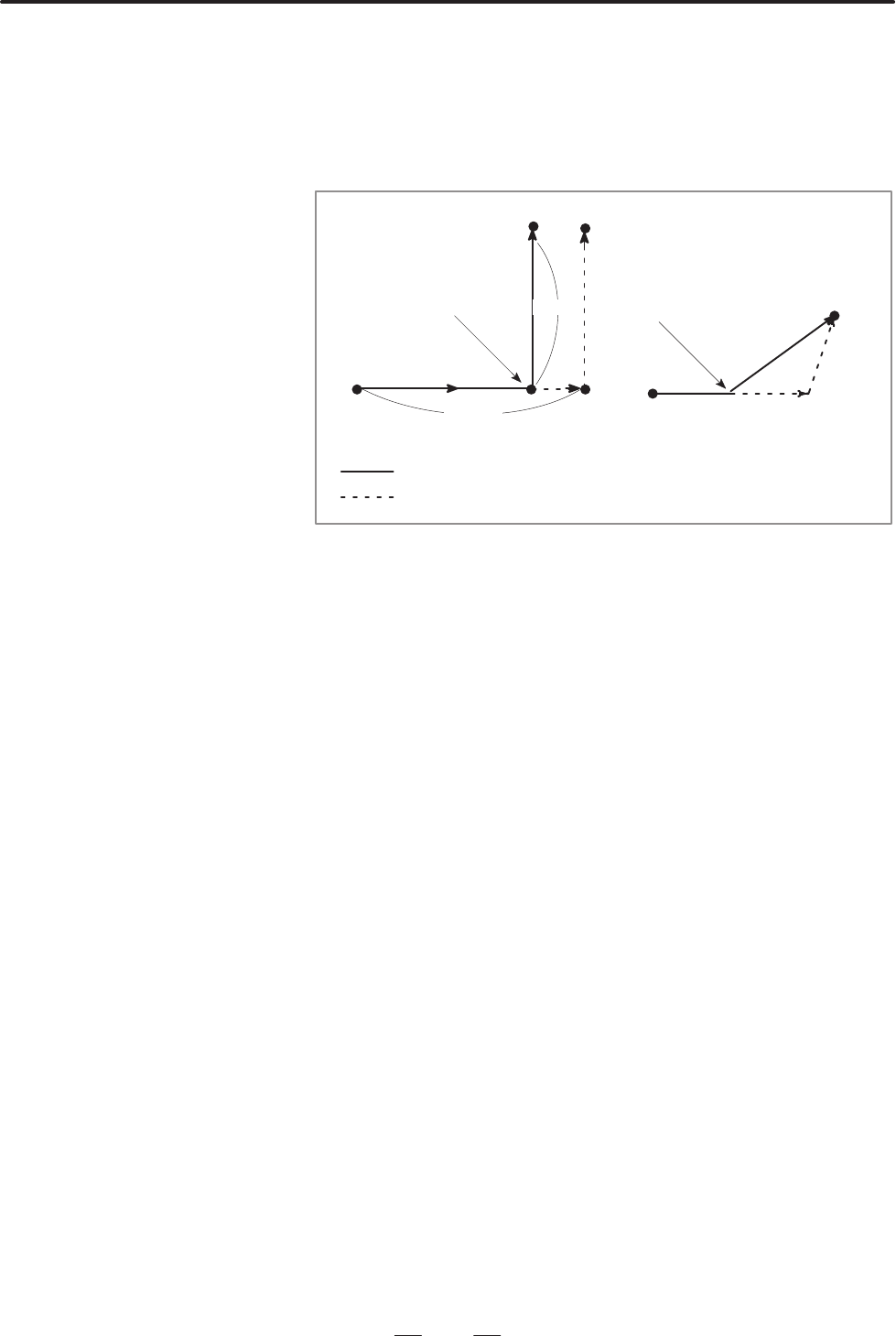

100.0
50.0
Skip signal input
(300, 100)
Skip signal input
Actual movement
With no skip signal input
Coordinate value when skip signal is on, is stored in the system variables
#5061 - #5066 of the customer macro, so this function can also be read
with the customer macro function.
#5061: X axis coordinate value
#5062: Y axis coordinate value
#5063: Fourth axis coordinate value
#5064: Fifth axis coordinate value
#5065: Sixth axis coordinate value
As the skip function can be used when move amount is not clear, this
function can be used for:
Tool measurement with tactile sensor.
17.1
SKIP FUNCTION
(G33)
