33. PERSONAL COMPUTER FUNCTIONS
NC FUNCTION
217

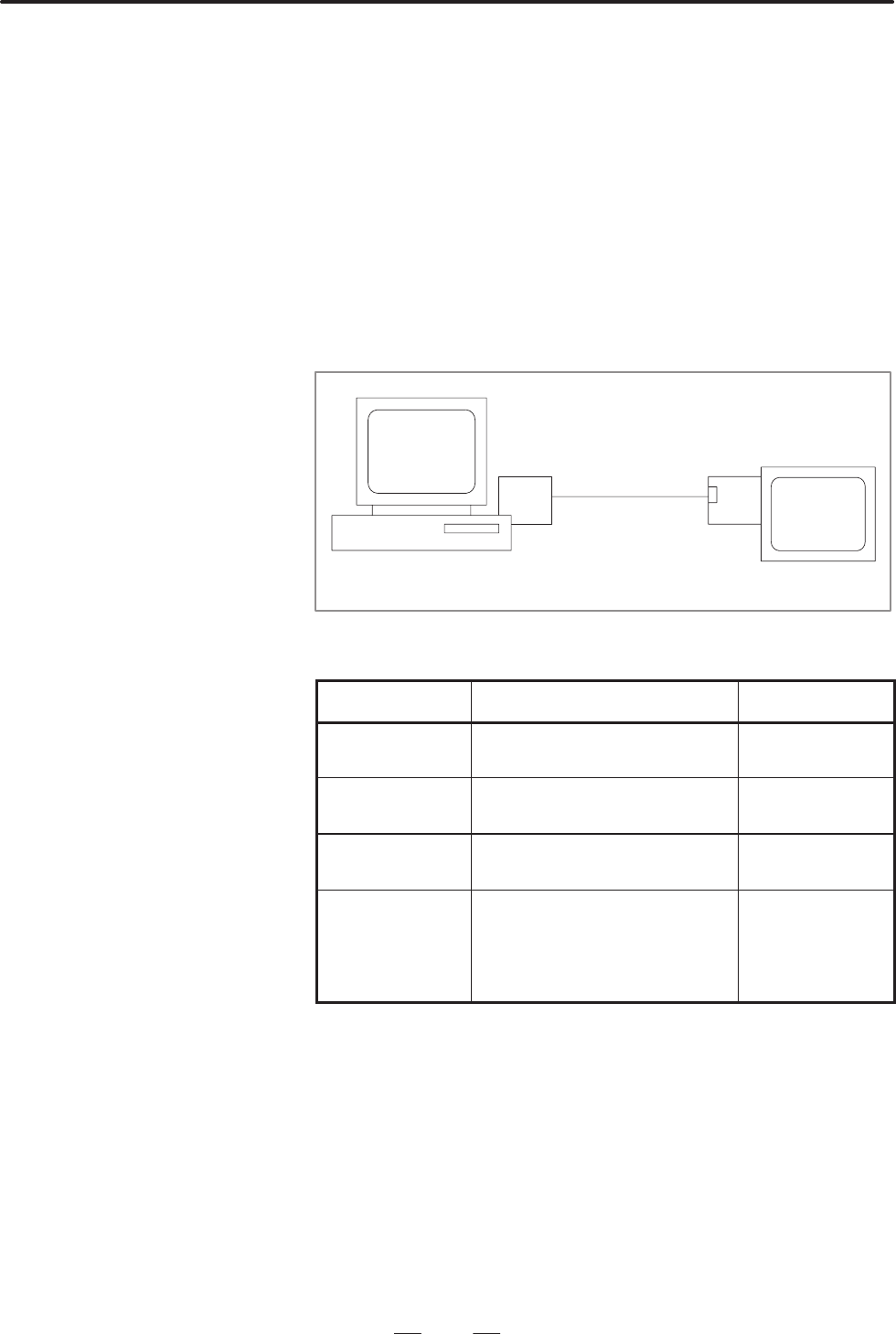

The High–Speed Serial Bus is a serial interface to enable high–speed data
transfer between a PC installed on the operator’s panel and the CNC
control section.
If a dedicated interface board is installed in a commercially available IBM
PC or compatible, it becomes possible to connect the PC to the CNC
control section via the High–Speed Serial Bus. This bus has the following
features.
A large amount of data can be transferred between the PC and the CNC
control section.
A high–reliability optical fiber cable is used for connection between
the PC and the CNC control section.
Machine tool builders can select a PC that meets the requirements on
the machine system side.
HSSB interface
board
HSSB interface board
High–Speed
Serial Bus
PC
Hardware for the open CNC (for connection with a commercially available
PC using the high–Speed Serial Bus)
Item
Specification Remark
CNC–side interface
board
For optional slot
Applicable model:
210i
PC–side interface
board
Compliant to the ISA specifications
Required supply voltage: +5V only
Interconnection
cable
Optical fiber cable
Maximum cable
length: 50 m
Conditions for
selecting a PC
CPU: 486 or more powerful
One or more ISA slots
Refer to the applica-
ble manual of the
PC for its installa-
tion environment
conditions.
33.2
HIGH–SPEED SERIAL
BUS (HSSB)
