  2. FANUC Series 16i/18i/21i-MB/TB Improvement of Program Restart Specifications

FANUC Series 16i/18i/21i-MB/TB Improvement of Program Restart Specifications Additional Manual Page 7

Additional Manual
Caution
The result of conversion is expressed by up to 8 digits, decimal
point and minus sign.
If the result cannot be expressed by 8 digits, P/S alarm 5373
occurs.
(Example)
The following arguments cannot be converted into 8 digits, and
P/S alarm 5373 occurs.
- M20 A[12345678.*10.] ; (123456780. , 9 digits )
- M20 B[0.0000001/10.] ; (0.00000001 , 9 digits)
1.2.4 Specifying the axis movement sequence to the program restart position
Up to now, the axis movement sequence to the program restart position is
specified by parameter No.7310. In this function, it can be changed at the
program restart screen.
Changing the axis movement sequence is available after restart block
search and before movement to restart position.
• Procedure of specifying the axis movement sequence to the program restart position

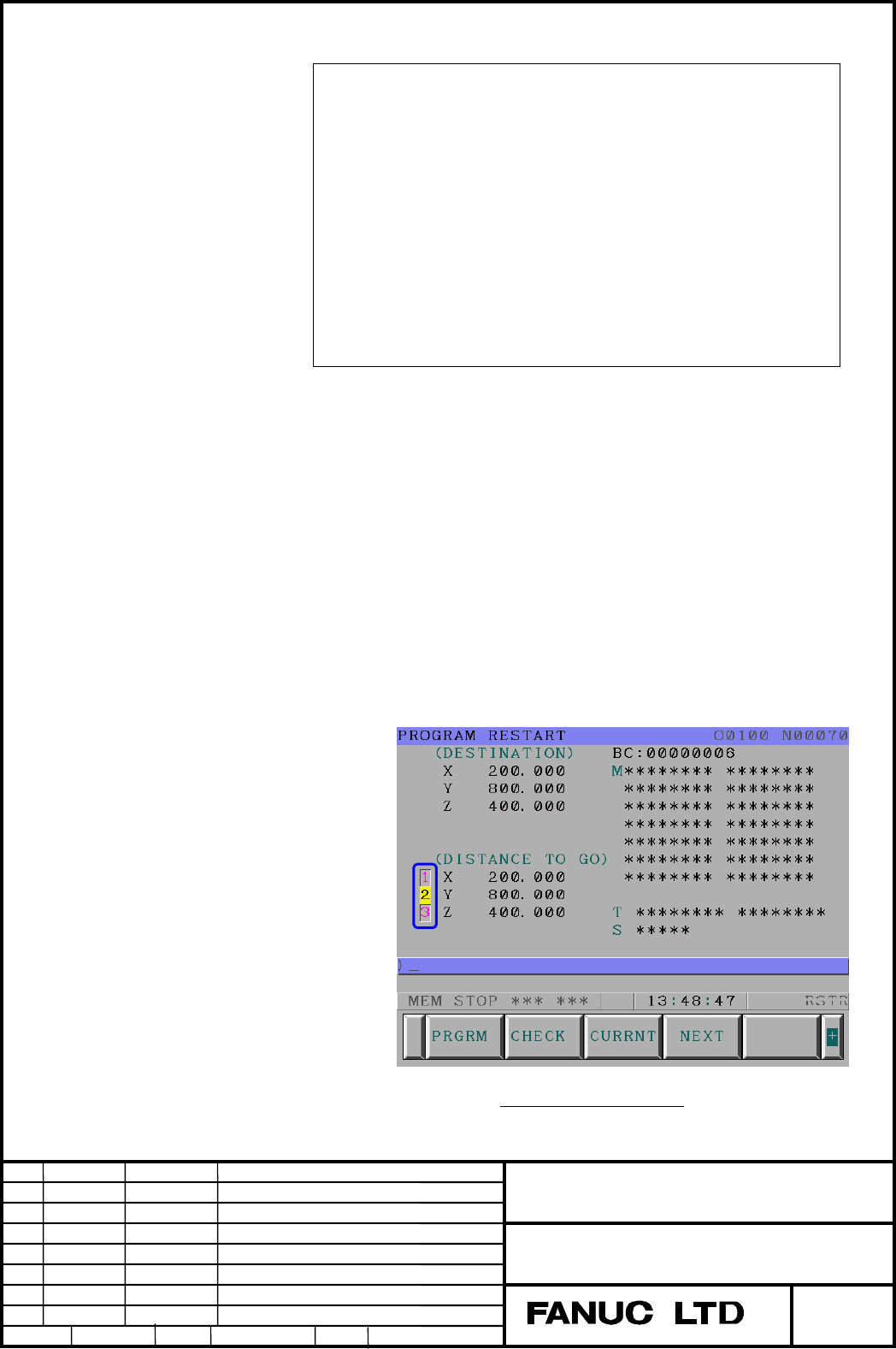

1) A cursor is displayed at the left side of axis name DISTANCE TO
GO in program restart screen.
Program restart screen
Edit
7/22
Data Si
g
nature
Descri
p
tion
Improvement of Program restart Specifications
A-90024EN
Drawing No.
Page
Modification
02
Date
Mar/26/05.
Desig.
M. Kobayashi
Apprv.
T. Endo
May/10/05.
FANUC Series 16i/18i/21i-MB/TB
Title
Previous page
Next page
