6. SPINDLE CONNECTION
B–63003EN/04
134
With the Series 16i and 18i, three or four serial spindles can be connected
using the serial spindle connector panel described below.
Serial spindle connector panel specification: A13B–0180–B001

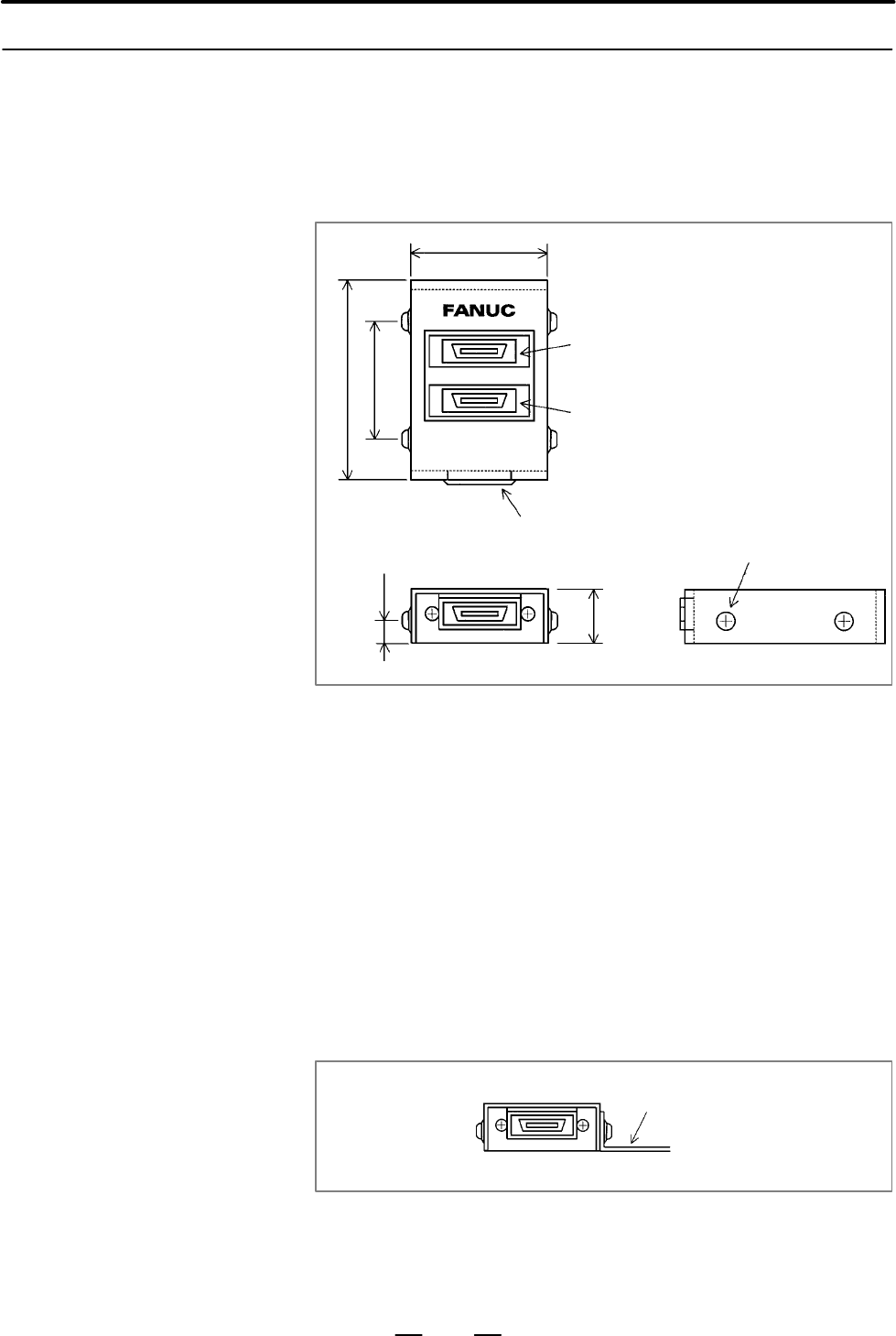

Outside dimensions of the serial spindle connector panel
The outside dimensions of the serial spindle connector panel are the same
as those for the optical I/O link adapter (A13B–0154–B001).
Connector for connection with a
spindle amplifier
JA7A–2 (second channel)
Connector for connection with a
spindle amplifier
JA7A–1 (first channel)
Connector for connection with the CNC
JA48
4–M3
40
66
7
18
45
Conditions for installing the serial spindle connector panel
D The serial spindle connector panel does not have an enclosed structure.
So, install the serial spindle connector panel in an enclosed cabinet as
used for the CNC.
D Ground the case by using the case mounting screws of the serial
spindle connector panel.
D The serial spindle connector panel is light, so that it need not be
secured with screws. However, ensure that the serial spindle
connector panel does not contact other electrical circuits and thus
cause a short circuit. When securing the serial spindle connector panel
to the cabinet, for example, attach an L–shaped metal fitting as shown
below with a case mounting screw (M3) of the serial spindle connector
panel.
L–shaped metal fitting
6.1.2
Connecting One to
Four Serial Spindles
