Connection manual (Hardware)
9. FANUC INTELLIGENT TERMINAL TYPE 2
B–63003EN/04
202

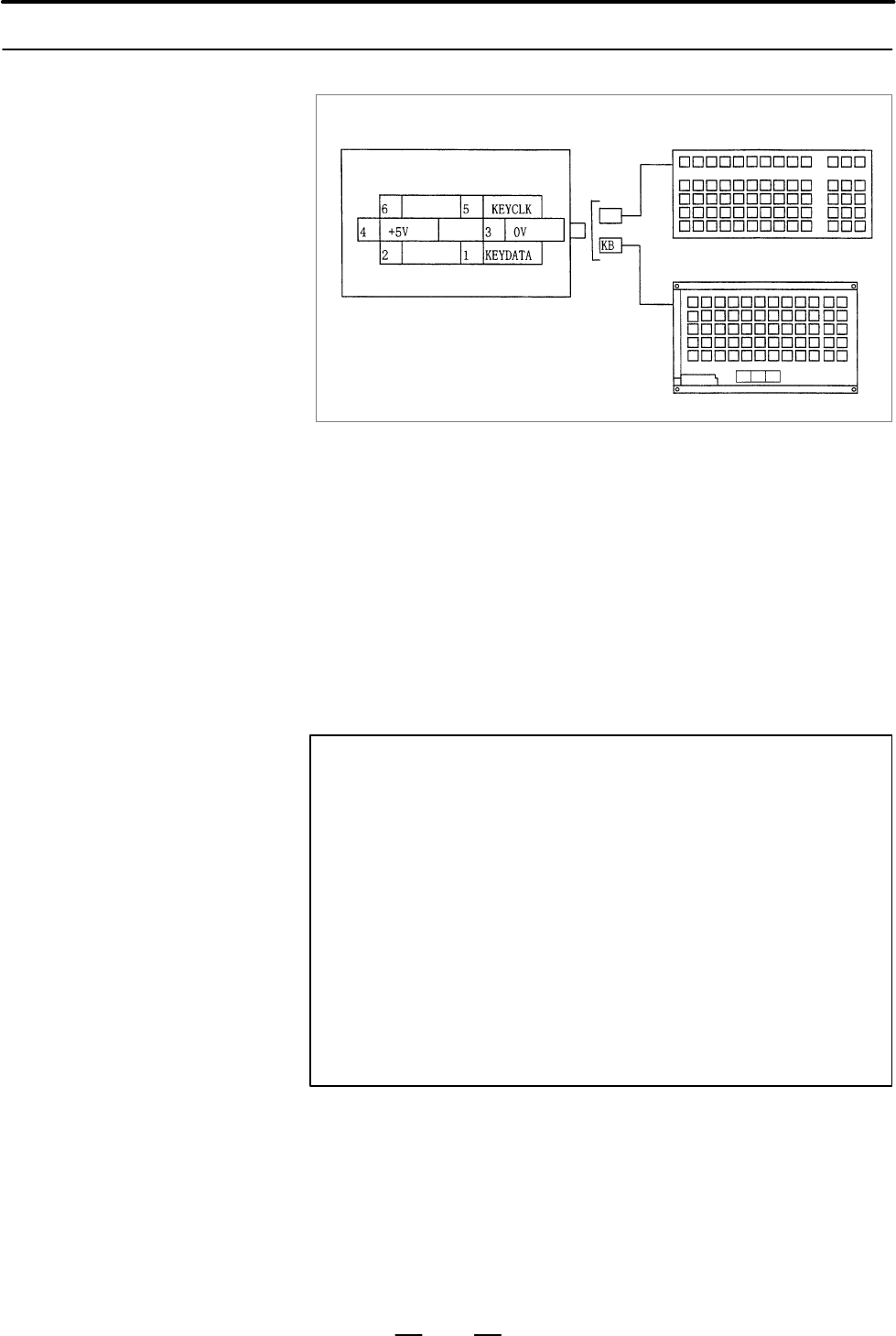

CD32A
(mini DIN6)
Intelligent terminal type 2
Typewriter–style keyboard
(commercial model)
Alternatively, FA typewriter–
style keyboard
1) Recommended full keyboard
A86L–0001–0210 101–key keyboard (commercial model). . . . . .
for development and maintenance use only. . . . . .
A86L–0001–0211 106–key keyboard (commercial model). . . . . .
for development and maintenance use only. . . . . .
A02B–0234–C120#JC FA typewriter–style keyboard. .
(Japanese–language version)
A02B–0234–C120#EC FA typewriter–style keyboard . .
(English–language version)
Typewriter–style keyboard. . . . . .
designed to be incorporated
into the intelligent terminal
NOTE
1 Commercial typewriter–style keyboards are prone to
compatibility problems with personal computers to some
degree. It is not guaranteed that the intelligent terminal type
2 can operate with every commercial typewriter–style
keyboard. Machine tool builders are requested to check the
operability of the typewriter–style keyboards they select.
Keep in mind that general commercial typewriter–style
keyboards are neither dust–proof nor moisture–resistant.
2 If an FA typewriter–style keyboard is incorporated into the
system, clamp its cable at a point as close to it as possible
so that the weight of the cable is not applied directly to the
connector.
9.7.5
Typewriter–style
Keyboard
