10. CONNECTION TO FANUC I/O Link
B–63003EN/04
346
CNC
Distribution I/O machine
operator’s panel
Emergency stop switch
General–purpose DI
General–purpose DO
+24 V power supply
+24 V power supply
I/O unit
NOTE
CNCs of the i series only allow the distribution I/O machine
operator’s panel to be used with connected MPG units.
When other units (such as I/O modules for connection) that
have an MPG interface and which are connected via I/O
Link are used together with this machine operator’s panel,
only the MPG interface of the unit (module) closest to the
CNC on the I/O Link connection is valid. For I/O Link
connection and manual pulse generator connection, the
screw connector indicated below, which has been newly
added to the main board of the i series, cannot be used.
Connectors that cannot be used on the cable side
Specification Manufacturer
Connector case FI–20–CV7 Hirose Electric
Connector case + connector FI30–20S–CV7 Hirose Electric
10.12.2

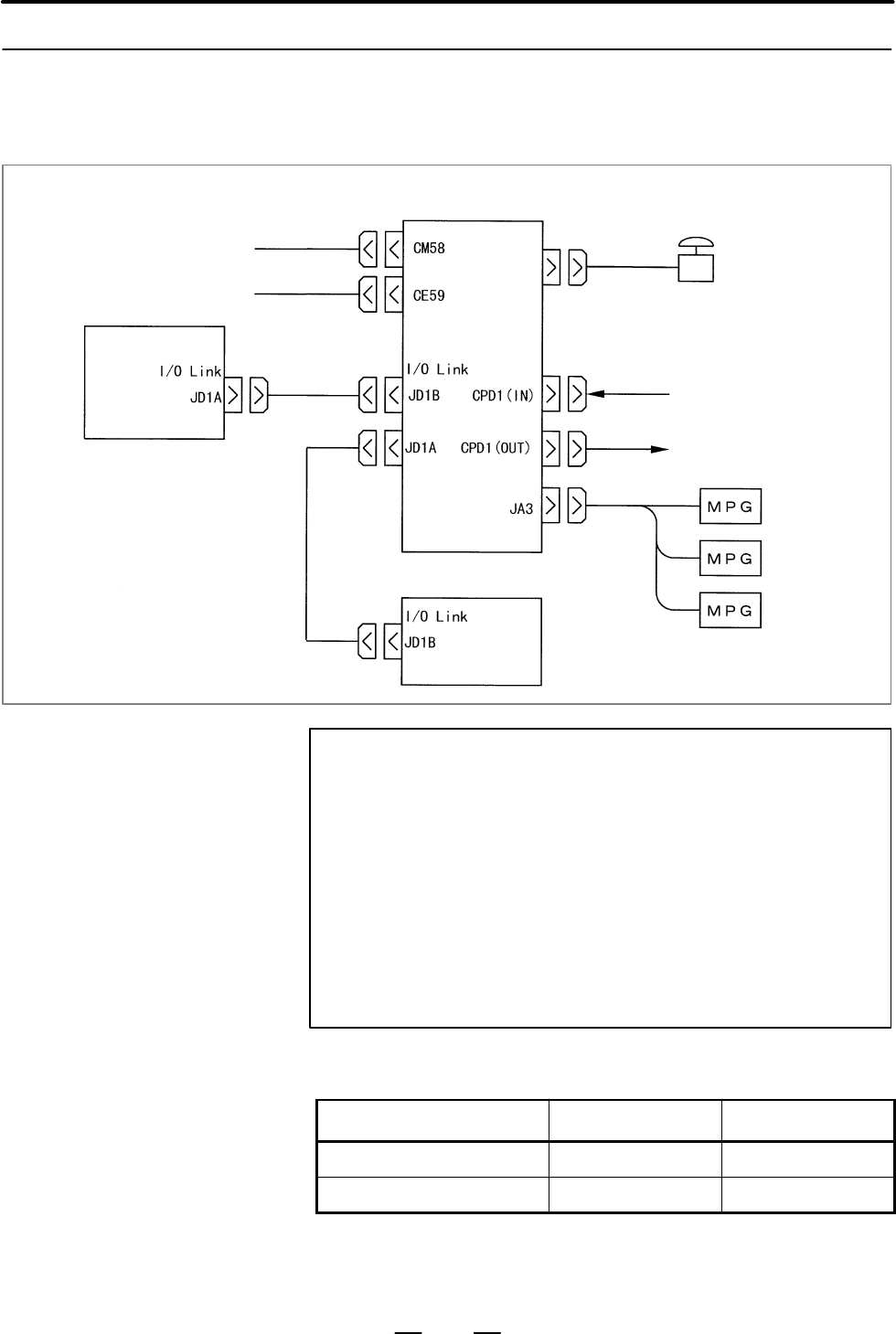

Overall Connection
Diagram
