Connection manual (Hardware)
B–63003EN/04
9. FANUC INTELLIGENT TERMINAL TYPE 2
201

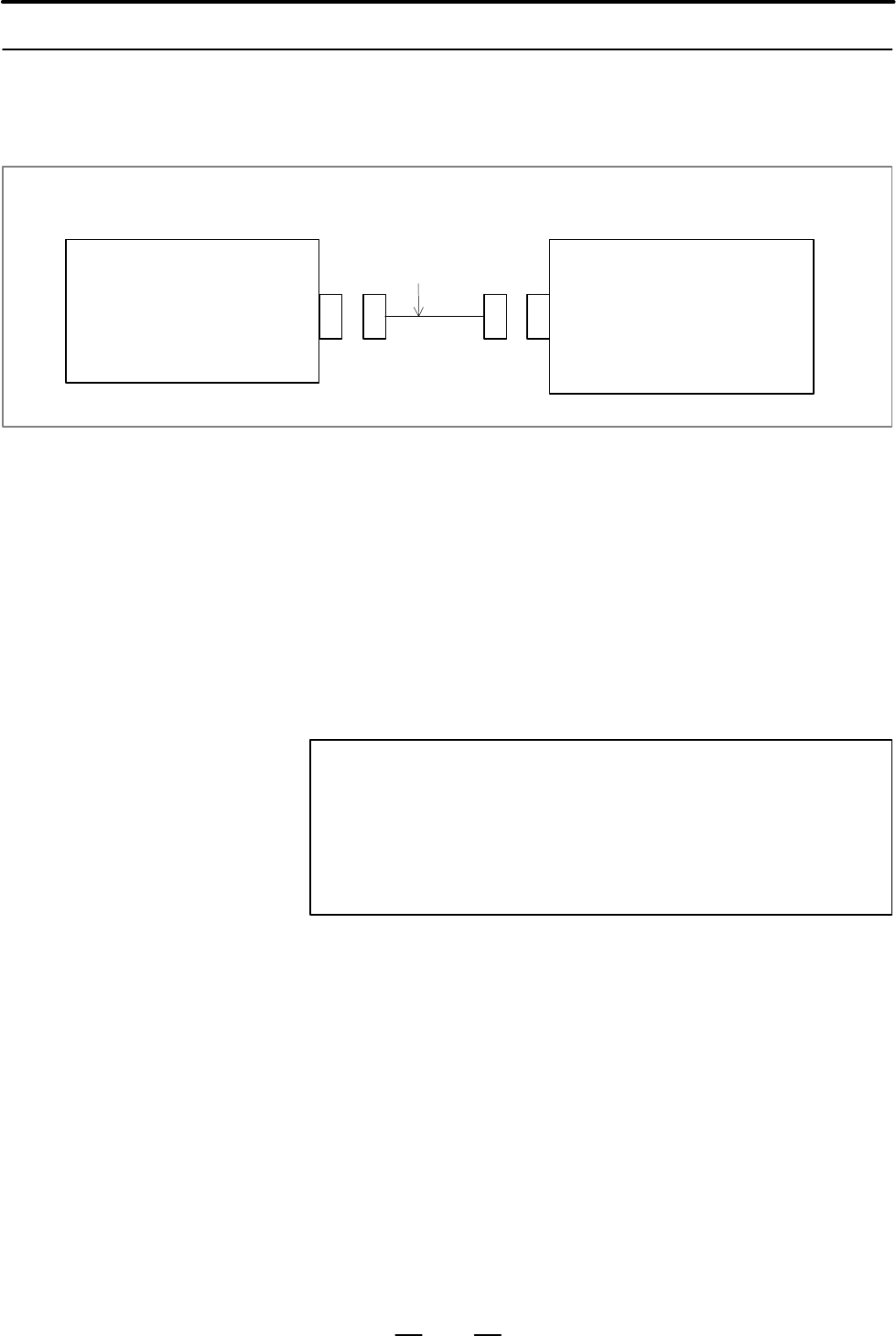

HSSB interface board (CNC side)
COP7
Optical fiber
COP7
Intelligent terminal type 2
1) Recommended cables (optical fiber cables)
Only the following optical fiber cables can be used.
A66L–6001–0026#L1R003: Cable length = 1 m
A66L–6001–0026#L3R003: Cable length = 3 m
A66L–6001–0026#L5R003: Cable length = 5 m
A66L–6001–0026#L7R003: Cable length = 7 m
A66L–6001–0026#L10R03: Cable length = 10 m
A66L–6001–0026#L15R03: Cable length = 15 m
A66L–6001–0026#L20R03: Cable length = 20 m
A66L–6001–0026#L30R03: Cable length = 30 m
A66L–6001–0026#L50R03: Cable length = 50 m
A66L–6001–0026#L100R3: Cable length = 100 m
NOTE
1 The high–speed serial bus cannot use an optical fiber cable
designed for the FANUC I/O link, FSSB extension line, or
serial spindle.
2 Machine tool builders cannot cut or extend optical fiber
cables. Select an appropriate type from the above list.
9.7.4
High–speed Serial Bus
(HSSB)
