B–63003EN/04
15. CONNECTING TO THE INTEGRATED TYPE
Series 160is/180is/210is
401
(ii)Installation of backup unit
Install the backup unit either on the rear side of the MDI unit or in the
pendant box housed in the CNC body.
The backup unit uses parts that have a fixed service life. So, decide on
an installation position where the backup unit can be easily replaced.

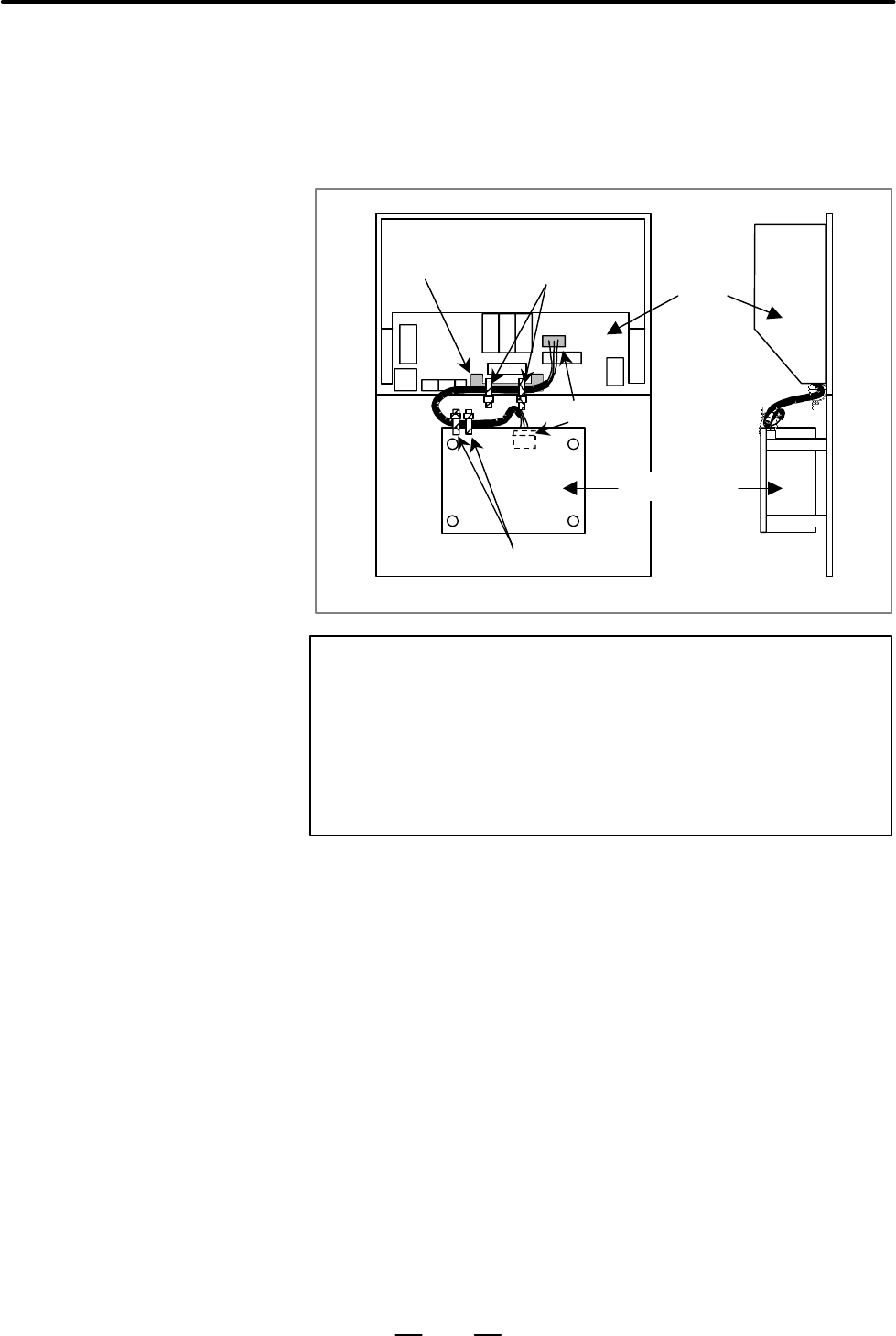

(Example of installation on rear side of MDI unit)
Clamp fixture
Clamp
Clamp
Connector
CNC body
Backup unit
NOTE
1 As the fitting on the connector of the backup unit cable is a
simple lock type, be sure to clamp near to the connector as
shown in the figure to prevent the connector from being
tugged by the cable’s weight.
2 M4 screw holes are drilled on the rear of the MDI unit for
installation.
