9. FANUC INTELLIGENT TERMINAL TYPE 2
B–63003EN/04
208

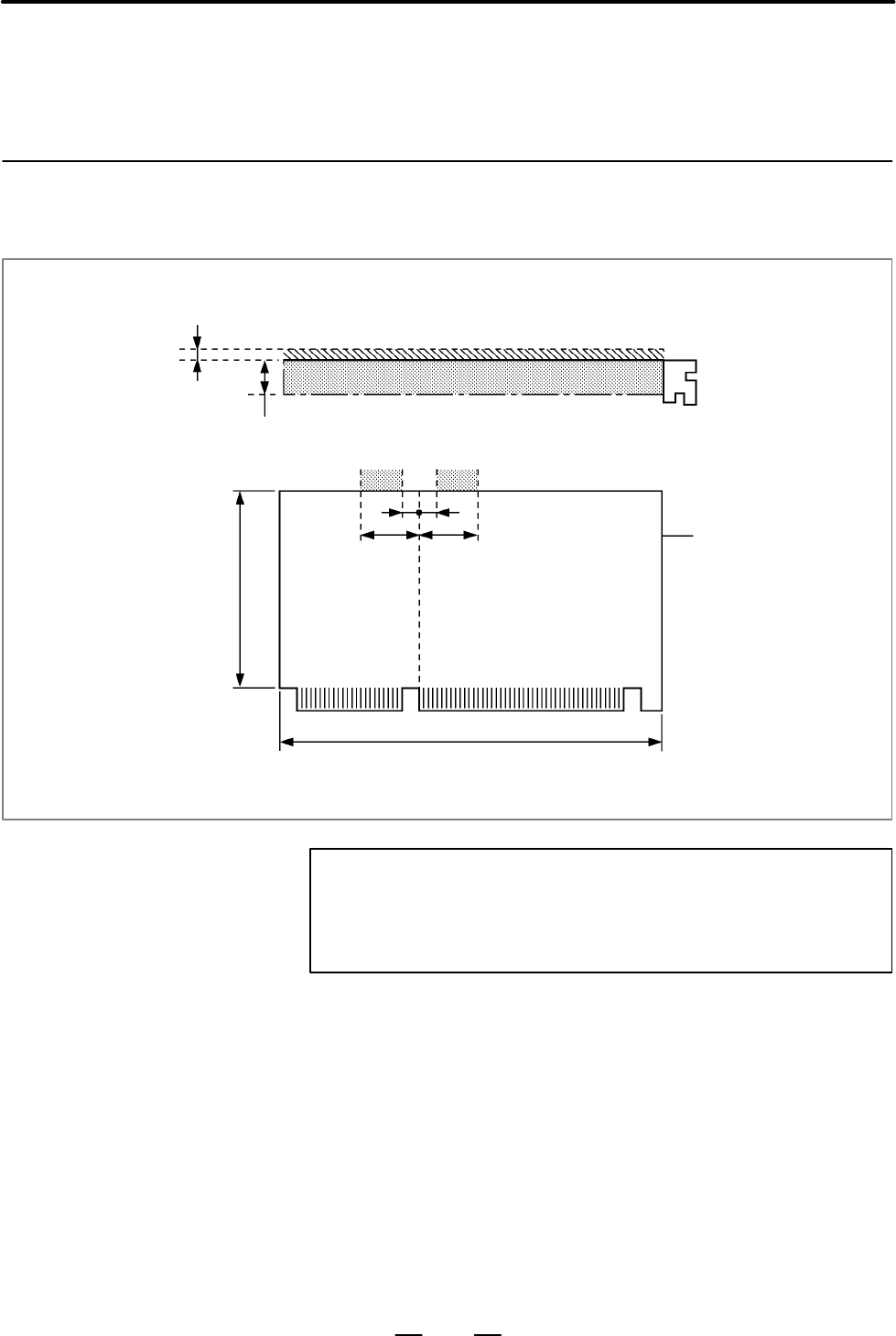

(1)Usable boards
Up to two ISA expansion boards (shown below) can be used in
intelligent terminal type 2.
Components installed on the rear surface of
the board may not be taller than 3.81 mm.
Components installed on the front surface of the board
may not be taller than 13.34 mm.
Portions held with damping metal fixtures
170 mm or less
55
20 20
Unit : mm
Between 79 mm and
113 mm (inclusive)
(If the board size does
not fall within the range
stated above, it can not
be held with damping
metal fixtures.
NOTE
FANUC does not guarantee the normal operation of any
commercial ISA expansion board and is not responsible for
its maintenance.
(2)ISA expansion board installation procedure
(See the following diagram.)
a) Remove the damping metal fixtures.
b) Fully insert the board into the connector.
c) Fasten the board with the provided screws.
d) Screw down the damping metal fixtures while holding them
against the board.
If more than one ISA expansion board is installed, the board
installed in slot A must be shorter than that installed in slot B;
otherwise, it will be impossible to hold both with damping metal
fixtures.
9.8
ISA EXPANSION
BOARD
9.8.1
Installation Method
