1. Fanuc
  2. Series 16i/18i/21i/20i/160i/180i/210i/160is/180is/210is - Model A

Series 16i/18i/21i/20i/160i/180i/210i/160is/180is/210is - Model A Connection manual (Hardware) Page 389

Connection manual (Hardware)
10. CONNECTION TO FANUC I/O Link
B–63003EN/04
374
English
indication

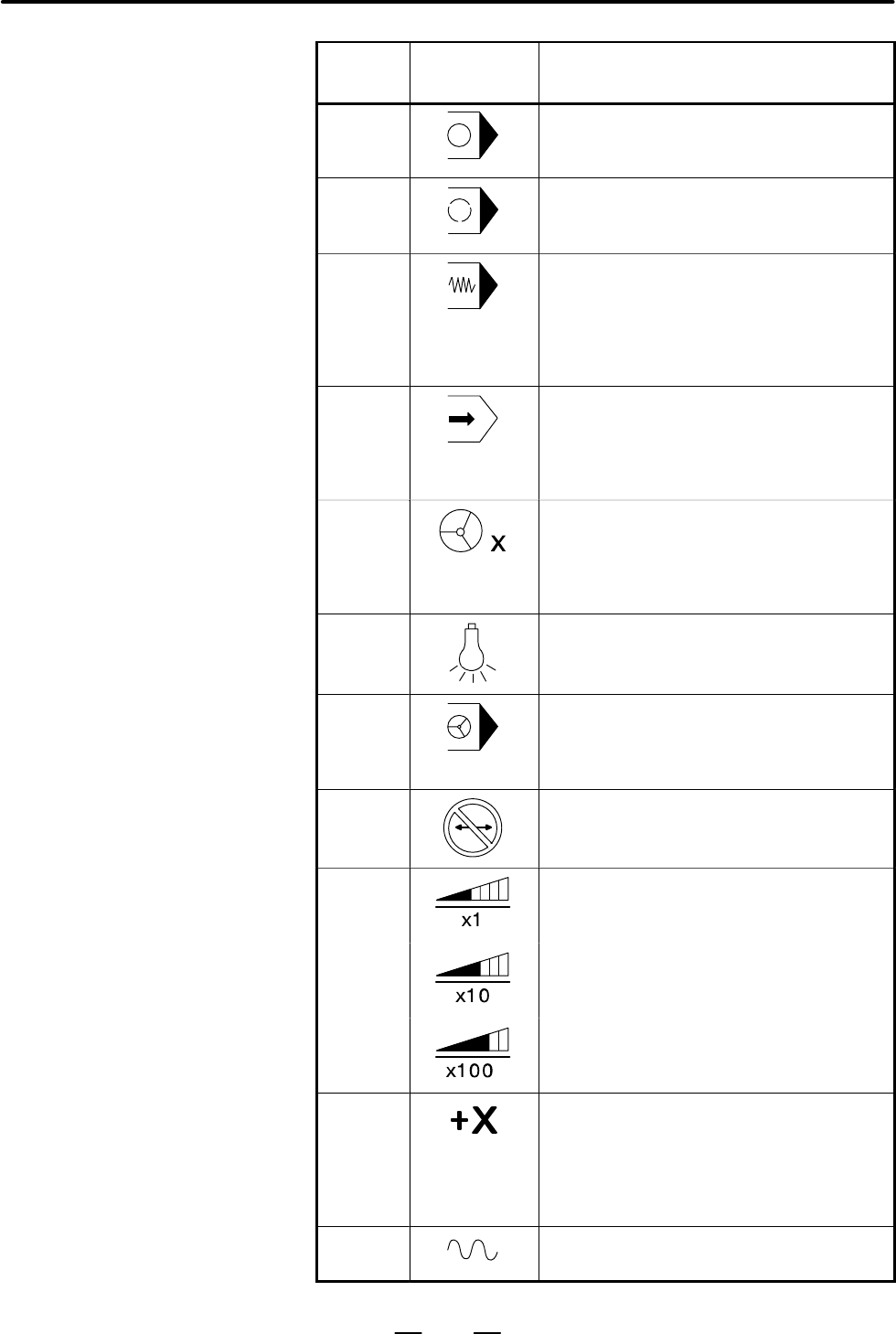

Meaning of keySymbol
indication
PRG
STOP
Program stop (output only): Turns on the LED on
the button when automatic operation is stopped
by M00 specified in the program.
OPT
STOP
Optional stop: Stops automatic operation after
execution of the block of a program where M01
is specified, when this button is pressed.
DRY
RUN
Dry run: Sets the axis feedrate to the jog feedrate
instead of a programmed feedrate when
automatic operation is performed by setting this
button to on. This function is used to check only
the movement of the tool when no workpiece is
mounted.
PRG
TEST
Machine lock: Updates only position display on
the screen without making any axis movement,
when automatic operation is performed by
setting this button to on. This function is used to
check a program.
MPG
X
Manual handle feed X–axis selection: Performs
movement along the X–axis when this button is
set to on in manual handle feed mode. (The
same operation is performed for the Y–axis,
Z–axis, C–axis, and four axes).
WORK
LIGHT
Workpiece light: Illuminates the workpiece.
MPG
INTRT
Manual handle interrupt: Adds the amount of
travel made by turning the manual handle to the
amount of travel specified in the program, when
this button is set to on in manual operation.
AXIS
INHBT
Axis movement inhibition: Inhibits movement on
a particular axis or all axes.
LOW
X1
Upper) Jog feed (step feed) override: Overrides
jog feed (or step feed).
Five–step indication
MEDL
X10
Lower) Manual handle feed magnification:
Magnification for manual handle feed.
Magnified by 1, 10, 100, 1000.
MED
X100
etc.
+X Manual feed axis direction selection: Performs
movement along the selected axis in the
selected direction by jog feed (or step feed) when
this button is set to on in the jog feed mode (or
step feed mode). (The same operation is
performed for –X, +Y, –Y, +Z, and so forth.)
TRVRS Traverse: Performs jog feed at rapid traverse
rate when this button is set to on.
Previous page
Next page
