FANUC I/O Unit-MODEL A Connection And Maintenance Manual Page 139

Connection And Maintenance Manual
11. I/O LINK DUMMY UNIT CONNECTIONS B-61813E/03
−130−

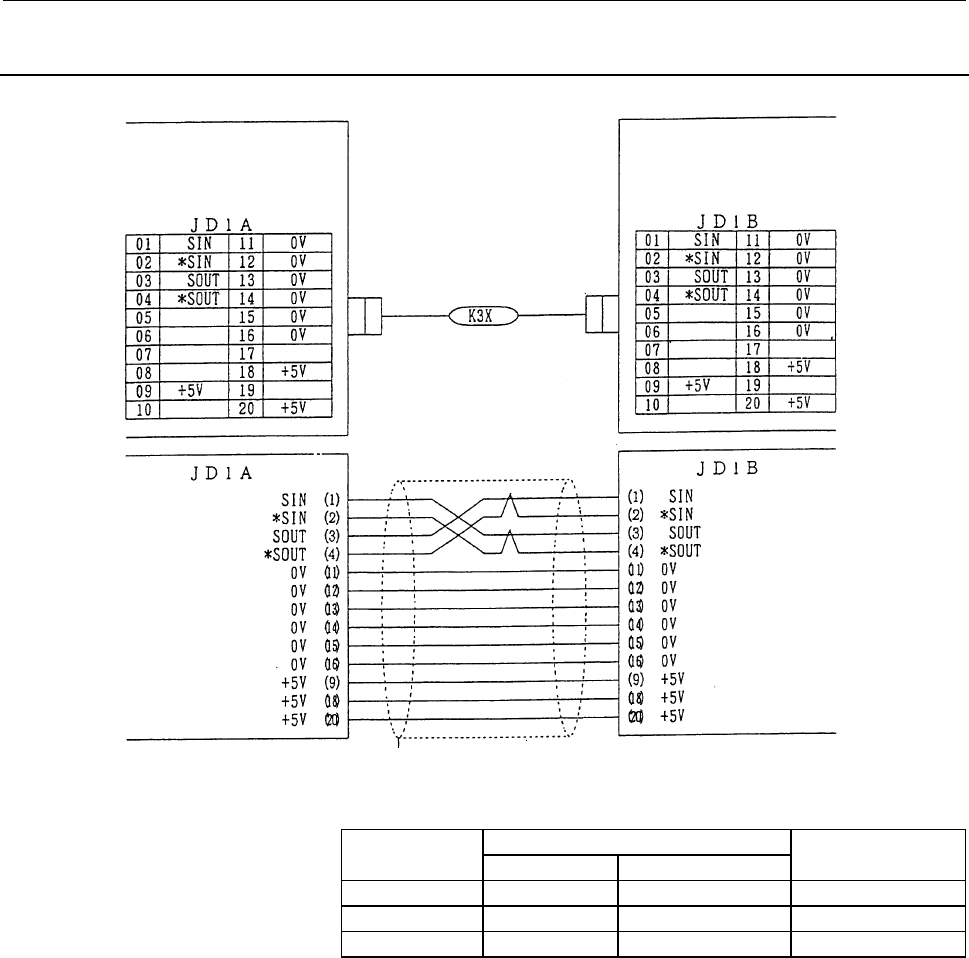

11.7.4 K3X cable
• Cable connector
PinManufacturer
Soldering type Crimping type
Housing
Honda Tsushin PCR-E20FS PCR-E20FA PCR-V20LA
Hirose Electric FI-40-20S FI-30-20S FI-20-CV2
Fujitsu - FCN-247J020-G/E FCN-240C020-Y/S
• Use twisted-pair wires for the SIN, *SIN, SOUT, and *SOUT
signals.
• Recommended wires : A66L-0001-0284#10P (twisted-pair wires
with common shielding)
• Maximum cable length : 2 m (when recommended wires are used)
• Do not connect a wire to an idle pin.
• Connect the cable shielding to the grounding plate of the cabinet
via a metal cable clamp at JD1A. (See the applicable CNC or cell
controller connection manual.)
CNC, cell controller,
A
IF01A, etc., or FANUC I/O
Link dumm
y
unit
FANUC I/O Link dummy
unit, AIF01A, or the like
Connector (see the diagram
below.)
