FANUC I/O Unit-MODEL A Connection And Maintenance Manual Page 46

Connection And Maintenance Manual
B-61813E/03 CONNECTIONS 5. DIGITAL INPUT/OUTPUT MODULES
−37−
(7) Input module AID16L
Item Specifications
Points/module 16 points
Points/common 16 points/common
Sink/source current Source current type
Input voltage 24VDC +10%, −20%
Input current 7.5mA (average)
ON voltage, current Min. 15VDC, min. 4mA
OFF voltage, current Max. 5VDC, max. 1.5mA
OFF→ON
Max.2msResponse
time
ON→OFF
Max.2ms
This is the value from input to output in the module. The actual value is
determined by adding it to the scanning time depending on each
system.
Input display LED display
External connection Terminal block connector (20 terminals, M3.5 screw terminal)

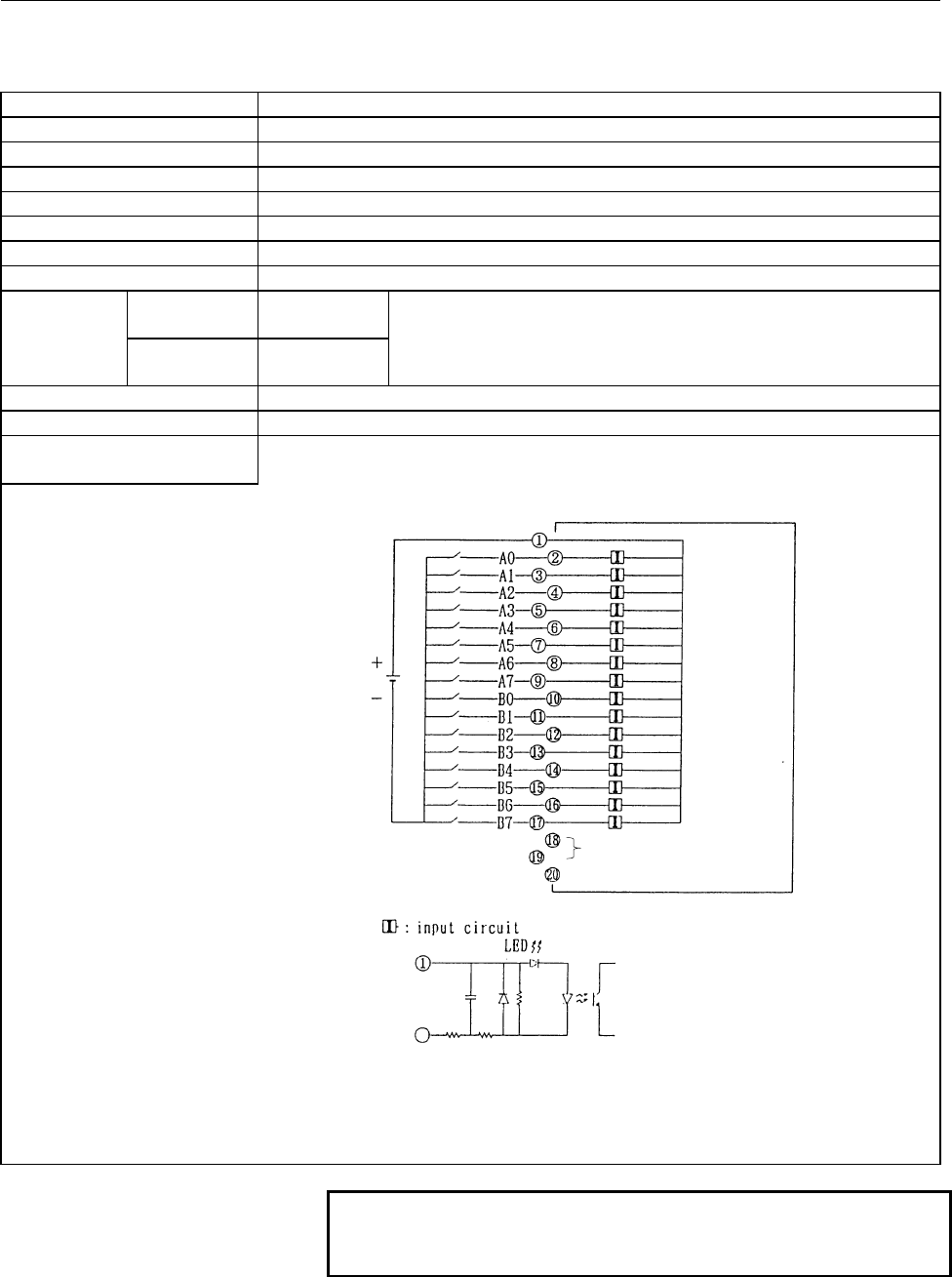

Terminal connection
and circuitry
NOTE
Pins 18 and 19 are for factory use only.
Do not connect any wire to them
(Note)
