FANUC I/O Unit-MODEL A Connection And Maintenance Manual Page 51

Connection And Maintenance Manual
5. DIGITAL INPUT/OUTPUT MODULES CONNECTIONS B-61813E/03
−42−
(12) Input module AIA16G
Item Specifications
Points/module 16 points
Points/common 16 points/common
Sink/source current 100 to 115VAC ±15%
Input voltage 132Vrms, 50/60 Hz
Input current 10.55mArms (120VAC, 50Hz)
ON voltage, current Min. 74Vrms, min. 6mArms
OFF voltage, current Max. 20Vrms, max. 2.2mArms
OFF→ON
Max.35msResponse
time
ON→OFF
Max.45ms
This is the value from input to output in the module. The actual value is
determined by adding it to the scanning time depending on each
system.
Input display LED display
External connection Terminal block connector (20 terminals, M3.5 screw terminal)
Common 16 points/common

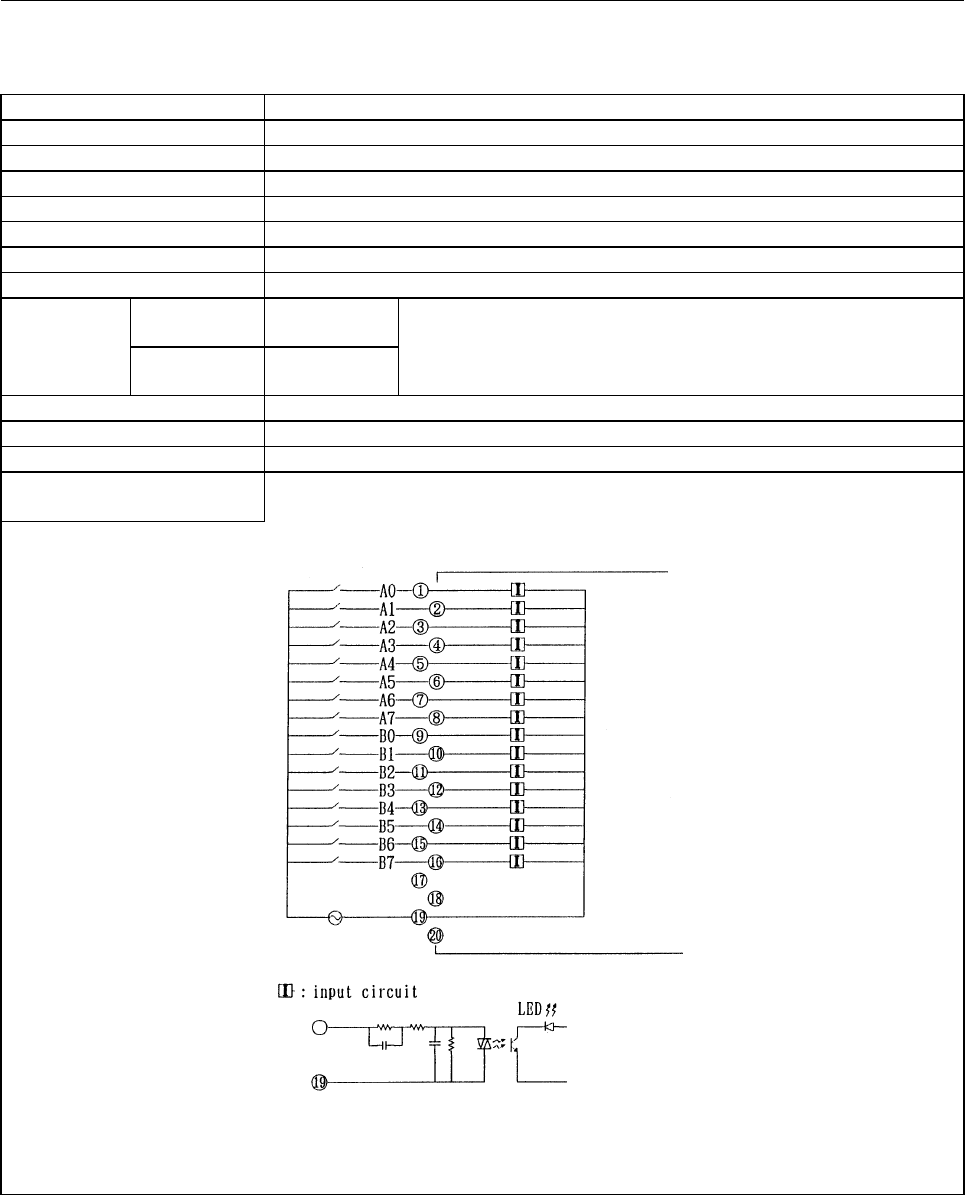

Terminal connection and
circuitry
