(19) Output module AOD32C2
Item Specifications
Points/module 32 points
Points/common 8 points/common
Sink/source current Sink current type
Rated load voltage 12 to 24VDC +20%, −15%
Maximum load current 0.3A (however 2A/common)
Maximum voltage drop when ON 0.24V (load current ×0.8Ω)
Maximum leak current when
OFF
0.1mA
OFF→ON
Max.2ms
Response
time ON→OFF
Max.2ms
Output display Not provided
External connection Connector (HIROSE ELECTRIC HIF3BB-50PA-2.54DS in accordance with MIL
standard)

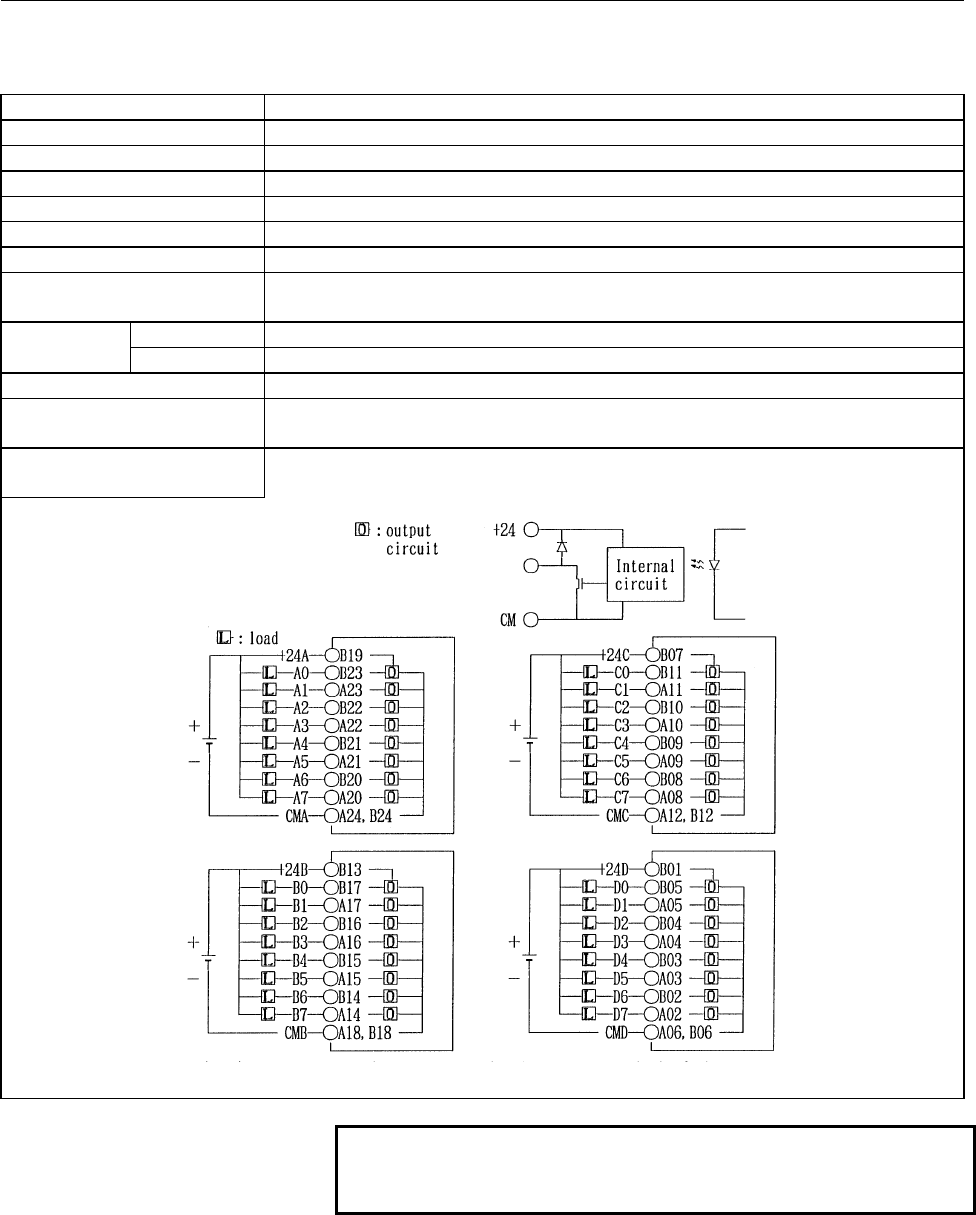

Terminal connection and
circuitry
NOTE
For the common (CMA, CMB, CMC, CMD), make sure
to use both of them.
