FANUC Series 16i/18i/21i-TA/TB Additional Manual Page 29

Additional Manual
A-76286E
Sheet
Title
Draw
No.
16 Apr.19.'04 Addition or Modification of 16)
15 Jul.02.'02 Y.Takeuchi Improvement of status display T.Endo
14 Jun.21.'02 Y.Takeuchi Improvement of status display T.Endo
13 May.27.'02 Y.Takeuchi Addition of status display and improvement of S/T code output T.Endo
12 Mar.18.'02 Y.Takeuchi Availability of direction change movement in auxiliary function T.Endo
11 Jan.22.'02 Y.Takeuchi Availability of Angular axis control and Advanced preview control T.Endo
10 Oct.03.'01 Y.Takeuchi Addition or Modification of "5. About function improvement" T.Endo
Ed.. Date Design Description
Date May.02.’97 Desig. K.Ishida Apprv. T.Nakazato
FANUC Series 16i/18i/21i-TB/TB
Manual Handle Retrace
Specifications
29/40

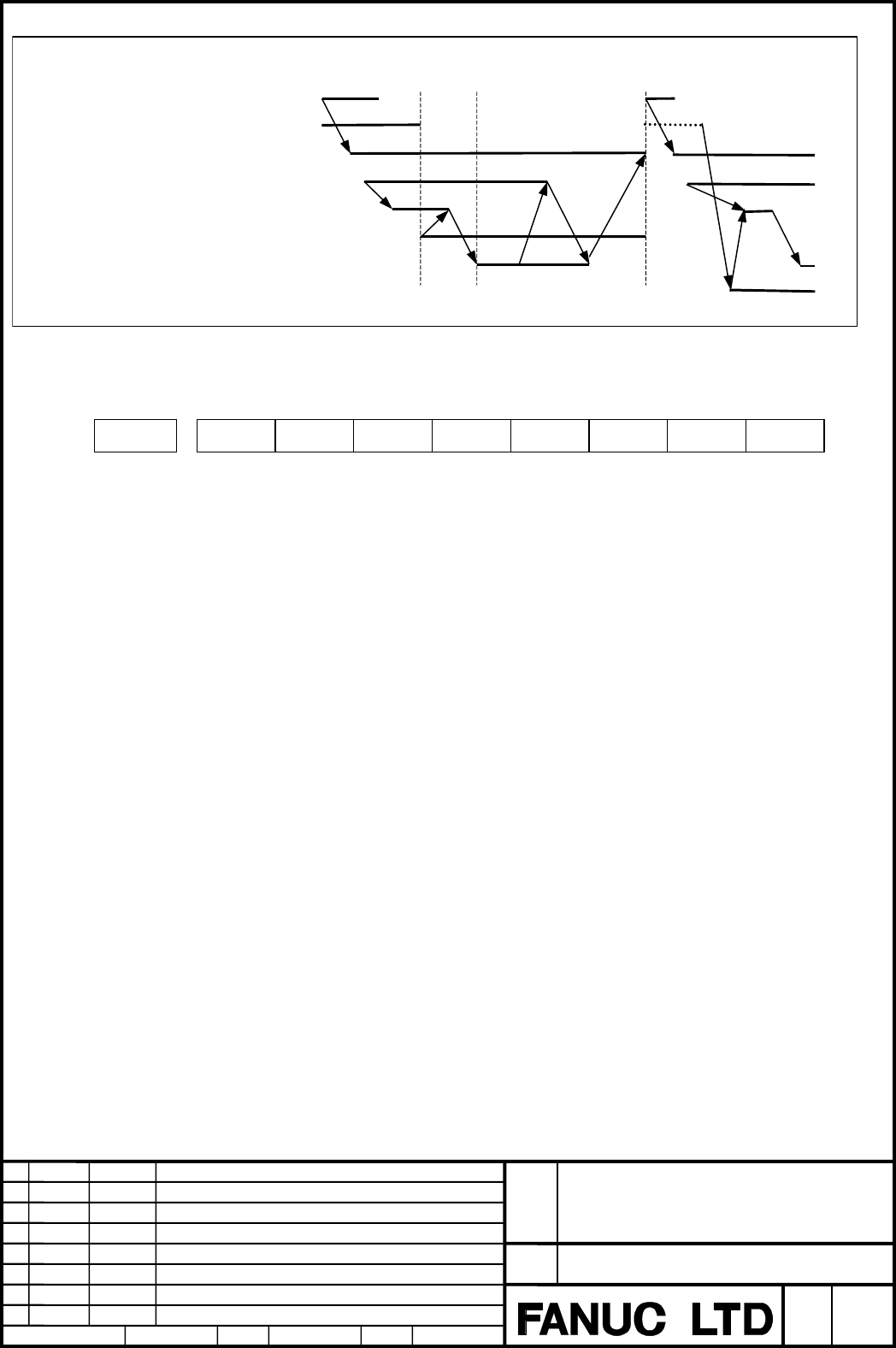

M CODE Mxxx
MOVEMENT COMMAND
M CODE SIGNAL M00～M31
STROBE SIGNAL MF
PMC SIDE OPERATION
DIRECTION CHANGE ENABLE SIGNAL
ADCO
COMPLETION SIGNAL FIN
DISTRIBUTION END SIGNAL DEN
(3) (4) (5)
5.8.3 Parameter
6401 ADC
[Data type] Bit type
ADC In manual handle retrace, when movement command and auxiliary
function (M,S,T,B-code) is commanded with the same block, that block is:
0: direction change prohibition.
1: possible to execute direction change.
5.8.4 Signal
The direction change enable signal of auxiliary function output block
ADCO <F091#5>
[Classification] Output signal
[Function] In manual handle retrace, when movement command and auxiliary
function (M,S,T,B-code) is commanded with the same block, this
signal is output about direction change of movement by manual
handle.
[Output condition] When all of the following condition are filled, this signal is set in "1".
1) The auxiliary function output block direction change parameter
ADC(No6401#0) is set to "1".
2) The movement command and auxiliary function (M,S,T,B-code)
is commanded with the same block.
3) The time until that completion signal FIN<G004#3> which is set
from "1" to "0" by direction change with manual handle.
