FANUC Series 16i/18i/21i-TA/TB Additional Manual Page 33

Additional Manual
A-76286E
Sheet
Title
Draw
No.
16 Apr.19.'04 Addition or Modification of 16)
15 Jul.02.'02 Y.Takeuchi Improvement of status display T.Endo
14 Jun.21.'02 Y.Takeuchi Improvement of status display T.Endo
13 May.27.'02 Y.Takeuchi Addition of status display and improvement of S/T code output T.Endo
12 Mar.18.'02 Y.Takeuchi Availability of direction change movement in auxiliary function T.Endo
11 Jan.22.'02 Y.Takeuchi Availability of Angular axis control and Advanced preview control T.Endo
10 Oct.03.'01 Y.Takeuchi Addition or Modification of "5. About function improvement" T.Endo
Ed.. Date Design Description
Date May.02.’97 Desig. K.Ishida Apprv. T.Nakazato
FANUC Series 16i/18i/21i-TB/TB
Manual Handle Retrace
Specifications
33/40

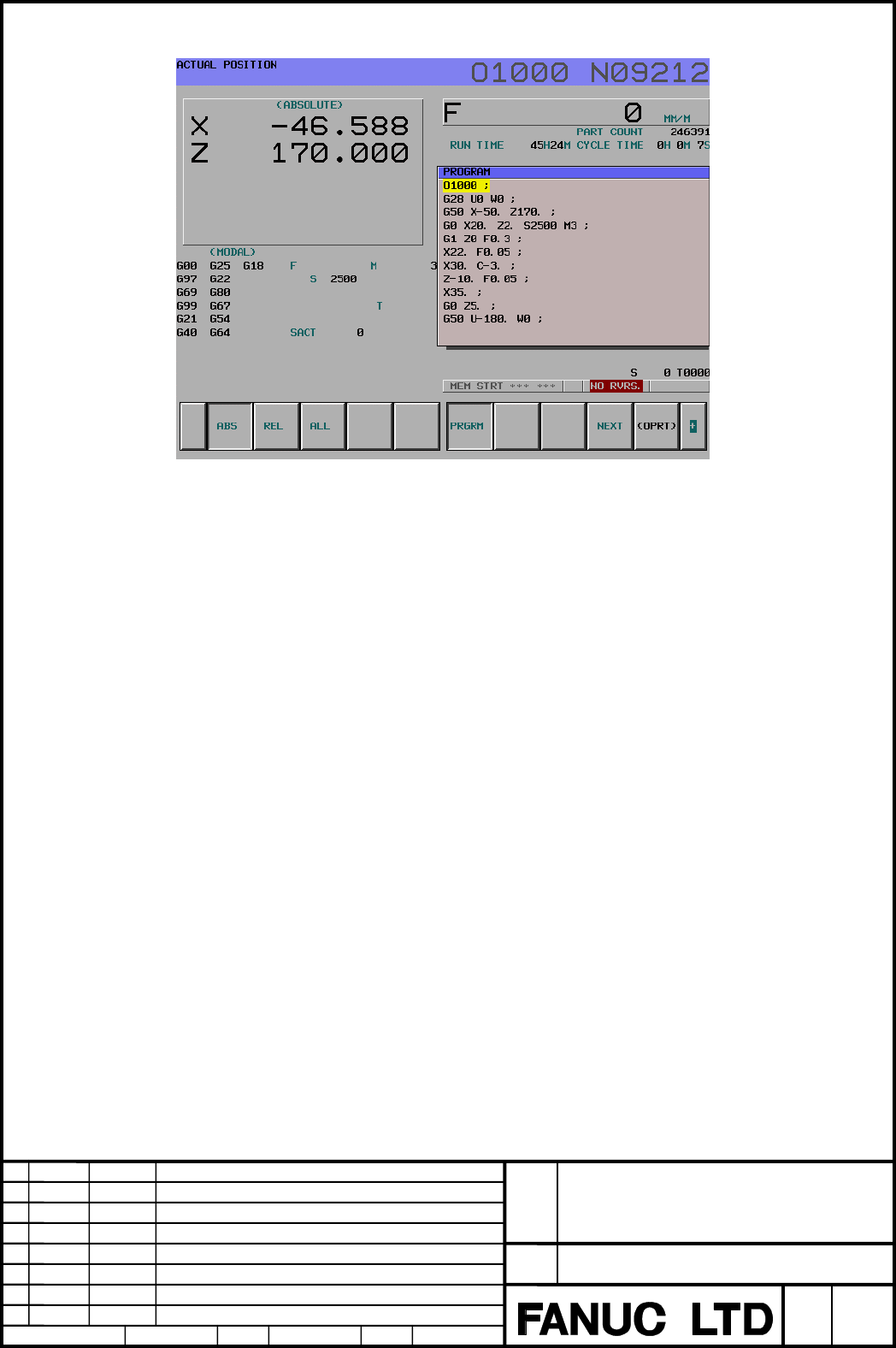

Figure 5.9.2.2. " NO RVRS." status display
Besides, when direction change prohibition signal MNCHG<F0091#1> is set to "1" and the
axis is executed to direction change prohibition by manual handle, this status display
change from "M.H.RTR" to "NO.CHAG".
This status is displayed by blinking/reversing in the color of color number 3 (INPUT KEY,
O/N NO. and STATUS are same color) . The screen display is as shown in Figure 5.9.2.3.
When the axis is executed to the opposite direction of direction change prohibition by
manual handle or direction change prohibition signal MNCHG<F0091#1> is set to "0", the
" M.H.RTR " is displayed again.
Moreover, when parameter HDFWD(No.6400#1) is set to "1" and the axis is executed to
direction change prohibition by manual handle, this status display change from "M.H.RTR"
to "NO.CHAG".
Notice:
When the improvement of direction change movement in auxiliary function output block
is enabled, the state of direction change prohibition signal MNCHG<F0091#1> is set to
"1" and direction change is possible. Therefore please note that the status display of the
direction change prohibition is displayed though it is possible to direction change.
14)
14)
14)
14)
14)
14)
14)
14)
15)
15)
15)
