FANUC Series 16i/18i/21i-TA/TB Additional Manual Page 38

Additional Manual
A-76286E
Sheet
Title
Draw
No.
16 Apr.19.'04 Addition or Modification of 16)
15 Jul.02.'02 Y.Takeuchi Improvement of status display T.Endo
14 Jun.21.'02 Y.Takeuchi Improvement of status display T.Endo
13 May.27.'02 Y.Takeuchi Addition of status display and improvement of S/T code output T.Endo
12 Mar.18.'02 Y.Takeuchi Availability of direction change movement in auxiliary function T.Endo
11 Jan.22.'02 Y.Takeuchi Availability of Angular axis control and Advanced preview control T.Endo
10 Oct.03.'01 Y.Takeuchi Addition or Modification of "5. About function improvement" T.Endo
Ed.. Date Design Description
Date May.02.’97 Desig. K.Ishida Apprv. T.Nakazato
FANUC Series 16i/18i/21i-TB/TB
Manual Handle Retrace
Specifications
38/40

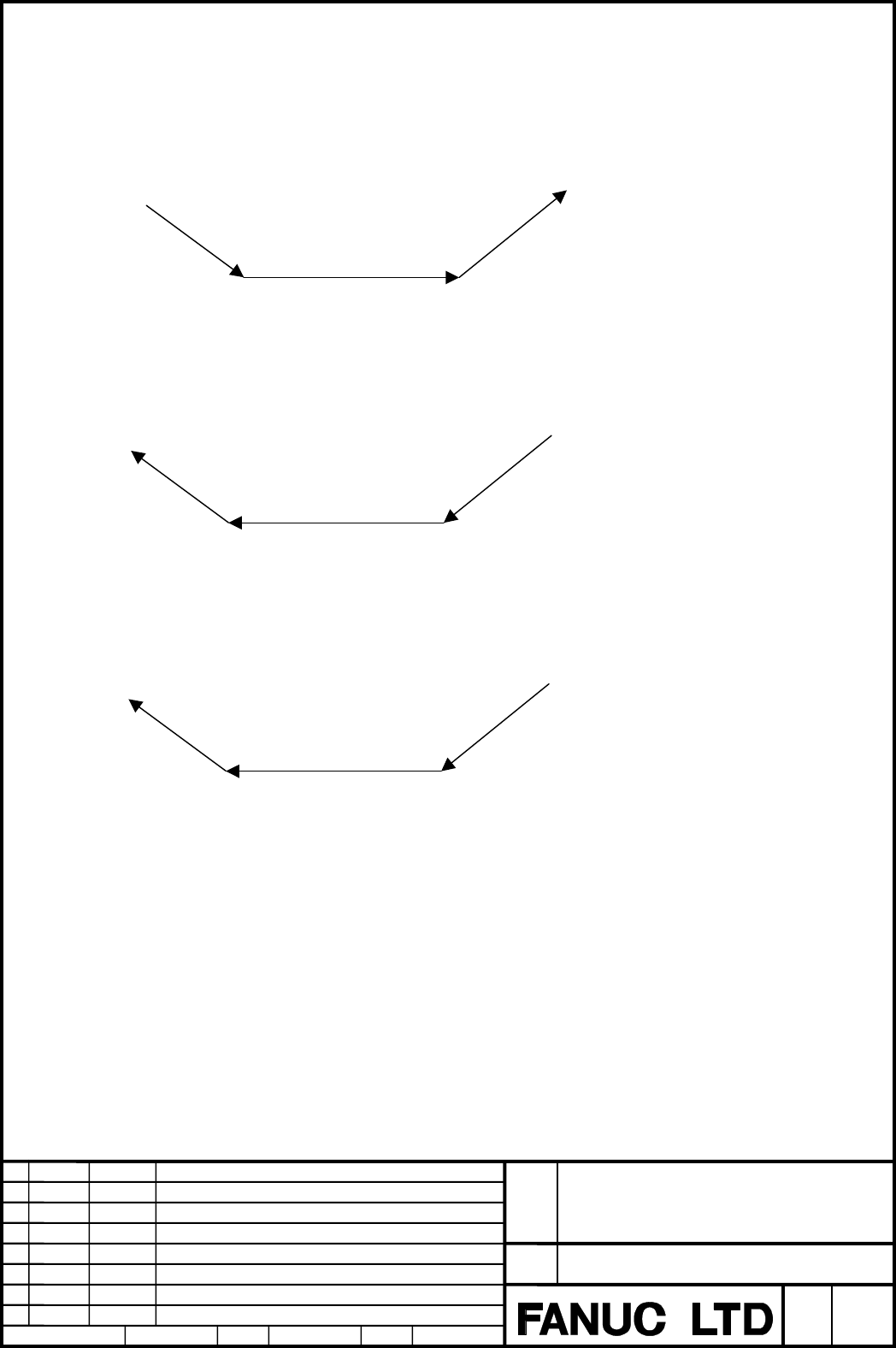

The T code output timing of block N7 and N8 in O1000 shown in the example of the previous
page is as follows.
N6
N7 N8
T33 output
A
t forward movement:
t backward movement before this improvement (When parameter STO is set to "0"):
N6
N7 N8
T22 output
t backward movement after this improvement (When parameter STO is set to "1"):
N6
N7 N8
T33 output
T22 output
