FANUC Series 16i/18i/21i-TA/TB Additional Manual Page 32

Additional Manual
A-76286E
Sheet
Title
Draw
No.
16 Apr.19.'04 Addition or Modification of 16)
15 Jul.02.'02 Y.Takeuchi Improvement of status display T.Endo
14 Jun.21.'02 Y.Takeuchi Improvement of status display T.Endo
13 May.27.'02 Y.Takeuchi Addition of status display and improvement of S/T code output T.Endo
12 Mar.18.'02 Y.Takeuchi Availability of direction change movement in auxiliary function T.Endo
11 Jan.22.'02 Y.Takeuchi Availability of Angular axis control and Advanced preview control T.Endo
10 Oct.03.'01 Y.Takeuchi Addition or Modification of "5. About function improvement" T.Endo
Ed.. Date Design Description
Date May.02.’97 Desig. K.Ishida Apprv. T.Nakazato
FANUC Series 16i/18i/21i-TB/TB
Manual Handle Retrace
Specifications
32/40

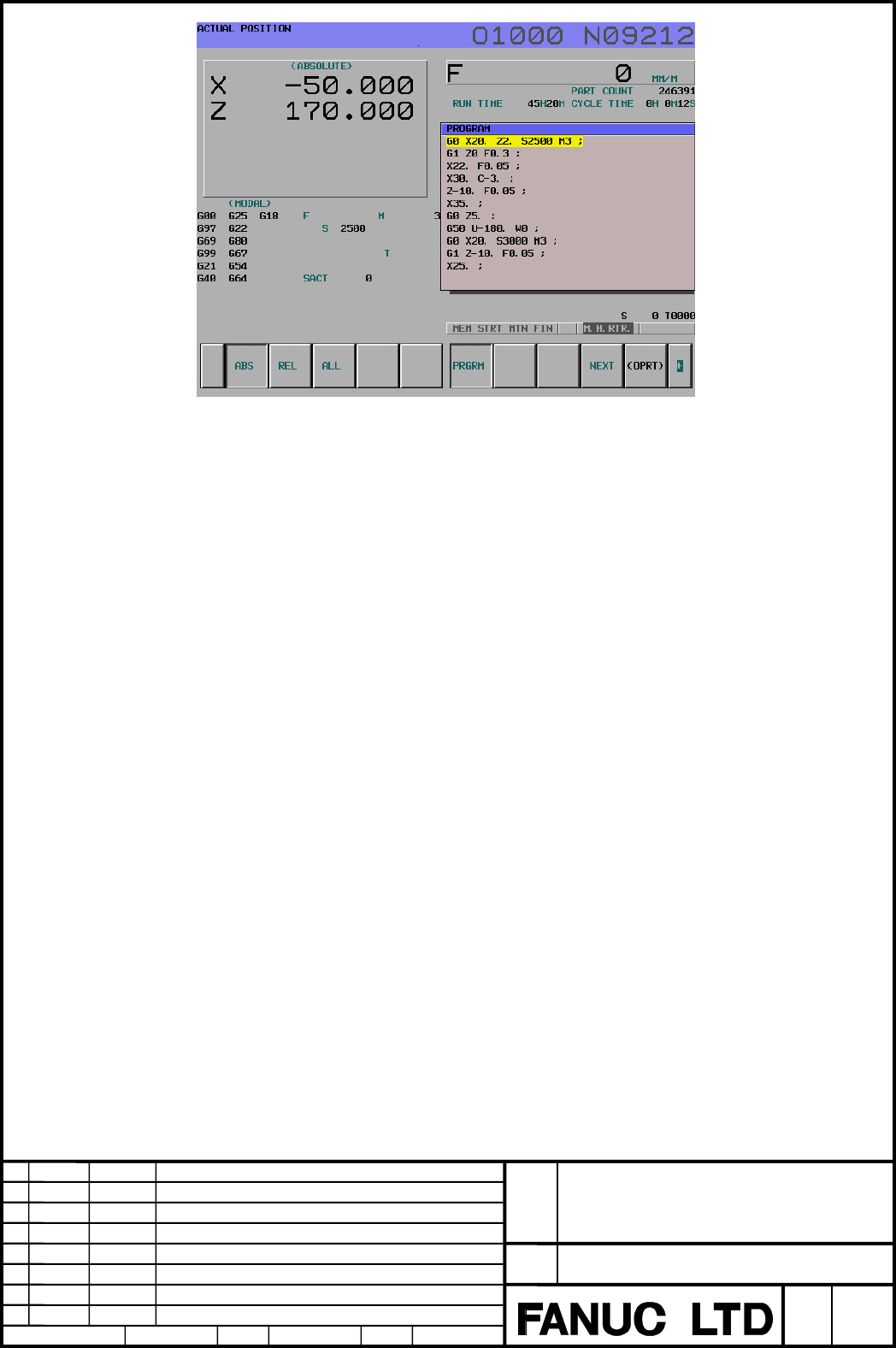

Figure 5.9.2.1. "M.H.RTR." status display
Besides, when reverse movement prohibition signal MRVSP<F0091#2> is set to "1",
the "NO RVRS." is displayed. This status is displayed by blinking/reversing in the color of
color number 1 (ALARM is same color). The screen display is as shown in Figure 5.9.2.2.
When reverse movement prohibition signal MRVSP<F0091#2> is set to "0", the " M.H.RTR
" is displayed again.
