9. SPINDLE SPEED FUNCTION

(S FUNCTION)

PROGRAMMING

103

G96 (constant surface speed control command) is a modal G code. After

a G96 command is specified, the program enters the constant surface

speed control mode (G96 mode) and specified S values are assumed as a

surface speed. A G96 command must specify the axis along which

constant surface speed control is applied. If address P is omitted, P0 is

assumed. A G97 command cancels the G96 mode. If an S value is

omitted in a G97 block, the last speed specified in the G96 mode remains

valid. When constant surface speed control is applied, a spindle speed

higher than the value specified in G92S_; (maximum spindle speed) is

clamped at the maximum spindle speed. When the power is turned on,

the maximum spindle speed is not yet set and the speed is not clamped.S

(surface speed) commands in the G96 mode are assumed as S = 0 (the

surface speed is 0) until M03 (rotating the spindle in the positive

direction) or M04 (rotating the spindle in the negative direction) appears

in the program.

The spindle speed (rpm) almost coin-

cides with the surface speed (m/min)

at approx. 160 mm (radius).

Radius of work

0 20 40 60 80 100 120 140 160 180 200 220 240 260 280 300

(n)

3000

2800

2600

2400

2200

2000

1800

1600

1400

1200

1000

800

600

400

200

Spindle speed (rpm)

100

200

300

400

S 600m/min

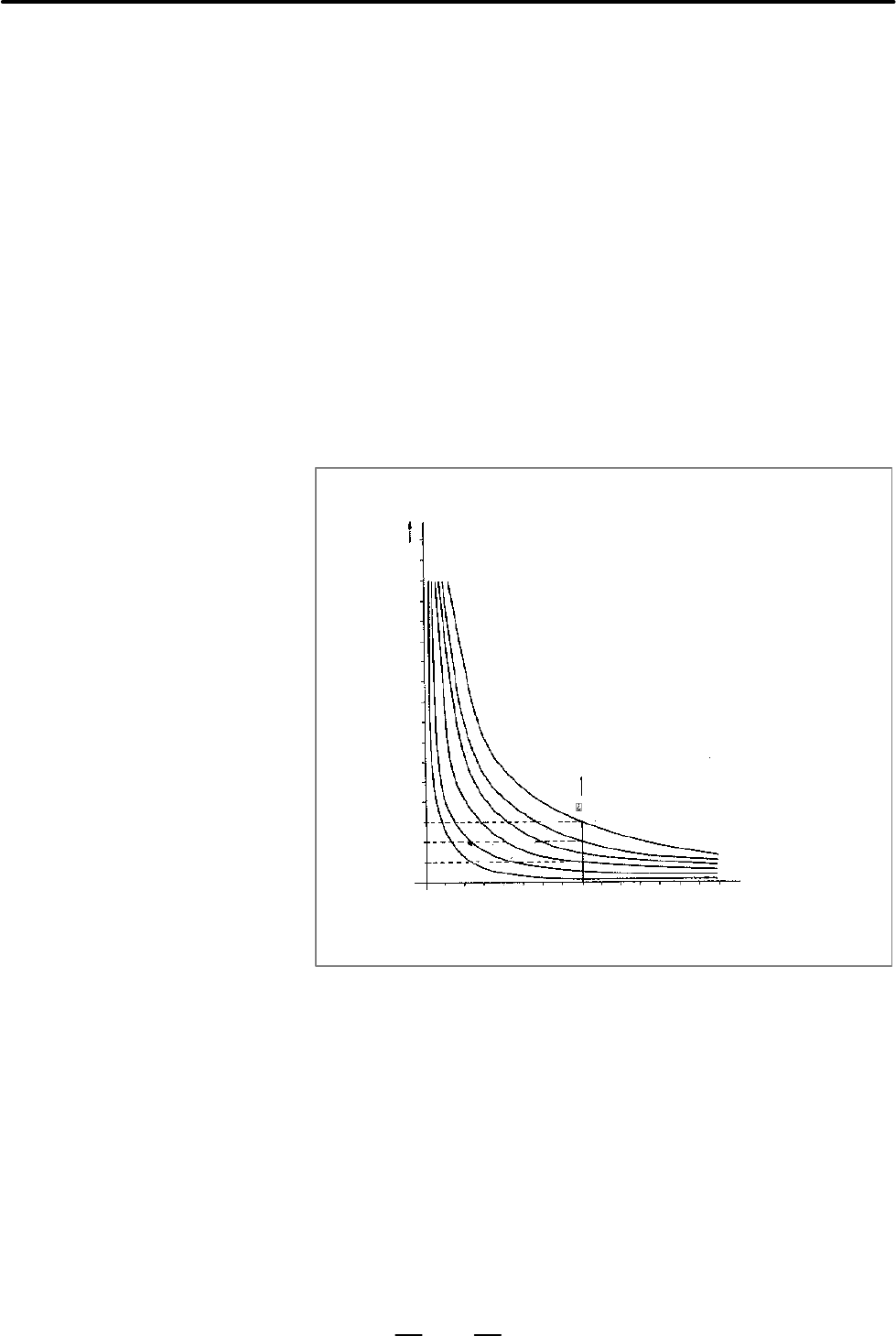

Fig. 9.3 (a) Relation between workpiece radius, spindle speed

and surface speed

Explanations

D Constant surface speed

control command (G96)
