FANUC SERIES 0/00/0-MATE Operators manual Page 96

Operators manual

Page of 719

/ 719

B–61404E/08

5. FEED FUNCTIONSPROGRAMMING

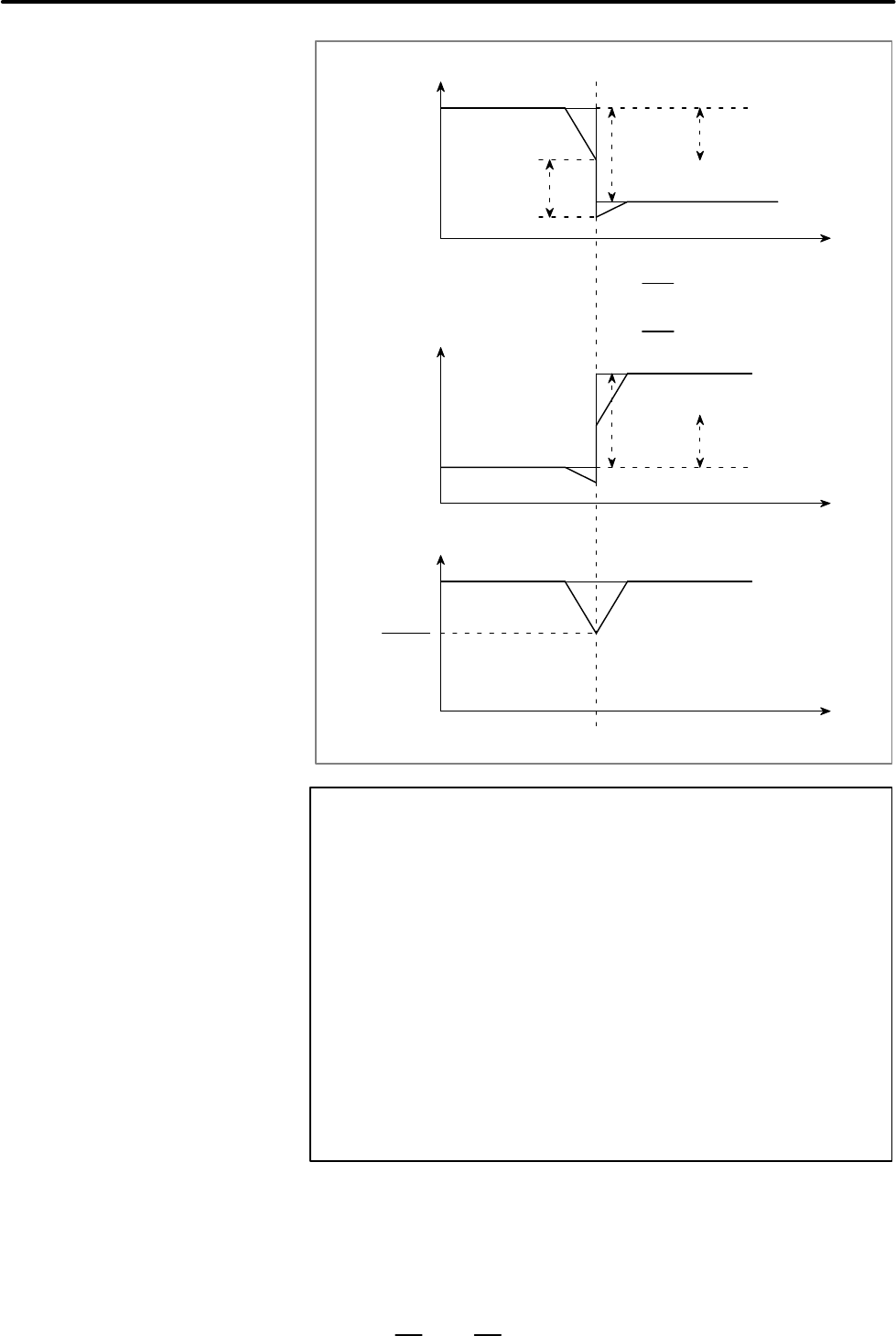

Vmax

Vc [X] Vmax

Vc [Y] Vmax

Rmax

N1 N2 t

When the feedrate is not

reduced at the corner

When the feedrate is

reduced at the corner

Feedrate along X–axis

Feedrate along Y–axis

Feedrate along tangent

NOTE

1 A feedrate difference comparison between machining

blocks is made for each of the X–axis, Y–axis, Z–axis, and

4th axis. Even during dry run operation or external

deceleration, a feedrate difference check is made by coding

an F command in the program.

2 When G09 (exact stop) is specified, exact stop operation is

performed, regardless of the parameter settings.

3 This function cannot be used with a command based on

feed per rotation, the F 1–digit command, rigid tapping

command, or single block operation.

4 If an override change is applied during operation, the

feedrate difference cannot be checked correctly.
