4. INTERPOLATION FUNCTIONSPROGRAMMING

Straight threads with a constant lead can be cut. The position coder

mounted on the spindle reads the spindle speed in real–time. The read

spindle speed is converted to the feedrate per minute to feed the tool.

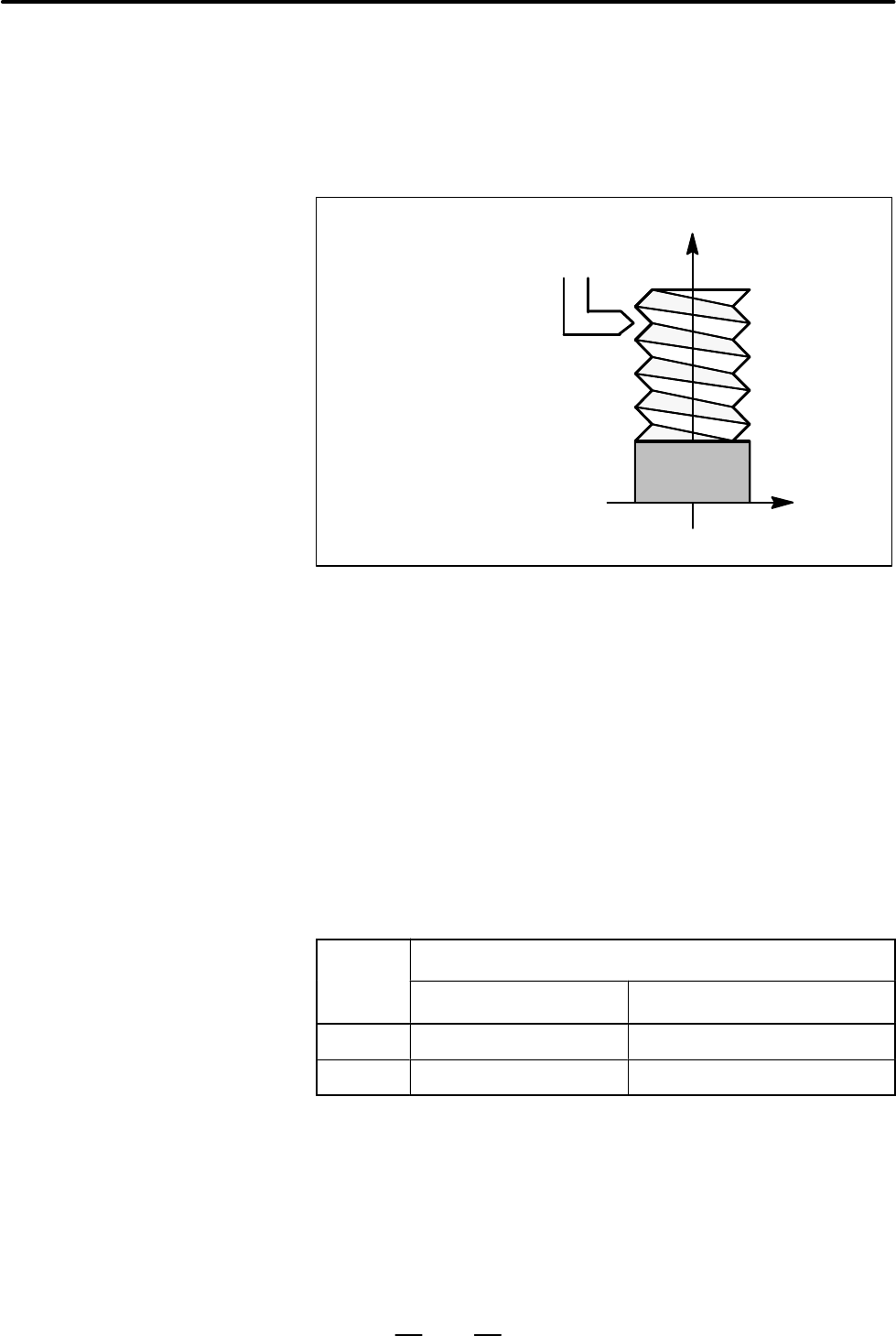

F : Long axis direction lead

G33 _ F_ ;

Workpiece

In general, thread cutting is repeated along the same tool path in rough

cutting through finish cutting for a screw. Since thread cutting starts when

the position coder mounted on the spindle outputs a 1–turn signal,

threading is started at a fixed point and the tool path on the workpiece is

unchanged for repeated thread cutting. Note that the spindle speed must

remain constant from rough cutting through finish cutting. If not,

incorrect thread lead will occur.

In general, the lag of the servo system, etc. will produce somewhat

incorrect leads at the starting and ending points of a thread cut. To

compensate for this, a threading length somewhat longer than required

should be specified.

Table 4.7 lists the ranges for specifying the thread lead.

Table 4.7 Ranges of lead sizes that can be specified

Increment system

IS–B IS–C

mm input 0.01 to 500.00 mm 0.01 to 500.00 mm

Inch input 0.0001 to 9.9999 inch 0.0001 to 9.9999 inch

4.7

CONSTANT LEAD

THREADING (G33)

Format

Explanations
