OPERATION

B–61404E/08

12. GRAPHICS FUNCTION

602

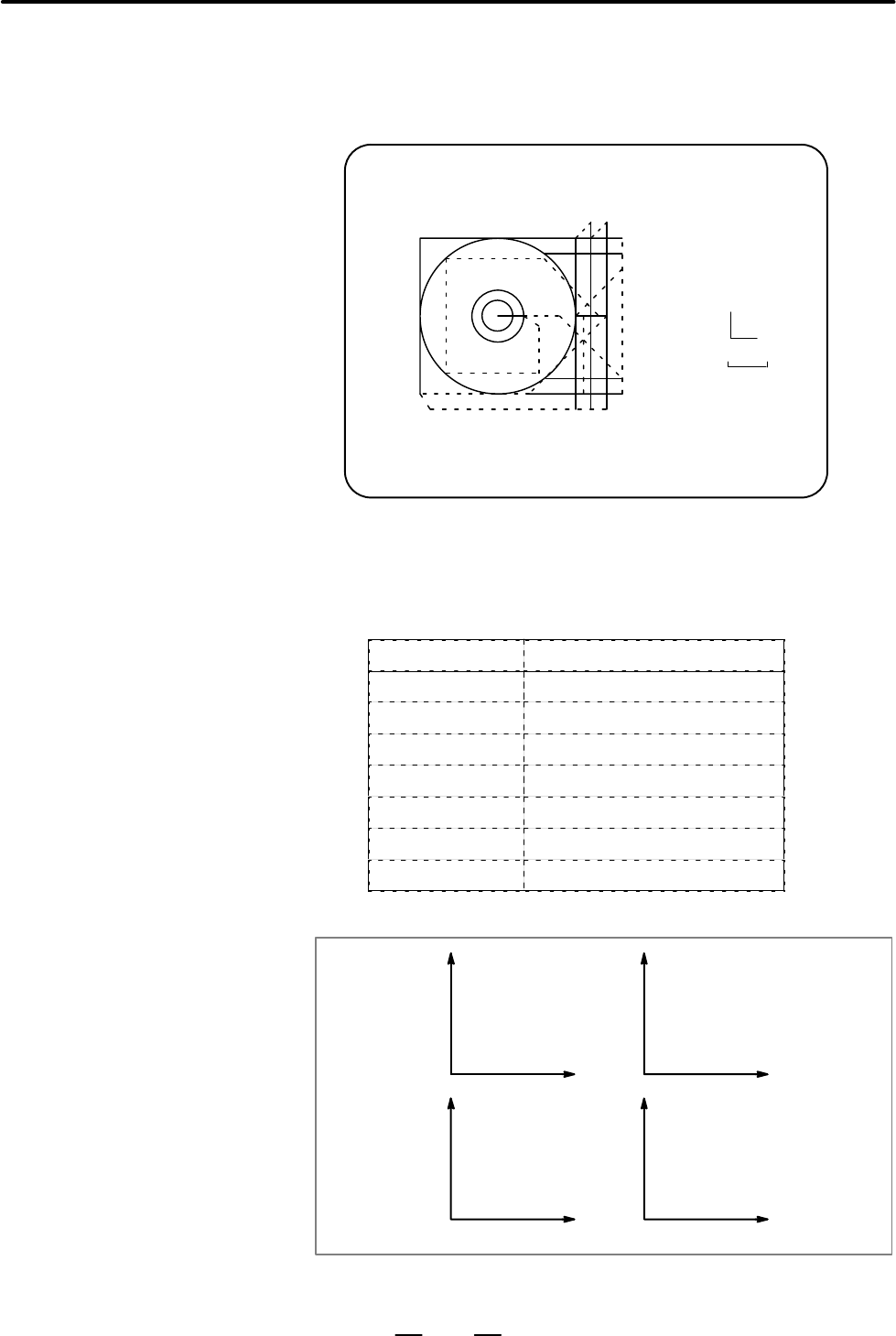

15 To display a mark at the current tool position, display the PATH

GRAPHIC (POSITION) screen by pressing soft key [POS] on the

PATH GRAPHIC (PARAMETER) screen of step 1 above. This mark

blinks at the current tool center position on the tool path.

PATH GRAPHIC (POSITION) O9501 N0014

[ PARA–1 ][ PARA–2 ][ EXEC ][ SCALE ][ POS ]

25.8

The relationship between the setting value and drawing planeis as shown

below:

Setting value Drawing plane

0 Plane view (XY)

1 Plane view (YZ)

2 Plane view (ZY)

3 Plane view (XZ)

4 Isometric projection (XYZ)

5 Isometric projection (ZXY)

6 Biplane view (XY,XZ)

The following coordinate systems are selected.

XY YZ

ZY XZ

P=0 P=1

P=2 P=3

Fig. 12.2.1 (a) Coordinate systems for the plane view

Mark display of current

tool position

Explanations

D Drawing plane

D Plane view (XY,YZ,ZY,XZ)
