PROGRAMMING

B–61404E/08

14. COMPENSATION FUNCTION

238

If the following command is specified in the offset mode, the offset mode

is temporarily canceled then automatically restored. The offset mode can

be canceled and started as described in Subsections 15.6.2 and 15.6.4.

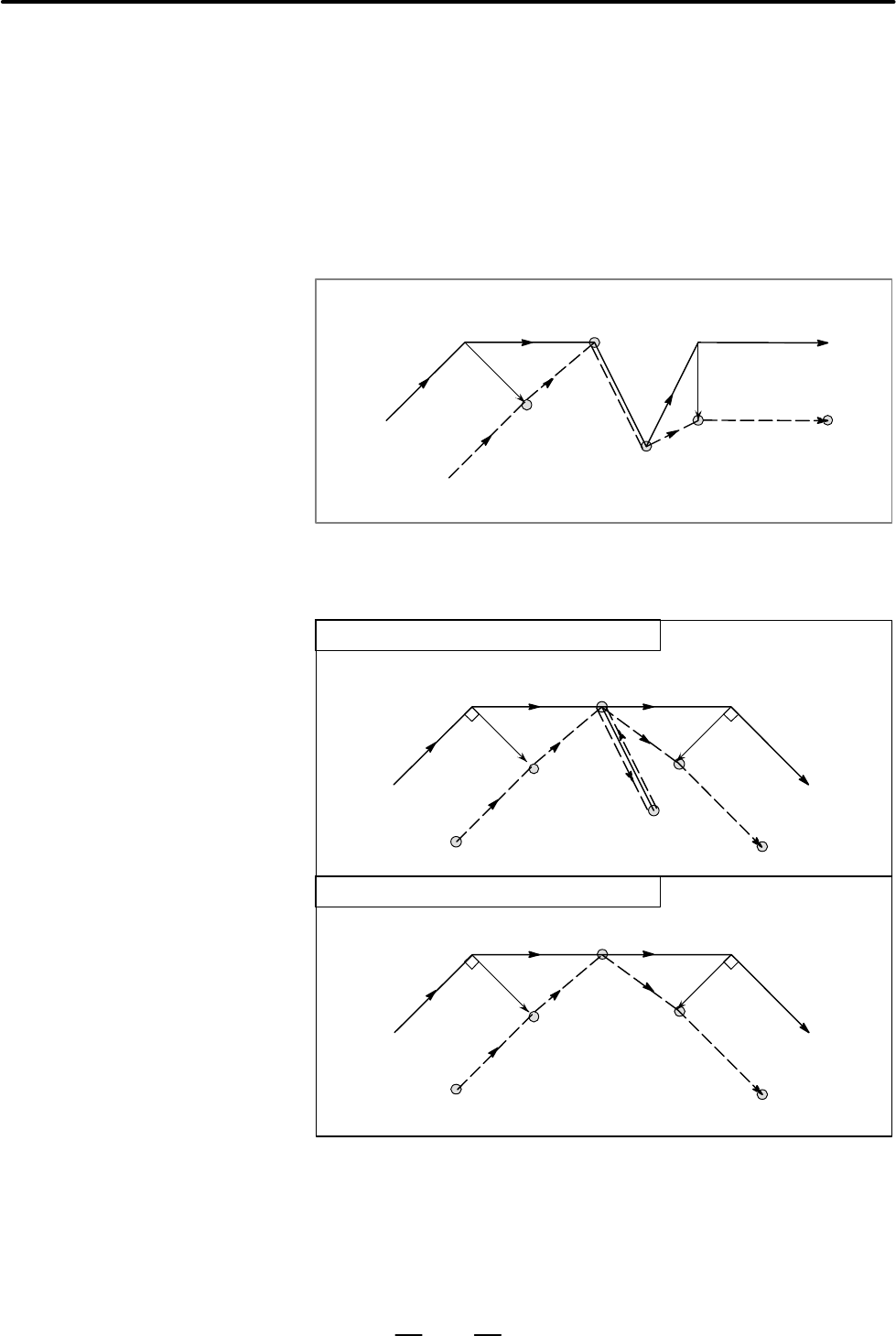

If G28 is specified in the offset mode, the offset mode is canceled at an

intermediate position. If the vector still remains after the tool is returned

to the reference position, the components of the vector are reset to zero

with respect to each axis along which reference position return has been

made.

(G42 G00)

G28

G00

Intermediate position

Reference position

If G29 is commanded in the offset mode, the offset will be cancelled at

the intermediate point, and the offset mode will be restored automatically

from the subsequent block.

G29 specified immediately after G28

(G42 G00)

G28

G00

(G42 G00)

G00

G29

Tool center path

Programmed path

Reference position

Intermediate

position

Intermediate position

Tool center path

Programmed path

G29 specified not immediately after G28

D Temporary cutter

compensation cancel

D Specifying G28

(automatic return to the

reference position) in the

offset mode

D Specifying G29

(automatic return from

the reference position)

in the offset mode
