13. FUNCTIONS TO SIMPLIFY

PROGRAMMING

135

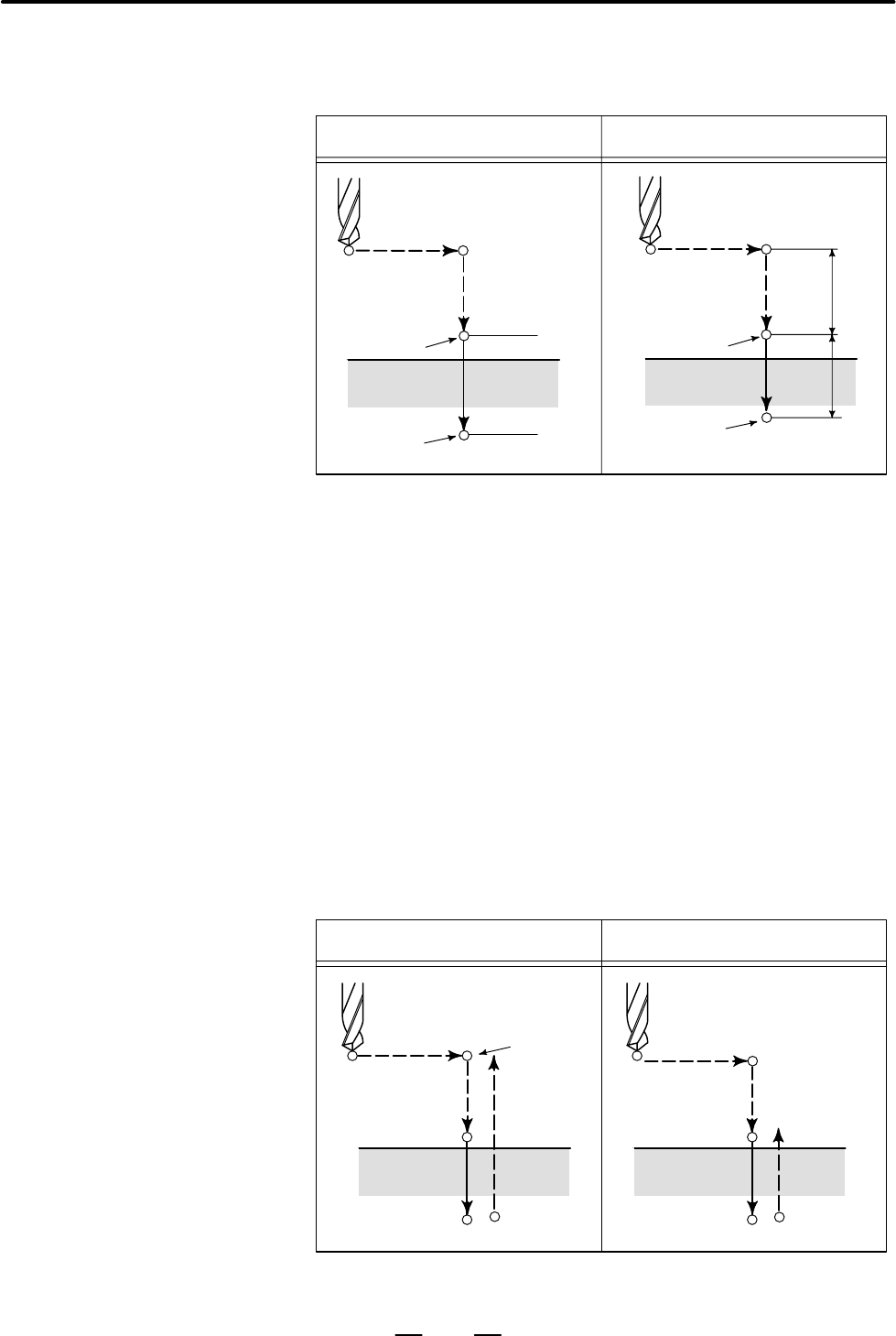

The travel distance along the drilling axis varies for G90 and G91 as

follows:

G90 (Absolute Command)

G91 (Incremental Command)

Point R

Point Z

Point R

Point Z

G73, G74, G76, and G81 to G89 are modal G codes and remain in effect

until canceled. When in effect, the current state is the drilling mode.

Once drilling data is specified in the drilling mode, the data is retained

until modified or canceled.

Specify all necessary drilling data at the beginning of canned cycles; when

canned cycles are being performed, specify data modifications only.

When the tool reaches the bottom of a hole, the tool may be returned to

point R or to the initial level. These operations are specified with G98 and

G99. The following illustrates how the tool moves when G98 or G99 is

specified. Generally, G99 is used for the first drilling operation and G98

is used for the last drilling operation.

The initial level does not change even when drilling is performed in the

G99 mode.

G98(Return to initial level ) G99(Return to point R level)

Initial level

Point R level

D Travel distance along the

drilling axis G90/G91

D Drilling mode

D Return point level

G98/G99
