14. COMPENSATION FUNCTION

218

When the tool is moved, the tool path can be shifted by the radius of the

tool (Fig. 14.5 (a)).

To make an offset as large as the radius of the tool, CNC first creates an

offset vector with a length equal to the radius of the tool (start–up). The

offset vector is perpendicular to the tool path. The tail of the vector is on

the workpiece side and the head positions to the center of the tool.

If a linear interpolation or circular interpolation command is specified

after start–up, the tool path can be shifted by the length of the offset vector

during machining.

To return the tool to the start position at the end of machining, cancel the

cutter compensation mode.

Start–up

Cutter

compensation

cancel

Tool center path

Programmed path

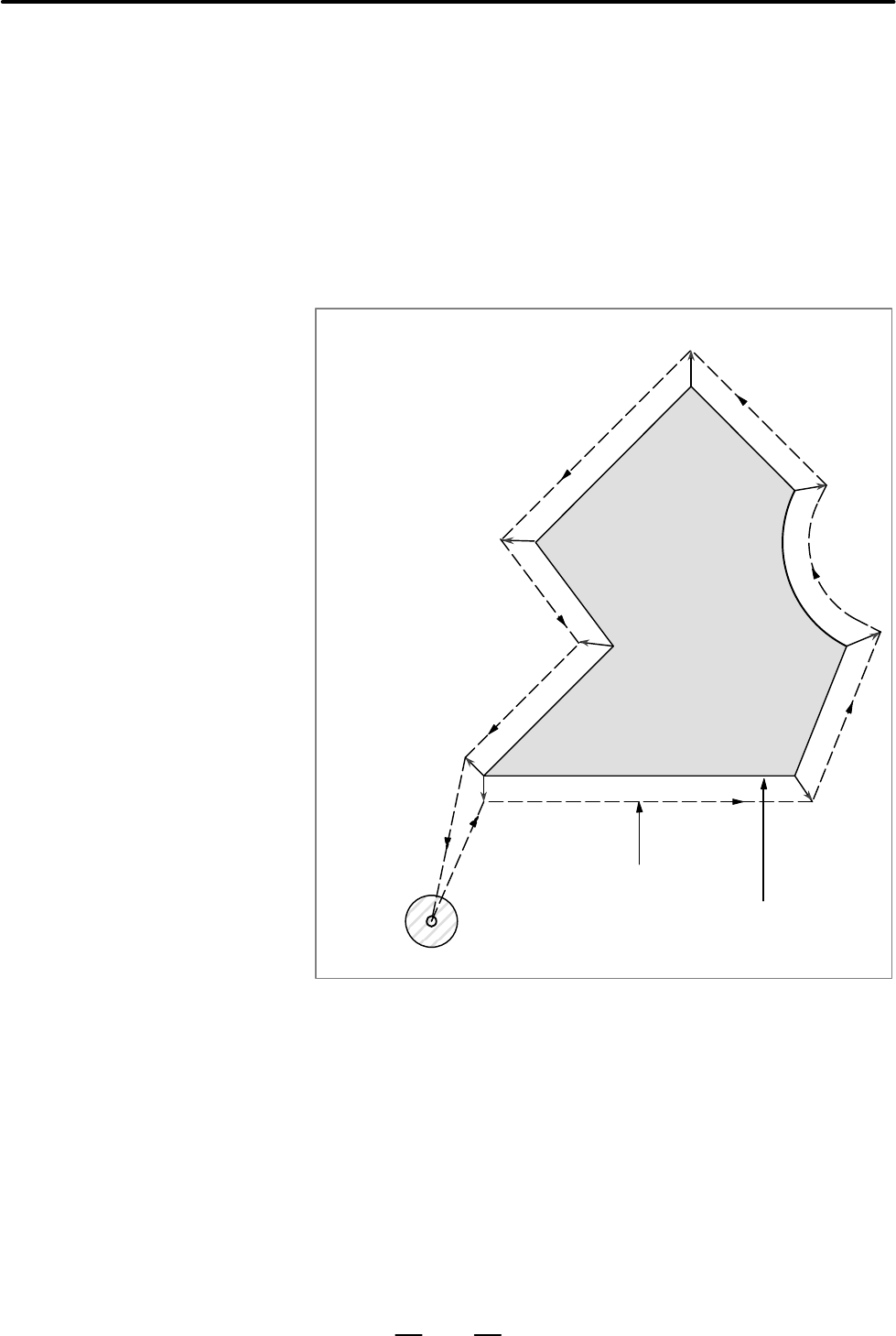

Fig.14.5 (a) Outline of cutter compensation C

In cutter compensation C, an appropriately offset tool path can be

obtained for both the inner and outer corners simply by specifying the

offset direction. Unlike cutter compensation B, programs can easily be

created without having to consider the difference between the outer and

inner corners.

14.5

OVERVIEW OF

CUTTER

COMPENSATION C

(G40 TO G42)
