PROGRAMMING

B–61404E/08

5. FEED FUNCTIONS

An override value is set with parameter No. 214. An override value is

valid even for dry run and F1–digit specification.

In the feed per minute mode, the actual feedrate is as follows:

F × (automatic override for inner corners) × (feedrate override)

For internally offset circular cutting, the feedrate on a programmed path

is set to a specified feedrate (F) by specifying the circular cutting feedrate

with respect to F, as indicated below (Fig. 5.4.3). This function is valid

in the cutter compensation mode, regardless of the G62 code.

Rc : Cutter center path radius

Rp : Programmed radius

It is also valid for the dry run and the one–digit F command.

Programmed path

Cutter center

path

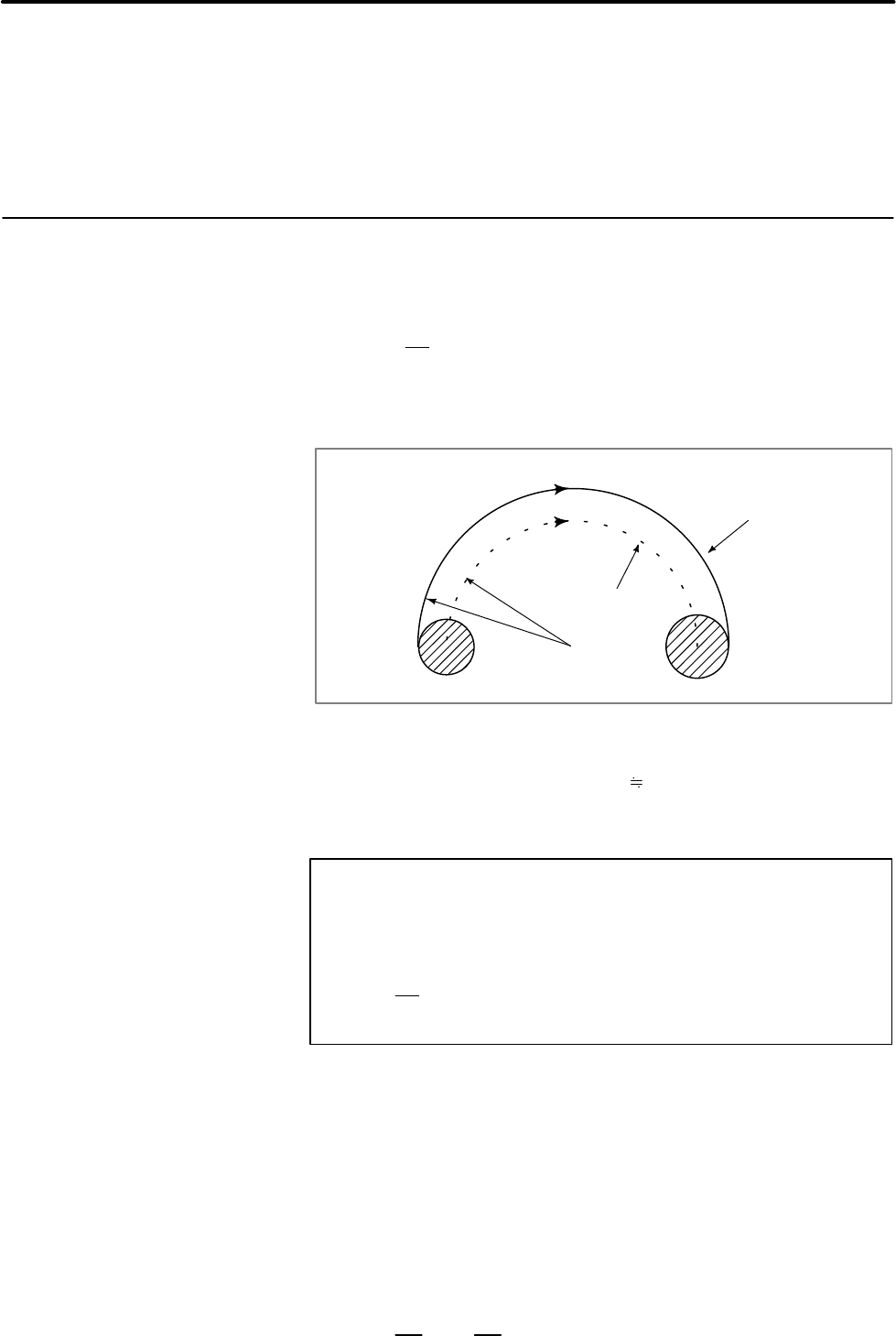

Fig. 5.4.3 Internal circular cutting feedrate change

If Rc is much smaller than Rp, Rc/Rp 0; the tool stops. A minimum

deceleration ratio (MDR) is to be specified with parameter No. 213. When

Rc/RpxMDR, the feedrate of the tool is (F MDR).

NOTE

When internal circular cutting must be performed together

with automatic override for inner corners, the feedrate of the

tool is as follows:

(automatic override for the inner corners)

(feedrate override)

Override value

5.4.3

Internal Circular

Cutting Feedrate

Change
